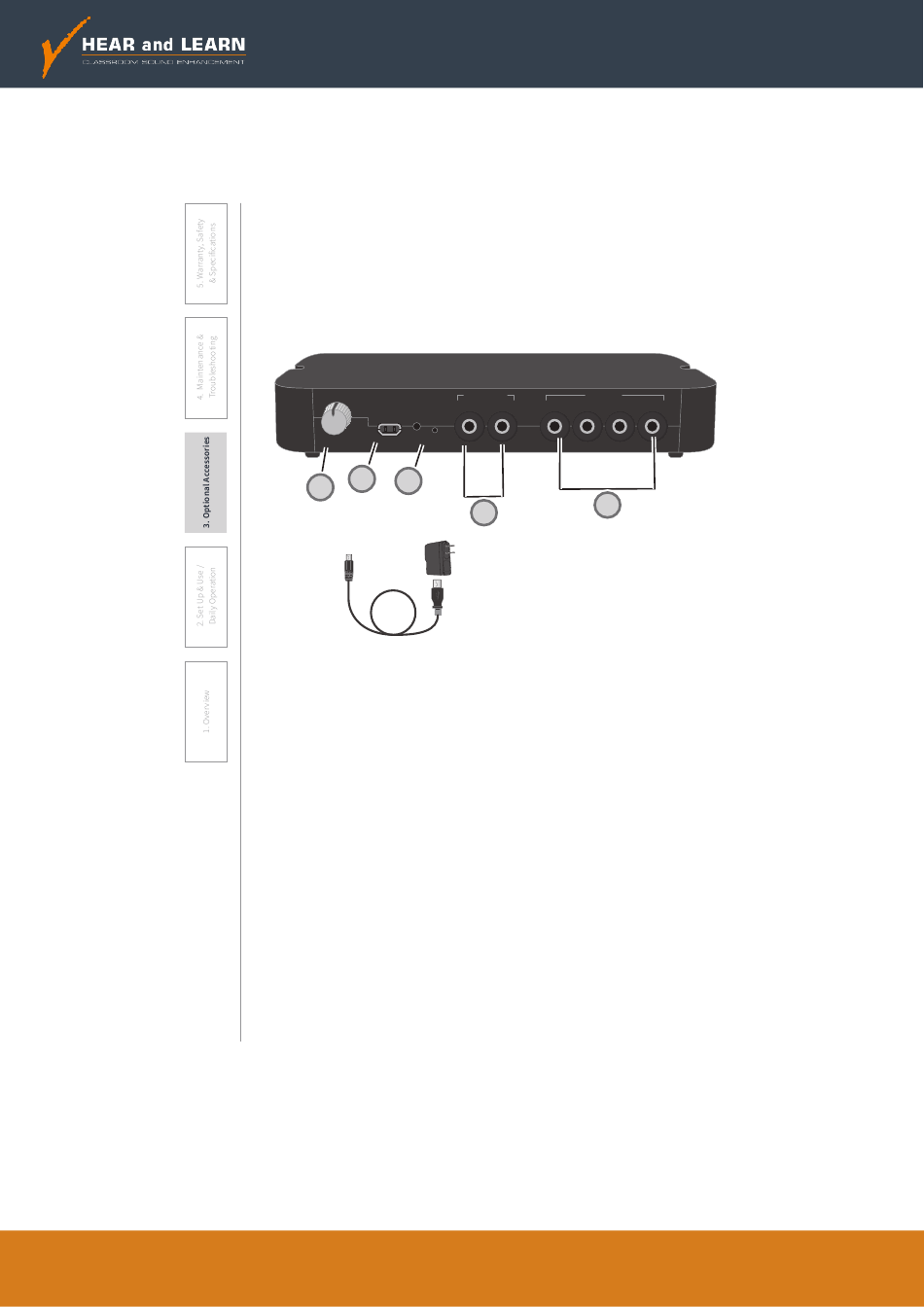

MEDIA CONNECTOR CONTROLS
AND CONNECTIONS
TONE
TREBLE BASS
2
1
1. TONE CONTROL: Adjusts the audio
tone, adding more bass or treble for
a more rich or crisp sound.
2. USB POWER INPUT: Plug the micro
USB end of the power cable into this
USB port.
3. REGISTRATION PUSHBUTTON &
LIGHT: Pushing the registration
button in conjunction with
the registration button on the
Redcat will cause the two units to
synchronize as an operating system.
The registration light stops blinking
and the link light is solid when a
link is established. This is used
when adding or replacing a Media
Connector.
44
Redcat Access is part of the
Offices Australia wide (03)93709355
CONT'D
AUDIO OUT
1
2
USB POWER
REGISTER
5V/1.5A
3
4
2
USB power adaptor and cable
4. TWO AUDIO OUTPUTS: 3.5mm
stereo jacks send audio signal
to external equipment such as a
recorder or an assistive listening
device.
5. FOUR AUDIO INPUTS: Connect
standard audio devices to any of the
3.5mm stereo inputs.
