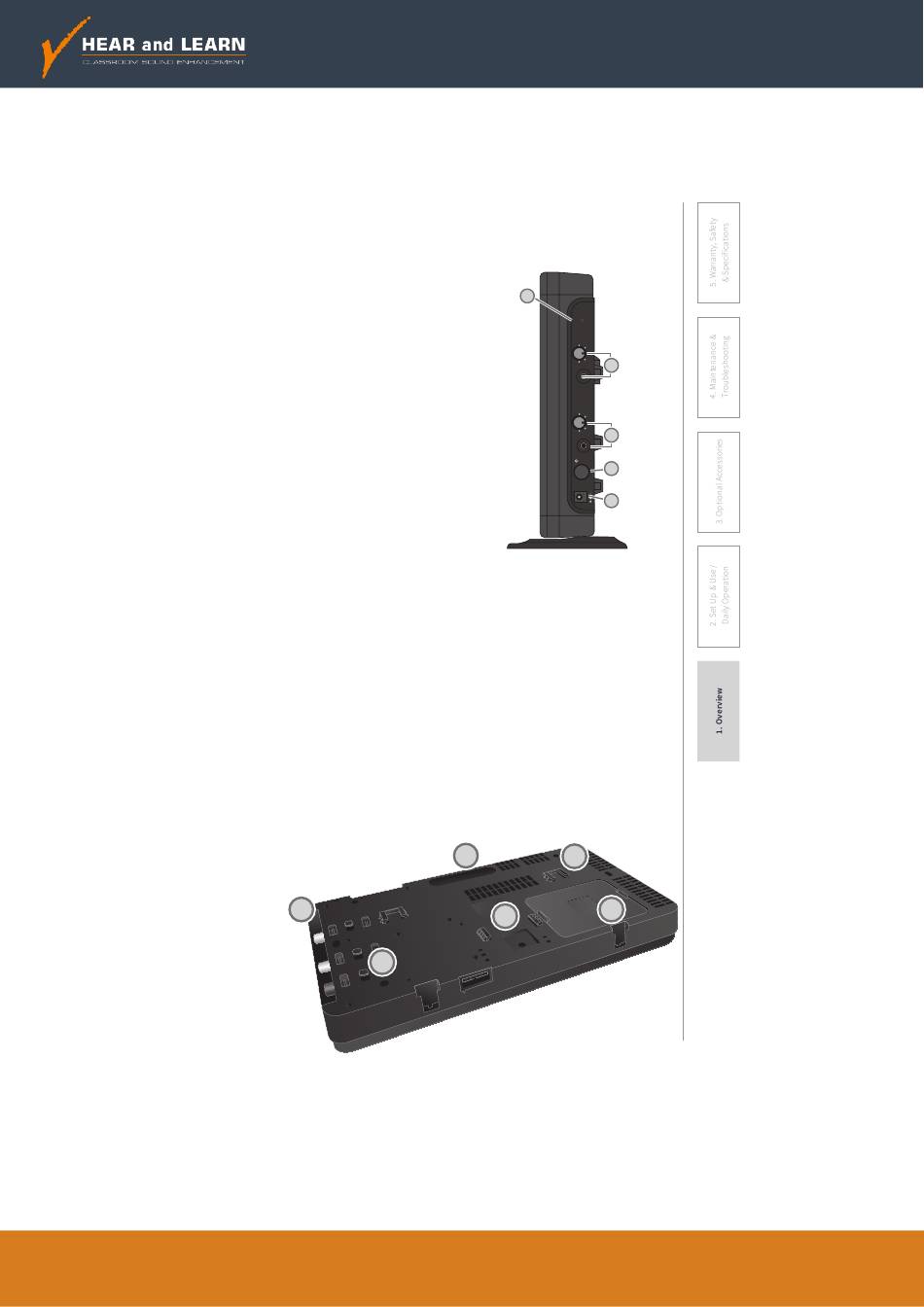

SIDE PANEL CONTROLS AND
CONNECTIONS
1. REGISTRATION: Press this button if
there is a new component, such as a
microphone, to be registered.
2.
AUDIO INPUT JACK & VOLUME
3.5mm stereo connector for
CONTROL:
connecting classroom audio sources
to the Redcat Access. Controls the
volume level of the audio input from
the connected audio source.
3.
AUDIO OUTPUT JACK & VOLUME
3.5mm stereo connector
CONTROL:
for connecting to an assisted listening
device (ALD) or to a computer for
recording. Controls the volume level
of the audio output.
4. This button is used
ON/OFF BUTTON:
to turn the Redcat Access on or off.
The front panel blue light will glow
when power is on.
5.
Plug the power supply
DC INPUT JACK:
(24V/1.75A) into this jack.
REAR PANEL FEATURES
CARRYING INSET: Cutaway grip for moving or carrying the
1.
Redcat Access.
2. CABLE MANAGEMENT AND STRAIN RELIEF
3. WALL MOUNTING SLOTS
4. SECURITY BRACKET SLOT
5. SYSTEM ID LABEL
6. COMPARTMENT FOR OPTIONAL
BATTERY PACK
