Lightspeed Redcat media User Manual

Classroom audio system
Hide thumbs Also See for Redcat media:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Classroom Audio System
U s e r M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Redcat media and is the answer not in the manual?

Questions and answers

Related Manuals for Lightspeed Redcat media

Summary of Contents for Lightspeed Redcat media

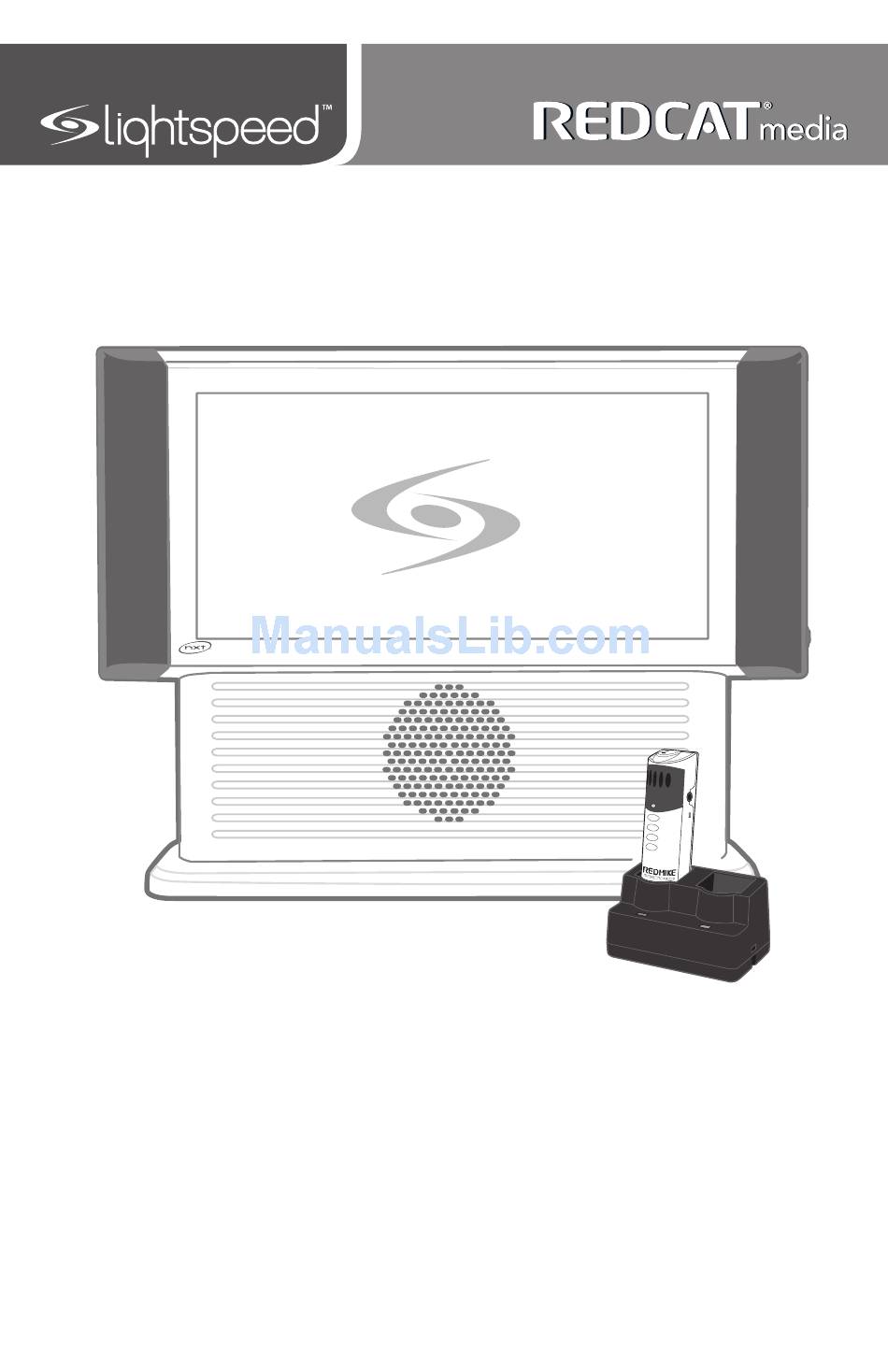

  • Page 1 Classroom Audio System U s e r M a n u a l...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1: System Components and Unpacking Overview Optional Components Side Panel Controls and Connections Rear Panel Controls and Connections REDMIKE Controls and Connections Cradle Charger Controls and Connections SECTION 2: Step 1. Determine Set-up Location Set-up & Use 1A. To Set-Up on Table Top 1B. To Set-Up Mounted on a Wall Step 2.

  • Page 4: Overview

    SECTION 1: OVERVIEW SYSTEM COMPONENTS AND UNPACKING The standard configuration of the REDCAT® Media will contain: REDCAT® Media Infrared Receiver/Amplifier with Table Stand and Power Supply Charging Cradle and Power Supply REDMIKE® Classroom Microphone...
  • Page 5 OPTIONAL COMPONENTS Optional equipment which may be part of your REDCAT Media system: REDMIKE® VC Volume Control Microphone REDMIKE® Share Handheld Mic & Charger Cable LT-71 LT-71 LightMic and Charger Cable Standard Accessories RX-RCM REDCAT Media all-in-one system PS-24V-2.5 24V/2.5A power supply for REDCAT Media...
  • Page 6 (ALD). 7. ALD OUT: 3.5mm outputs to an ALD or recording device. 8. POWER SWITCH: Turns the REDCAT Media ON or OFF. The LED indicator will glow red when the system is on.
  • Page 7 7. JACKS FOR TESTING PURPOSES power supply (24V/2.5A) into this ONLY: These connections are only jack. for use at the Lightspeed factory for test and diagnostics. 4. COMPUTER AUDIO INPUT: Plug a 3.5mm cable from a computer to this jack to play all computer audio through the REDCAT Media.
  • Page 8 The (CH A/B): This switch allows battery should only be replaced for selection between Channel by a Lightspeed AA rechargeable A or B. If you are using a single sensing battery (part # BA- microphone, we recommend using NH2A27).
  • Page 9 LT-71 or the REDMIKE is sensed, (REDMIKE Yellow Share microphones here. Protective Tab may not have been completely removed—see page 5, item 4.) A blinking Green LED means a non- Lightspeed battery has been installed (possibly an alkaline battery).

  • Page 10: Section 2

    SECTION 2: SET-UP & USE 1. DETERMINE SET-UP LOCATION The REDCAT Media is shipped with a table stand connected and ready for use. Alternatively, the table stand can be used as the wall mount bracket. Advantages of either include: Tabletop (recommended): Wall-mount: •...
  • Page 11 7 feet of an electrical outlet and next to the teacher. Avoid placing the about 6-8 feet off the ground. REDCAT Media on any wall close to where the teacher usually stands to Next, find a location as far away as instruct the class.
  • Page 12 1B. TO SET-UP MOUNTED ON A WALL CONT’D 1. Grip the bottom of the REDCAT Media where it meets the base. 2. Slide REDCAT Media off the base clearing the three guides, then lift clear. 3. Ensure proper orientation of the...
  • Page 13 6. Attach the bracket to the wall using the mounting screws and drywall anchors (if required). 7. Holding the REDCAT Media firmly by the bottom quarter, slide the REDCAT Media onto the wall bracket as illustrated below.
  • Page 14 2. AUDIO INTEGRATION The next step in setting up your REDCAT Media system is to connect it to the other elements of your audio system. Audio systems have varying elements – you may have a computer, television, DVD/VCR player, a visual projection system or other devices.
  • Page 15 Computer or DVD/VCR input jack on the bottom of the REDCAT Media. 3. With both the REDCAT Media and audio source power on, adjust the corresponding volume control until the desired level is achieved.

  • Page 16: Connecting The Power Supply

    AC power cord. Connect the AC power cord into the DC power supply. 2. Place the power supply into the REDCAT Media base as shown. If desired, remove the plastic cover of the included Velcro strip and attach the supply to the Velcro for a more secure fit.

  • Page 17: Charging The Redmike

    REDMIKE incorporates alkaline protection into the microphone design. Always use a Lightspeed rechargeable sensing battery. Replacement AA NiMH batteries may only be purchased through Lightspeed Technologies (part # BA-NH2A27). Do not attempt to charge alkaline batteries. They can overheat and expand creating a significant hazard and damaging the microphone (this is not covered by warranty).

  • Page 18: Operating The Redmike

    2-3 feet (if there is, The red IR LED (CH. A or CH. B) turn the volume down slightly). on the REDCAT Media will light to indicate a signal is being received. REMEMBER: This equipment 3. Slip the REDMIKE with lanyard supplements the user’s voice so they...
  • Page 19 REDCAT Media. 4. When the page is over, the audio from the REDCAT Media returns to normal volume level. (For full installation details refer to the install sheet included with the optional PageFirst sensor clip)
  • Page 20 REDCAT Media. many manufacturers’ products 5. With the REDCAT Media and differ in connector size and shape. ALD turned on, speak into the The Lightspeed LES-370 Personal REDMIKE and slowly adjust the FM System requires a 3.5mm to...
  • Page 21 To determine which REDMIKE is set to Channel B, you can look at the switch on the back of the mike or speak into one of the mics and watch which set of LED’s glow on the front panel of the REDCAT Media (A Volume or B Volume correspond to Channels A or B).

  • Page 22: Optional Accessories

    Channel A. The battery should only be 7. VOLUME CONTROLS (UP - replaced by a Lightspeed AA DOWN) rechargeable sensing battery (part # BA-NH2A27). 8. CHARGER CONTACTS (+ -): These contacts interface with the 4.
  • Page 23 REDMIKE to setup the REDMIKE VC. NOTE: A nominal volume level must be set on the REDCAT Media before adjusting controls on the REDMIKE VC. The teacher can now use the controls on the REDMIKE VC to adjust the volume level from anywhere in the room.
  • Page 24 OPTIONAL LT-71: Controls and Connections LT-71 LT-71 1. ON/OFF/MUTE Switch 5. AUXILIARY (AUX): Plug a laptop, MP3 player or other audio source 2. CHANNEL SELECT SWITCH (CH into this jack to wirelessly transmit A/B): Use this to choose Channel the audio signal to be played A or B.
  • Page 25 LT-71: Charging 1. Ensure that the LT-71 is turned OFF. 2. Make sure the cradle charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGER on the side of the LT-71 and plug the other end into the charging jack on the rear of the REDMIKE cradle charger.
  • Page 26 LT-71: Initial Set-up Once the LT-71 is charged, follow these steps to set it up for use. 1. Turn the REDCAT Media power switch to the ON position. The RED LED on the switch will glow. 2. Turn on the LT-71 and set the operating channel to “B”.
  • Page 27 REDMIKE Share: Controls and Connections 1. POWER SWITCH: 2. POWER/CHARGE INDICATOR: this light glows blue when turned on and turns off to indicate low battery level. When charging, the light glows red. 3. AUDIO INPUT: plug a laptop, MP3 player or other audio device into this jack to wirelessly transmit the audio signal to be played through the system.
  • Page 28 REDMIKE Share: Charging 1. Ensure that the REDMIKE Share is 3. Plug the other end into the turned OFF. charging jack on the rear of the cradle charger. 2. Make sure the cradle charger is plugged into a wall outlet. 4.
  • Page 29 REDMIKE Share: Initial Set-up 1. Ensure the REDCAT Media is ON. The red LED on the power button will glow. 2. Turn on the REDMIKE Share by sliding the switch to the top position. 3. Grip the barrel in the center section.
  • Page 30 DVD players) adjust the volume at the iRMC. 3. If the first two options do not give optimum volume level, the last place to adjust the volume is the CH. B Volume on the classroom audio system (REDCAT Media or other).
  • Page 31 OPTIONAL IR MEDIA CONNECTOR AUDIO INTEGRATION The iRMC is designed to integrate with the REDCAT Media and multiple audio sources, allowing other instructional technologies to be clearly heard throughout the classroom. Video In Projector Projector Teacher’s Microphone Audio Out VGA Out...

  • Page 32: Troubleshooting

    71/REDMIKE Share is operating on powered on. the same channel. If you review these instructions and still have questions, write down the serial number and model number of your system and call Lightspeed Technical Services at 800.732.8999, 5 a.m. – 5 p.m., PST.
  • Page 33 TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE • Speak in a natural voice. A normal conversational speech level will provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate amplification (approximately 5 – 10 dB) above ambient room noises.

  • Page 34: Warranty

    1. Warranty on infrared microphones is FIVE (5) YEARS. 2. Warranty on Lightspeed NiMH rechargeable batteries is one (1) year. 3. Prepaid shipping label provided by Lightspeed for warranty repairs within the U.S. Customers outside the U.S. should refer to the Lightspeed website (www.

  • Page 35: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 11. Only use attachments/ accessories specified by the Keep these instructions. manufacturer. Heed all warnings. 12. Use only with a cart, Follow all instructions. stand, tripod, bracket or table specified by the Do not use the apparatus manufacturer, or sold with near water.
  • Page 36 European Union Directives: 89/336/EEC, 92/31/EEC, 93/68/ EED, and 2004/108/EC Electromagnetic Compatibility Directives. Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC on Waste Electrical and Electronic Equipment (“WEEE Directive”). Please visit our website at www.Lightspeed-tek.com for more...
  • Page 37 SYSTEM SPECIFICATIONS OVERALL SPECIFICATIONS Power Output 25 Watts Total Amplifier Frequency Response 60 Hz to 18 kHz -10 dB Signal-to-Noise Ratio > 73 dB Overall Dimensions (W x D x H) 14” x 22.25” x 3” Table Stand Footprint (W x D) 18.9”...
  • Page 40 LIGHTSPEE D TECHN OL OGIE S 1 1509 SW HERMAN RO AD / T U AL AT I N , OR 970 62 TOLL FRE E: 800.732. 89 99 / P H O NE: 5 03. 6 84. 55 38 / FAX: 5 03 .6 8 4.3 19 7 LIGHTS PEED-TEK .C OM MN0237US01-4...
