Lightspeed Redcat User Manual

Classroom audio system
Hide thumbs Also See for Redcat:
Table of Contents

Advertisement

Quick Links

Download this manual
Classroom Audio System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Redcat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lightspeed Redcat

Summary of Contents for Lightspeed Redcat

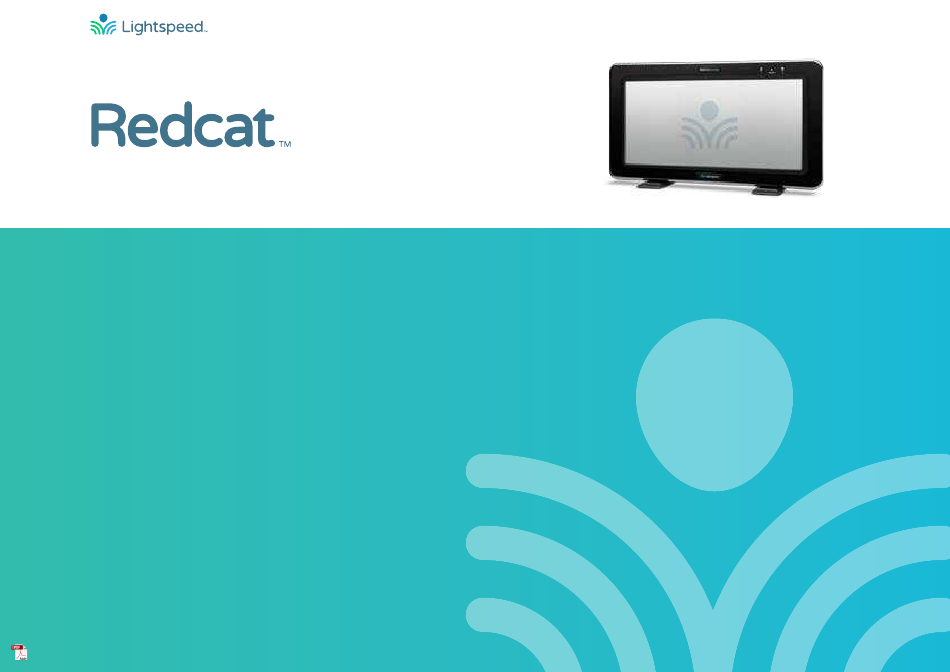

  • Page 1 Classroom Audio System User Manual...

  • Page 2: Table Of Contents

    Using Flexmike as Wireless Audio Link OPTIONAL ACCESSORIES Sharemike Controls and Connections Sharemike: Charging Sharemike: Initial Set-Up Media Connector Controls and Indicators Using The Media Connector Audio Integration with Media Connector Activate System with Pods for Small Group Instruction Battery Pack for Redcat...

  • Page 3: Overview

    OVERVIEW Important Safety Instructions 1. Do not use the apparatus near water. 8. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such 2. Clean only with dry cloth. as power-supply cord or plug is damaged, liquid has been spilled 3.
  • Page 4 Important Safety Instructions (cont.) To avoid potential equipment damage and/or serious injury, READ AND FOLLOW The lightning flash with arrowhead symbol all safety precautions when installing the TOPCAT. WARNINGS are included within an equilateral triangle is intended to throughout the procedural steps in this guide, and are repeated below for alert the user to the presence of uninsulated emphasis.

  • Page 5: System Components And Unpacking

    Supply PLEASE NOTE: Redcat and any wireless components (microphones, Activate Station, Media Connector, Pods) are paired together at the factory. Please keep all components together as a system. Moving them from one system or room to another will result in the need to re-pair them to function.

  • Page 6: Optional Accessories

    Optional Accessories Power Status Media Connector Push Audio Audio Tone Level Input Output Media Connector Sharemike Redcat Battery Pack FCC ID:ORV-LSMCN FCC ID:ORV-LSSMN with power adaptor and cable Handheld Microphone Power Link Activate Input Output Wall Mounting Security Bracket Activate System...

  • Page 7: Controls And Connections

    Controls and Connections FRONT PANEL STATUS LIGHT: Microphone link and pair indicators Solid white: Audio link has been established Solid blue: Indicates fixed part mode Alternating blue/white: Registration in process Solid white: Indicates portable part mode Off: Unregistered or nothing linked POWER LIGHT Solid white: Indicates power on REAR PANEL...
  • Page 8 Side Panel Controls and Connections POWER BUTTON / VOLUME ADJUSTMENT: Press this button to turn the system power on or off. This also functions as an adjustment knob for the volume and tone depending on the mode selected (see 5,6,7 below). TONE SELECTOR: Selects Tone as the mode for the adjustment knob (1) for the microphone.

  • Page 9: Flexmike Controls And Connections

    Flexmike Controls and Connections POWER/MUTE SWITCH: Press and hold to power on, press to mute, press and hold to power off. Blue light indicates mute, white light indicates talk. MIC 1 STATUS: Lighted to indicate microphone is registered as MIC 1 Solid white: Normal operation Flashing white: Linking in progress MIC 2 STATUS: When using a second microphone, this LED is lighted to...
  • Page 10 Flexmike/Sharemike Cradle Charger DC POWER PORT: Connect the 5V/1.0A DC power cord here.

  • Page 11: Set-Up & Use / Operation

    SET-UP & USE / OPERATION Determine Set-Up Location The Redcat is shipped with feet to stand on a cabinet or tabletop. Alternatively, the fee can be used as wall mount brackets. TABLETOP (RECOMMENDED) WALL-MOUNT • Virtually no setup time • More permanent setup • Greater flexibility to move to different locations...
  • Page 12 B. MOUNTED ON A WALL AVOID! First, consider that the Redcat should be placed within 7 feet of an electrical outlet and about 6-8 feet off the ground. Next, find a location as far away as possible from the teacher who will be using the mic.
  • Page 13 Use the slot on the end of the bracket to hold the power cord in place TOP VIEW CABLE MANAGEMENT • Use the tabs on the back of the Redcat for cable management and strain relief STRAIN RELIEF TABS...
  • Page 14 • Continue with “Attach Redcat and power supply” steps. • After the Redcat is in place, hold the top of the Redcat and push the security bracket into the slot until you hear it ‘click’ in place.

  • Page 15: Connecting The Power Supply

    • Locate the power supply and AC power cord. Connect the AC power cord into the DC power supply. • Insert the DC connector into the “Power” on the Redcat and plug the other end to an electrical outlet. • The Redcat automatically powers on and the blue Power light on the front Push panel will appear.

  • Page 16: Audio Integration

    TV, DVD or computer directly into the Redcat. AUDIO INPUT The Redcat has one AUDIO INPUT with volume control for connecting to classroom audio sources. Use a patch cable (not included) to connect a computer, iPod, iPad, or other audio source.

  • Page 17: Charging The Flexmike

    Replacement lithium polymer battery packs may only be purchased through Lightspeed Technologies (part # 77-L3.7V-A). Do not attempt to charge with other battery packs. They can overheat and expand creating a significant hazard and damaging the microphone (this is not covered by warranty).

  • Page 18: Operating The Flexmike

    DAILY OPERATION Operating the Flexmike AT THE START OF THE DAY, REMOVE FLEMIKE FROM THE CHARGER • The microphone will default to the Mute position, the status light will turn to white. • Place the microphone around your neck. ALIGN WITH COLLARBONE • Press the power/mute button.

  • Page 19: Output To Assistive Listening Device (Ald)

    3.5mm audio jack labeled “ALD OUT” on the side of the Redcat. Input With the Redcat and ALD turned on, speak into the Flexmike and slowly adjust the ALD volume control until the appropriate audio level is attained in the ALD’s receiver headphones.

  • Page 20: Using Flexmike As Wireless Audio Link

    Plug your external audio video conferencing, audiobooks, music, etc) equipment, such as a computer, 2-WAY USB can be played through the Redcat system and into the USB input on the speakers. bottom of the Flexmike SEND AUDIO TO THE COMPUTER from Redcat to ensure the teacher’s Flexmike and any...
  • Page 21 • The Flexmike will stay powered on during charging, but will automatically be muted. • It is not necessary to turn off Redcat at end of day, but you may do so by pressing the power button on the front panel.

  • Page 22: Optional Accessories

    OPTIONAL ACCESSORIES Sharemike Controls and Connections POWER BUTTON NORMAL OPERATION CHARGING IN PROGRESS POWER STATUS LIGHT Solid red: During operation, turns red to indicate low battery CHARGING COMPLETE Solid white: Normal operation NORMAL OPERATION When charging in Cradle Charger: LINKING IN PROGRESS (FLASHING) Solid red: Charging Solid green: Charging complete TALK...

  • Page 23: Sharemike: Charging

    Sharemike: Charging Make sure the charger is plugged into a wall outlet. Connect one end of the charging cable into the jack labeled CHARGE on the bottom of the Sharemike. Plug the other end into the USB-C jack on the back of the cradle charger.

  • Page 24: Sharemike: Initial Set-Up

    Sharemike: Initial Set-Up ENSURE THE REDCAT IS POWERED ON • The power light on the Redcat will be solid white. TURN ON THE SHAREMIKE • Press and hold the power button until the LED lights. • While speaking in a normal voice, increase the volume using the...

  • Page 25: Media Connector Controls And Indicators

    Media Connector Controls and Indicators FRONT PANEL POWER LIGHT AUDIO INPUT VOLUME SELECTOR: Selects Volume as the White light: Power on mode for the adjustment knob (2) for the audio sources connected to the audio inputs on the back of the Media POWER BUTTON / VOLUME ADJUSTMENT: Press this button Connector.
  • Page 26 Media Connector Controls and Indicators (Optional) BACK PANEL AUDIO INPUTS: 3.5mm stereo connectors for connecting classroom audio sources to be played through audio system. AUDIO OUTPUTS: 3.5mm stereo connectors for connecting to an assisted listening device (ALD) or to a computer for recording. USB INPUT: Plug the USB-C end of the power cable into this USB port on the Media Connector.

  • Page 27: Using The Media Connector

    Use the AUDIO IN volume control on the front of the Media Connector to increase or decrease the audio source sound level. NOTE: When Media Connector is powered on and registered to Redcat, only its microphone volume and tone controls are operational while those on the Redcat are not.

  • Page 28: Audio Integration With Media Connector

    Audio Integration with Media Connector The Media Connector is designed to integrate multiple audio sources quickly and easily. Video In PROJECTOR VGA Out Audio Out Access Technology LAPTOP REDCAT TEACHER’S FLEXMIKE Access Technology Audio In Video Out Audio Out Power Status...

  • Page 29: Activate System With Pods For Small Group Instruction

    • Reinforce and redirect group activities • Capture audio and video of student groups or of individual speaker If your Redcat system was configured with Activate pods, please refer to the Activate System user guide for operation and setup instructions.

  • Page 30: Battery Pack For Redcat

    POWER light will glow blue. USING REDCAT WITH BATTERY PACK When Redcat is in use with the battery pack, the POWER light will blink red if battery is low. Charge battery pack by plugging Redcat into the 24V / 1.75A power supply.

  • Page 31: Maintenance & Troubleshooting

    MAINTENANCE & TROUBLESHOOTING Flexmike Battery Replacement BATTERY PART # 77-L3.7V Push down on the latch and carefully pull the battery pack away from the Flexmike. Insert new battery pack as shown and make sure the latch is secure. Place the Flexmike in a cradle charger to charge the battery pack.

  • Page 32: Sharemike Battery Replacement

    Place the Flexmike in a cradle charger to charge the battery pack. BATTERY REMOVAL LATCH Please dispose of all batteries properly. Lightspeed provides battery recycling at no charge. Contact us at 800-732-8999 for details. Available in U.S. only. Customers outside the U.S. should contact their local reseller.

  • Page 33: Redcat Battery Replacement

    Redcat Battery Replacement BATTERY PART # L14V Find and remove the battery pack on the back of the Redcat by pinching the tabs located on each side of the battery pack. Place the new battery pack into the compartment by pinching the tabs on either side of the battery pack and inserting it into the compartment.

  • Page 34: Troubleshooting

    If you review these instructions and still have questions, call Lightspeed • Confirm that the blue POWER light located on the front panel of the Redcat is on. Technical Services at 800.732.8999, 5 am – 5 pm, PST. Customers outside the • Confirm the microphone is powered on and linked to the Redcat.

  • Page 35: Warranty, Safety & Specifications

    (5) years, beginning at the date of the purchase invoice. If such malfunction occurs, the product will be repaired or replaced (at Lightspeed’s option) without charge during the warranty period.

  • Page 36: Safety Warnings And Certifications

    Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC USE A LIGHTSPEED SUPPLIED BATTERY ONLY on Waste Electrical and Electronic Equipment (“WEEE Directive”). Please visit our website at www. Lightspeed-tek.com for more information.
  • Page 37 EC Electromagnetic Compatibility (EMC) and 2006/95/ maintenance dans la documentation qui accompagne EC Low Voltage Directive (LVD). ce produit. Lightspeed Technologies a lancé un programme de recyclage de produits en Europe conformément à la directive de l’Union Européenne 2002/96/CE relative aux déchets d’équipements électriques et UTILISEZ UNIQUEMENT LA BATTERIE électroniques (directive «...
  • Page 38 FCC Notice to User French: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: NOTE IMPORTANTE: Pour se conformer au règles d’exposition des ondes RF par la This device may not cause harmful interference; and FCC, la (ou les) antenne(s) utilisée(s) par ce transmetteur doivent être installées de façon à...
  • Page 39 à assurer la sécurité de toutes les personnes, indépendamment de l’âge et de la santé. NOTE: Lightspeed is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
  • Page 40 Canada, Industry Canada (IC) Notices English This device complies with Industry Canada license exempt RSS standard(s). This Class B digital apparatus complies with Canadian ICES-003 and CAN ICES-3(B)/ NMB-3(B).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 41 WARRANTY, SAFETY & SPECIFICATIONS...

  • Page 42: System Components

    System Components STANDARD COMPONENTS Redcat all-in-one wireless audio base station 24V-1.75A-NA 24V/1.75A power supply for Redcat 5V-1.0 5V power supply for FMCC Flexmike classroom transceiver with battery pack and lanyard Flexmike lavaliere cord STANDARD COMPONENTS (outside U.S. and Canada) RCA-1881 Redcat all-in-one wireless audio base station 24V-2.5A-__...

  • Page 43: System Specifications

    System Specifications REDCAT SPEAKER Power: On/off switch Registration: Push button for registration with Redcat Power output: Dimensions (L x W x H): 2.9” x 1.1” x 1.0” (74 x 28 x 25mm) 120 Hz - 13 kHz Acoustic frequency Weight: 1.8 oz (51g)
  • Page 44 Access to powerful in-the-moment insights to the learning process. Our audio and video solutions improve student engagement, enable teachers to activate small groups, and encourage collaboration. 11509 SW HERMAN ROAD TUALATIN, OREGON 97062 TOLL FREE: 800.732.8999 PHONE: 503.684.5538 FAX: 503.684.3197 LIGHTSPEED-TEK.COM MN0513US01-7...
