Media Connector Controls and Indicators

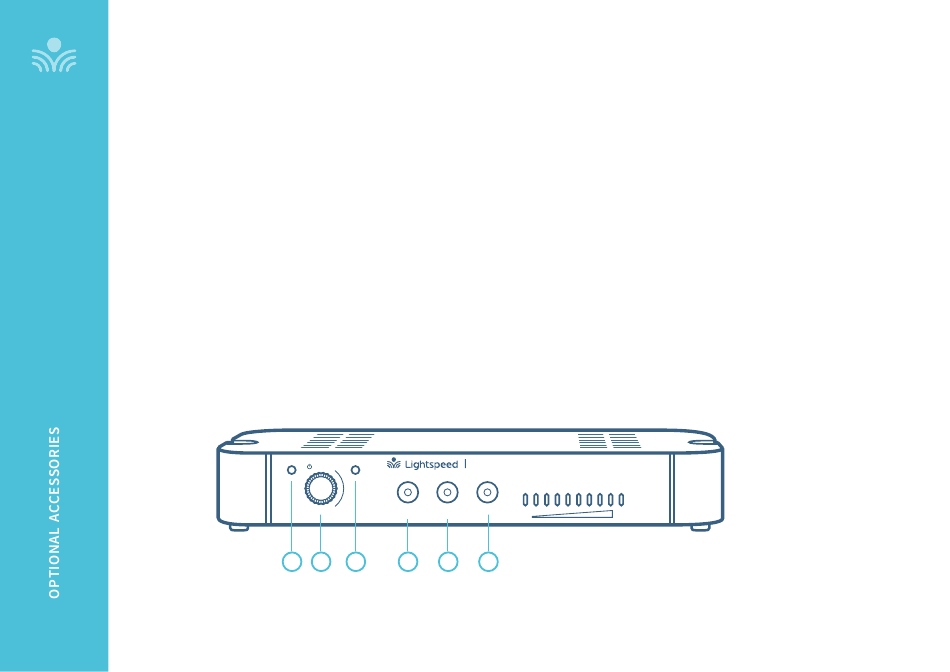

FRONT PANEL
1.
POWER LIGHT
White light: Power on
POWER BUTTON / VOLUME ADJUSTMENT: Press this button
2.
to turn the system power on or off. This also functions as an
adjustment knob for the volume and tone depending on the
mode selected (see 4, 5, 6 below).
3.
STATUS LIGHT: Microphone link and pair indicators.
Blue light: Microphone(s) is paired to the system
Off: Microphones are not paired to the system
21
Power
Status
Push
Audio
Audio
Level
Input
Output
1
2
3
4
5
4.
AUDIO INPUT VOLUME SELECTOR: Selects Volume as the
mode for the adjustment knob (2) for the audio sources
connected to the audio inputs on the back of the Media
Connector.
AUDIO OUTPUT VOLUME SELECTOR: Selects Volume as
5.
the mode for the adjustment knob (2) for the audio device
connected to the audio output jack on the back of the Media
Connector.
6.
TONE SELECTOR: Selects Tone as the mode for the
adjustment knob (2) for the microphone. This adjusts the
bass or treble that is heard through the classroom speaker.
Media
Media Connector
Connector
Tone
6
(Optional)
