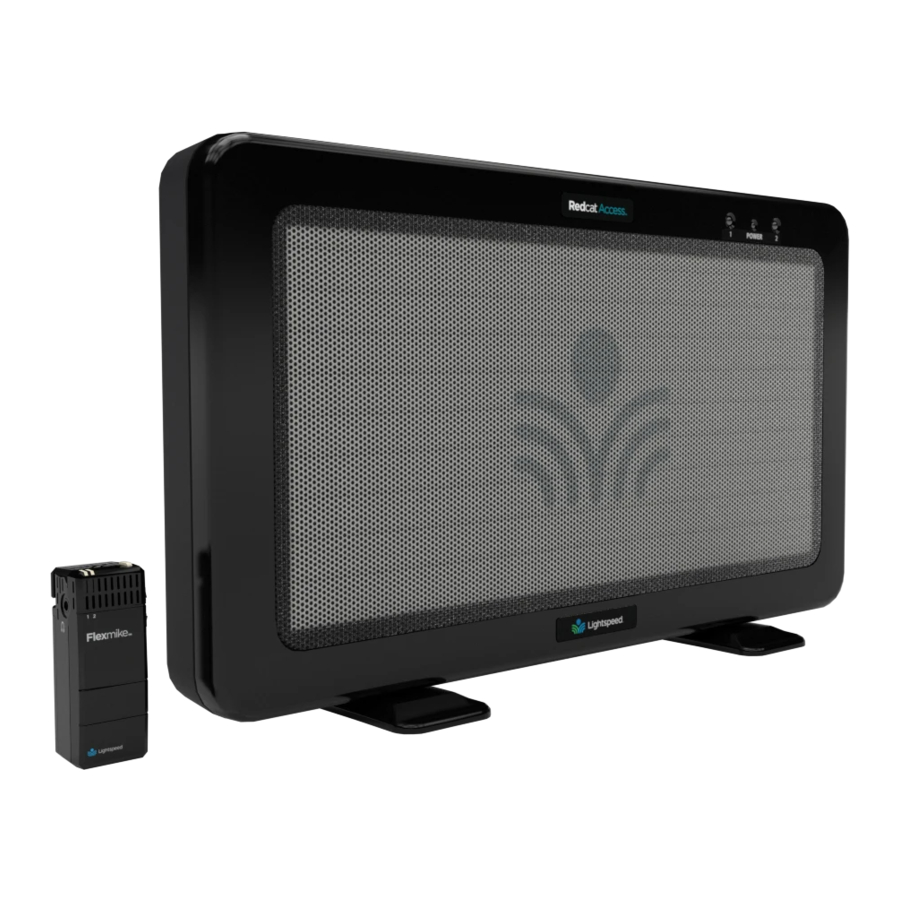

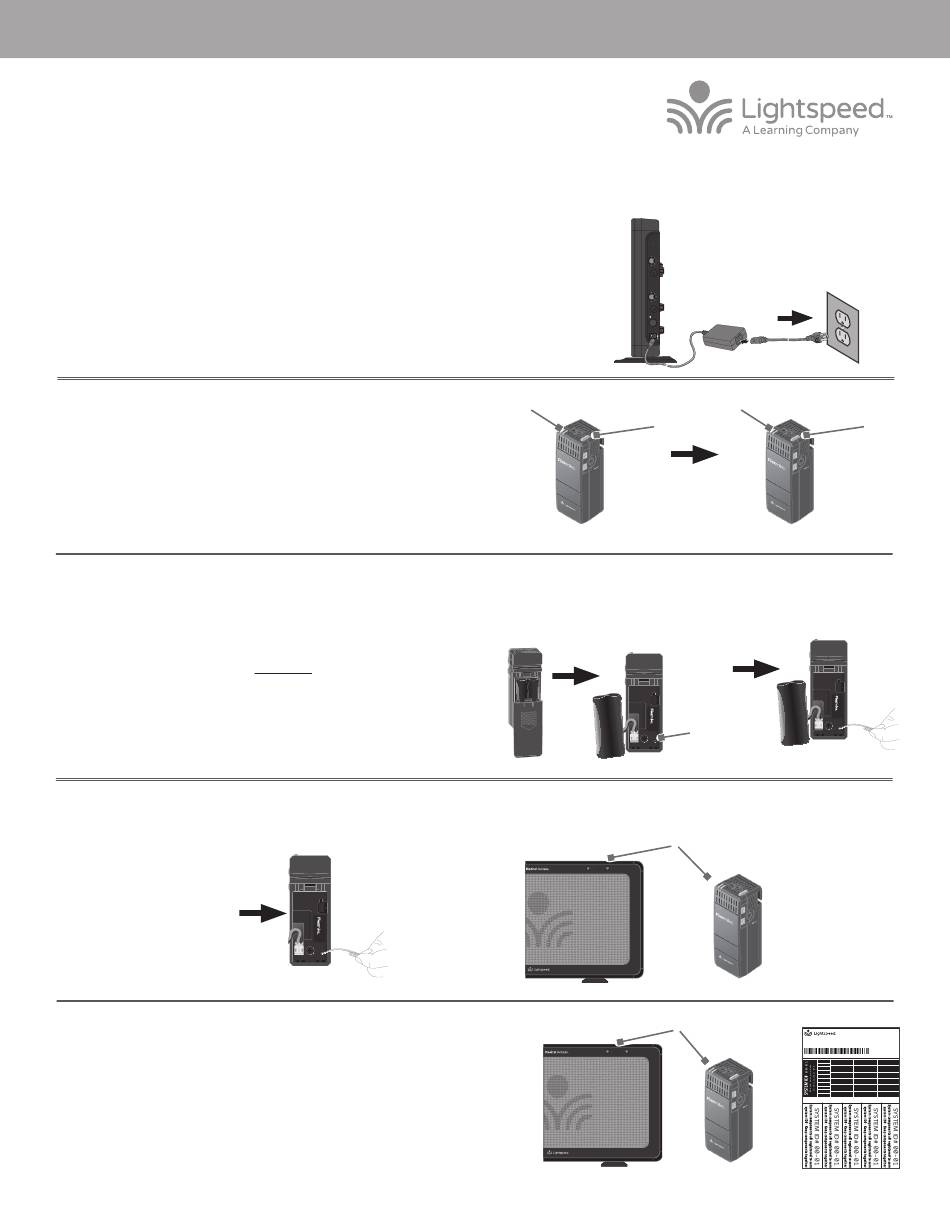

REDCAT ACCESS REGISTRATION GUIDE
STANDARD REGISTRATION
FLEXMIKE REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)
(Particularly valuable when Redcat Access is mounted on the wall)
For users adding a second Flexmike or replacing a lost or malfunctioning Flexmike.
1.
Start with the Redcat plugged in and powered on.
2.
If replacing a Flexmike, make sure the malfunctioning Flexmike is powered off.
3.
If a second Flexmike, Sharemike or Media Connector is present, power it on and wait until it
has a solid blue light ("Ready"). (For the purpose of these instructions, it is assumed that the
#1 Flexmike is the functioning Flexmike and we are registering the #2 Flexmike.)
4.
Power on the new Flexmike. Both microphone 1 and 2 blue lights should start
blinking.
5.
Open the new Flexmike battery compartment and pull the battery out (leaving it
plugged in) to reveal the registration button.
6.
Use another registered functional component (existing Flexmike, Sharemike or
Media Connector) to trigger the registration function in Redcat.
• Using a paperclip with the end straightened out, press and hold the registration
button for 3 seconds inside the functioning Flexmike. This triggers registration in
the Redcat and the Redcat's 1 and 2 amber lights will begin blinking.
• If using a registered Sharemike or Media Connector to trigger the registration
function, this process remains the same.
7.
Briefly press the registration button on the new or replacement Flexmike. The 1
and 2 blue lights will start blinking alternately.
8.
After several seconds, the 2 light on the Redcat will turn solid and the 2 light on the Flexmike will remain blinking, then turn solid.
9.
The registration is complete. You can begin speaking into the new Flexmike to verify there is audio.
10.
Place system ID number (attached to the Redcat Quickstart Guide) on the new
Flexmike.
NOTE: if at any point, the Redcat or Flexmike lights begin blinking rapidly, that
indicates a registration error. Turn the new Flexmike off and repeat steps 4-9.
REGISTER
AUDIO IN
MIN
MAX
AUDIO
(ALD) OUT
MIN
MAX
ON/OFF
DC INPUT
16V/2.0A
Solid light
Power On
(Existing Good Flexmike)
Blinking lights
1
POWER
2
Solid lights
1
POWER
2
Blinking lights
Power On
(NEW Flexmike)
Registration
Button
Registration ID Labels
Apply to system components to indicate which parts are registered
as a system. Keep registered items together when storing away.
334-0162-02-00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
RETAIN EXTRA LABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.
10101
00-01
00-01
00-01
00-01
00-01
00-01
