MEDIA CONNECTOR: OUTPUT TO ASSISTIVE
LISTENING DEVICE (ALD)
1. Turn the AUDIO OUT volume control
on the Media Connector front panel
all way the down.
2. Determine the size and type of audio
input jack on the device as many
manufacturers' products
differ in connector size and shape.
Most personal FM transmitters
require a 3.5mm to 3.5mm patch
cable (part# MSC3535).

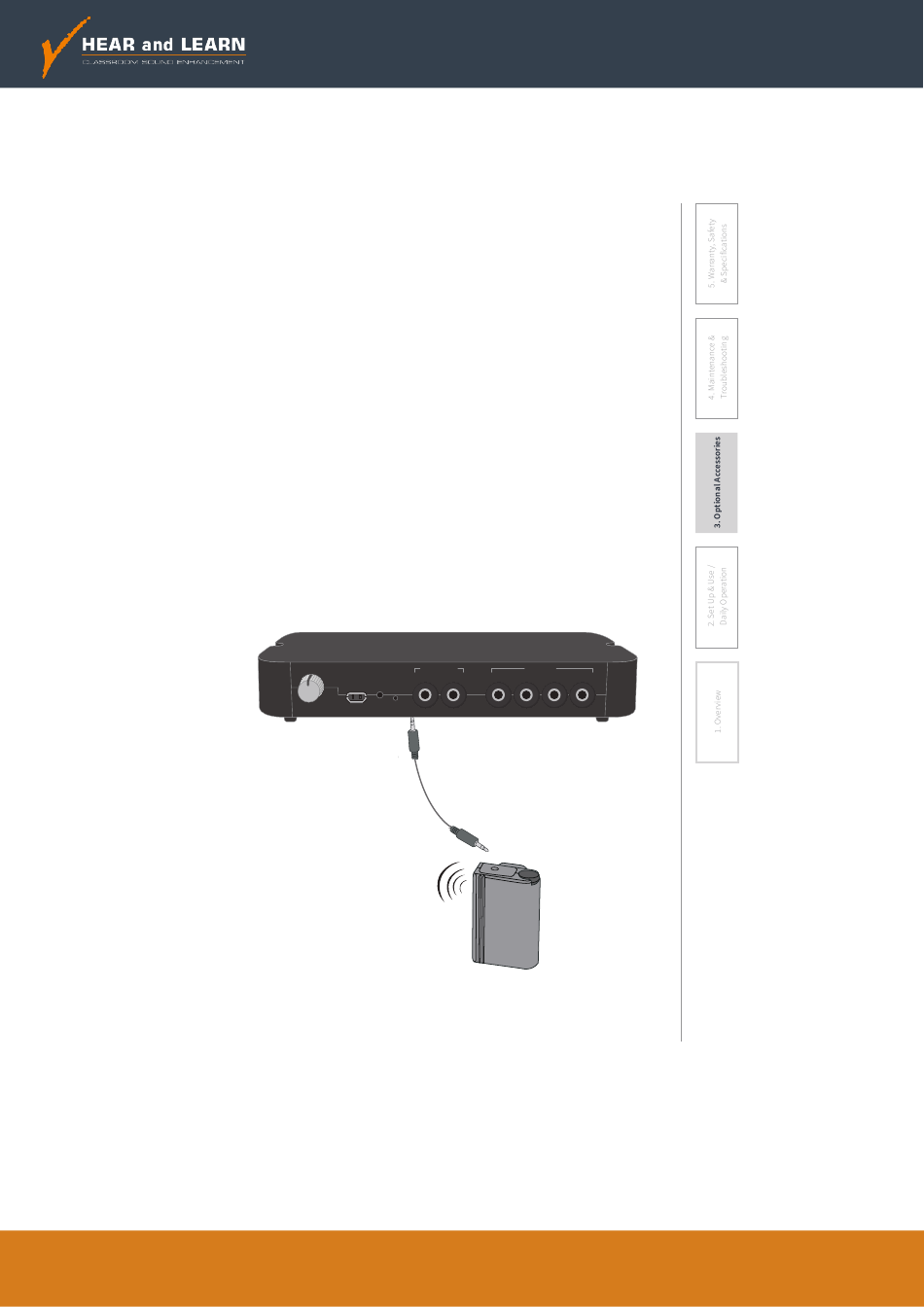

3. Connect a patch cable from the ALD's
microphone jack or AUX input to the
3.5mm audio jack labeled "AUDIO
OUT" on the back of the Media
Connector.
TONE
USB POWER
REGISTER
TREBLE BASS
5V/1.5A
www.hearandlearn.com.au
Redcat Access is part of the
Offices Australia wide (03)93709355
4. With the Redcat and ALD turned on,
speak into the Flexmike and slowly
adjust the AUDIO OUT
volume control on the Media
Connector until the appropriate
audio level is attained in the ALD's
receiver headphones.
5. It may be necessary to adjust the
volume on the Personal FM receiver
to achieve appropriate volume level.
AUDIO OUT AUDIO IN
1 2 1 2 3 4
ALD Transmitter
www.hearandlearn.com.au technology family.
