3 Components and Power Supply
• 2 wall anchors: [WHITE STRIATED WALL ANCHOR DIAM.8mm]
Warning
The screws must go into a wall stud (wood) or a wall anchor of the appropriate type for the wall. Screws
into drywall are not strong enough to mount the router.
Wall-Mounting Features on the Teldat K/KF router
Fig. 7:

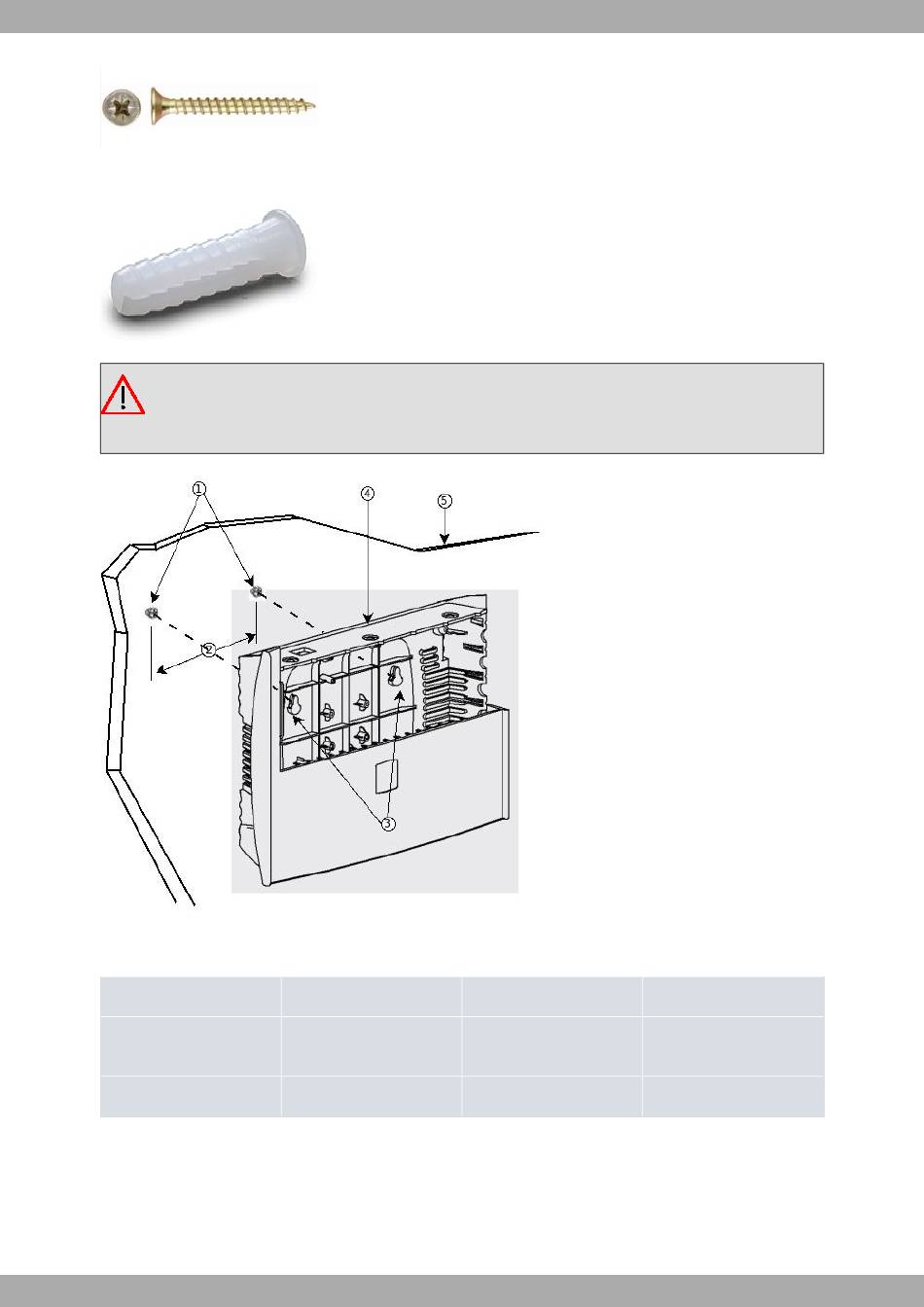

Figure 7 shows the wall-mounting features on the Teldat K/KF routers.
1
3
5
To mount the router on a wall or other surface, follow these steps:
Procedure
Step 1 Install the two screws (3.5x30) horizontally apart on a wall or any other vertical surface.
The screws should protrude 0.6 cm (0.25 inch) from the surface of the wall.
10
Wall screws
Chassis mounting holes (on
bottom)
Mounting surface
2
4
10.2 cm (4.02 inches)
Router chassis
Teldat K/KF router
