Remove the Cable Management Arm
Callout
1
2
b. Use your right hand to support the CMA and use your left thumb to push in
(toward the left) on the slide-rail latching bracket release tab labeled PUSH
(callout 2), and pull the latching bracket out of the left slide-rail and put it
aside [frames 3 and 4].

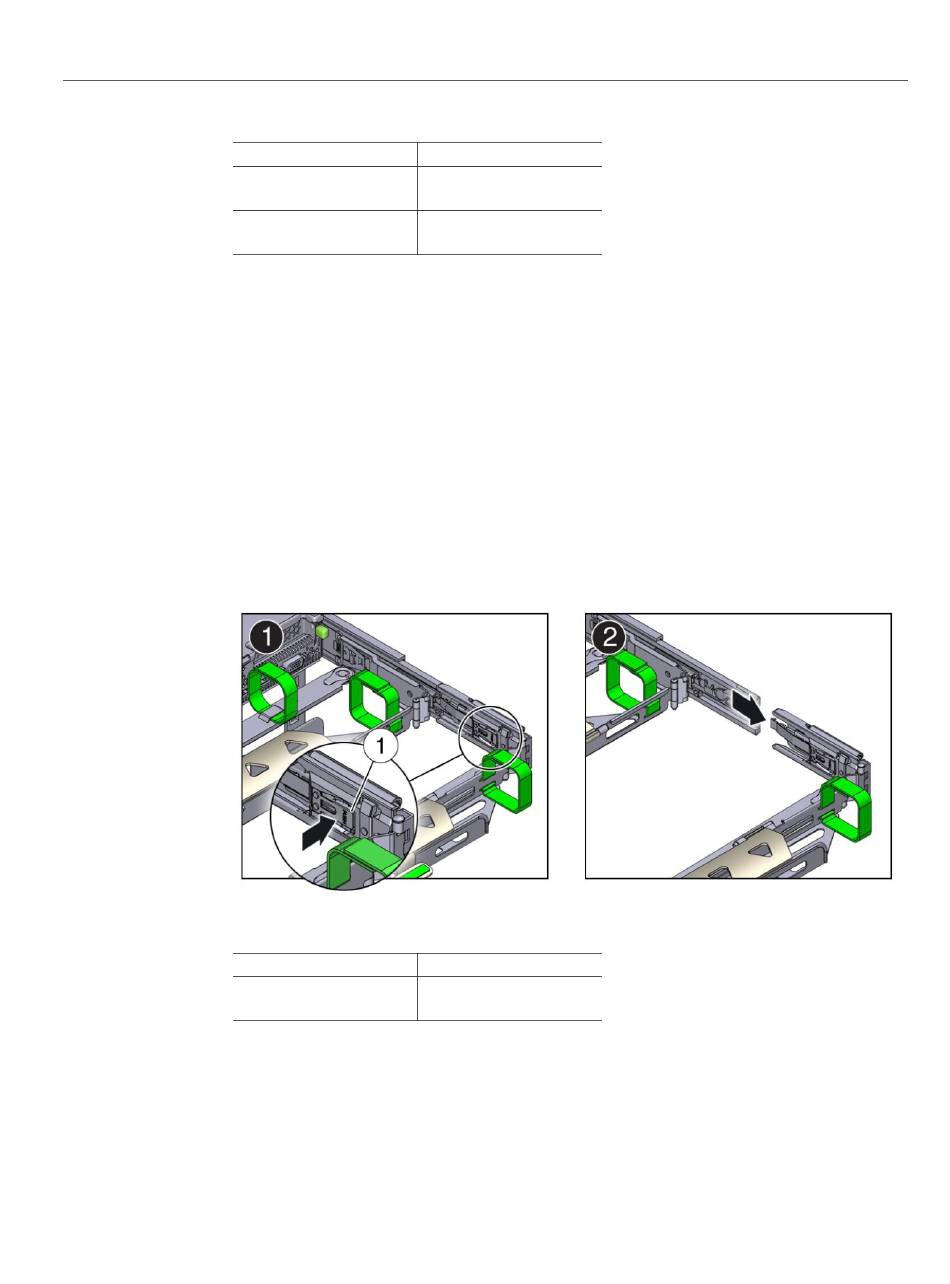

To disconnect connector C:
5.
a. Place your left arm under the CMA to support it.
b. Use your right thumb to push in (toward the right) on the connector C
release tab labeled PUSH (callout 1), and pull connector C out of the right
slide-rail [frame 1 and 2].
Callout
1
To disconnect connector B:
6.
68 Oracle Server X6-2 Installation Guide • July 2020
Description
Connector D release tab
(green)
Slide-rail latching bracket
release tab (labeled PUSH)
Description
Connector C release tab
(labeled PUSH)
