2.4.7 Starting VisualDSP++

In order to start debugging, you must set up a session in VisualDSP++.
1. Hold down the Control (CTRL) key.
2. Select the Start button on the Windows taskbar, and then choose Programs,
VisualDSP, VisualDSP++.
The Session List dialog box appears if you already have existing sessions. Skip to
step 4 if this is the first time running VisualDSP++.
3. Click on New Session.
4. The New Selection dialog will appear as shown in
5. In Debug Target, choose "EZ-KIT Lite (ADSP-21161N)".
6. Type a new target name in Session Name or accept the default name.
7. Click OK to return to the Session List. Highlight the new session and click
Activate.
ADSP-21161N EZ-KIT Lite Evaluation System Manual

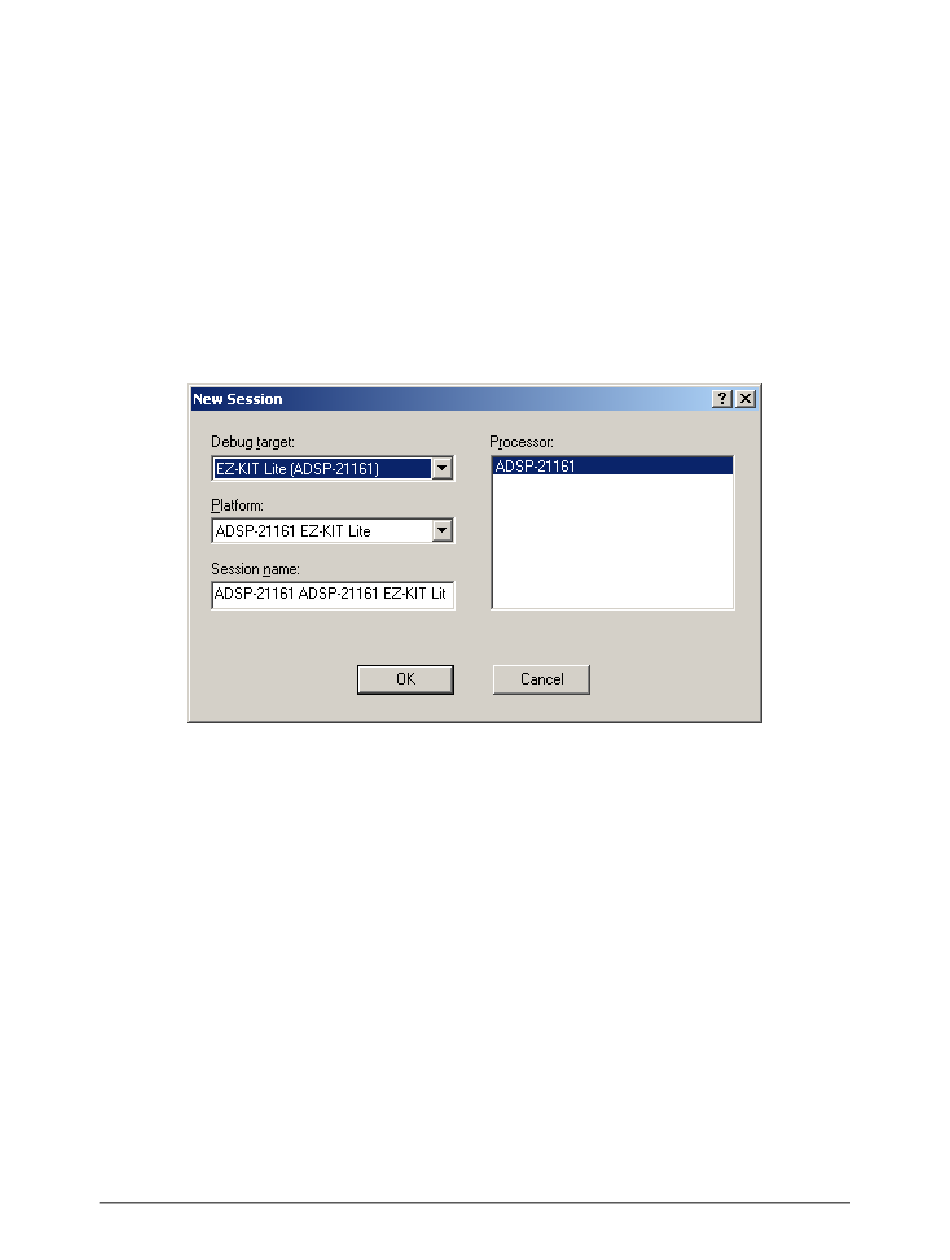

Figure 2-15: New Session Dialog Box

Figure 2-15.
