Installation Tasks

Starting VisualDSP++

In order to start debugging, you must first set up a debug session in Visu-
alDSP++. To set up a session:
1. Verify that the red USB monitor LED (CR7) is lit.
2. Hold down the Control (CTRL) key.
3. Click the Start button on the Windows taskbar, and then choose
Programs-->Analog Devices-->VisualDSP++ 3.5 for 16-bit Pro-
cessors-->VisualDSP++ Environment.
If you are running VisualDSP++ for the first time, go to step 4.
If you already have existing sessions, the Session List dialog box
appears on the screen.
4. Click New Session.
5. The New Session dialog box, similar to

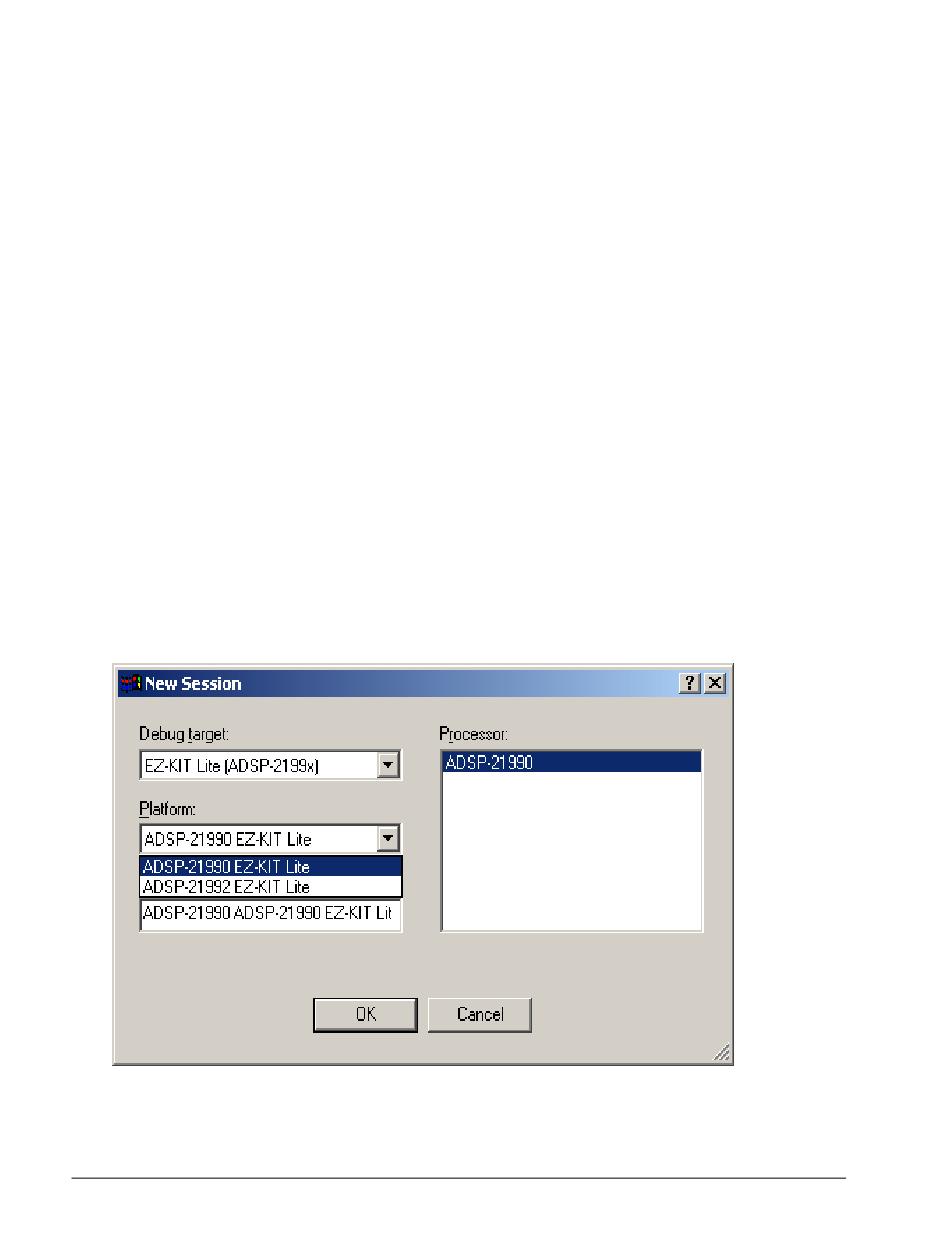

Figure 1-11. New Session Dialog Box
1-16 ADSP-21992 EZ-KIT Lite Evaluation System Manual
Figure 1-11, appears.
