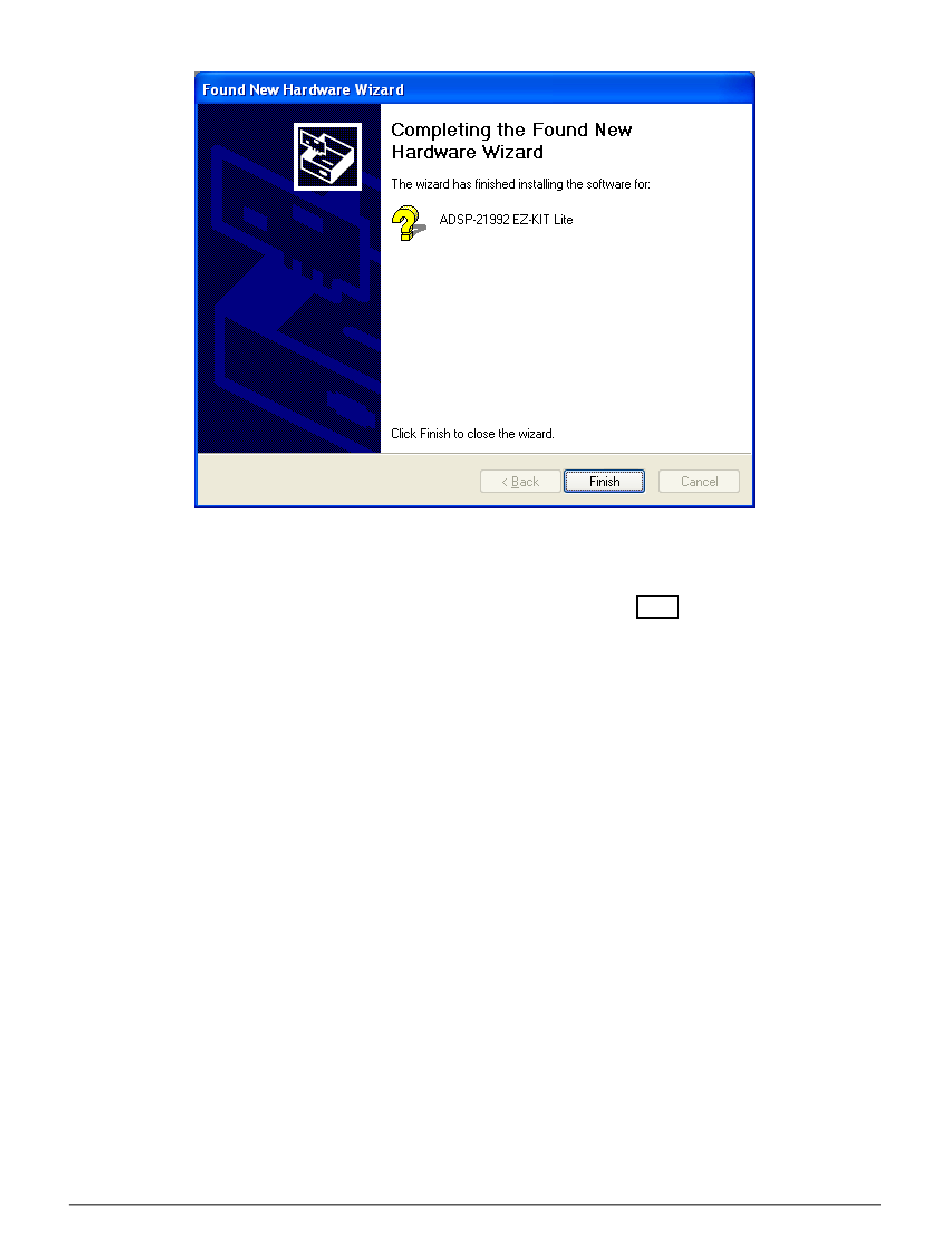

Figure 2-21: Completing Driver Installation Dialog Box

13. Click Finish to exit the wizard.

14. Verify the installation by following the instructions in section 2.4.5.

2.4.5 Driver Installation Verification

Before you use the EZ-KIT Lite evaluation system, verify that the USB driver software is

installed properly:

1. Ensure that the USB cable is connected to the evaluation board and the PC.

2. Press the RESET button (S1) on the evaluation board.

3. Verify that the red USB monitor LED (CR7) is lit. This signifies that the board is

communicating properly with the host PC, and is ready to run VisualDSP++.

In order to start debugging, you must set up a session in VisualDSP++.

1. Hold down the Control (CTRL) key.

2. Click the Start button on the Windows taskbar, and then choose Programs, VisualDSP,

VisualDSP++ for 21xx.

The Session List dialog box appears if you already have existing sessions. Skip to step 4 if this is

the first time running VisualDSP++.

ADSP-21992 EZ-KIT Lite Evaluation System Manual

2-23
