Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the RS1800 series router and its components.
This information includes:

• Components.

• Information on assembly.
• Power supply.
• RST button.
• Data connection.
• SIM cards installation.
• Embedded Access Point.
3.1 Components

3.1.1 Front panel

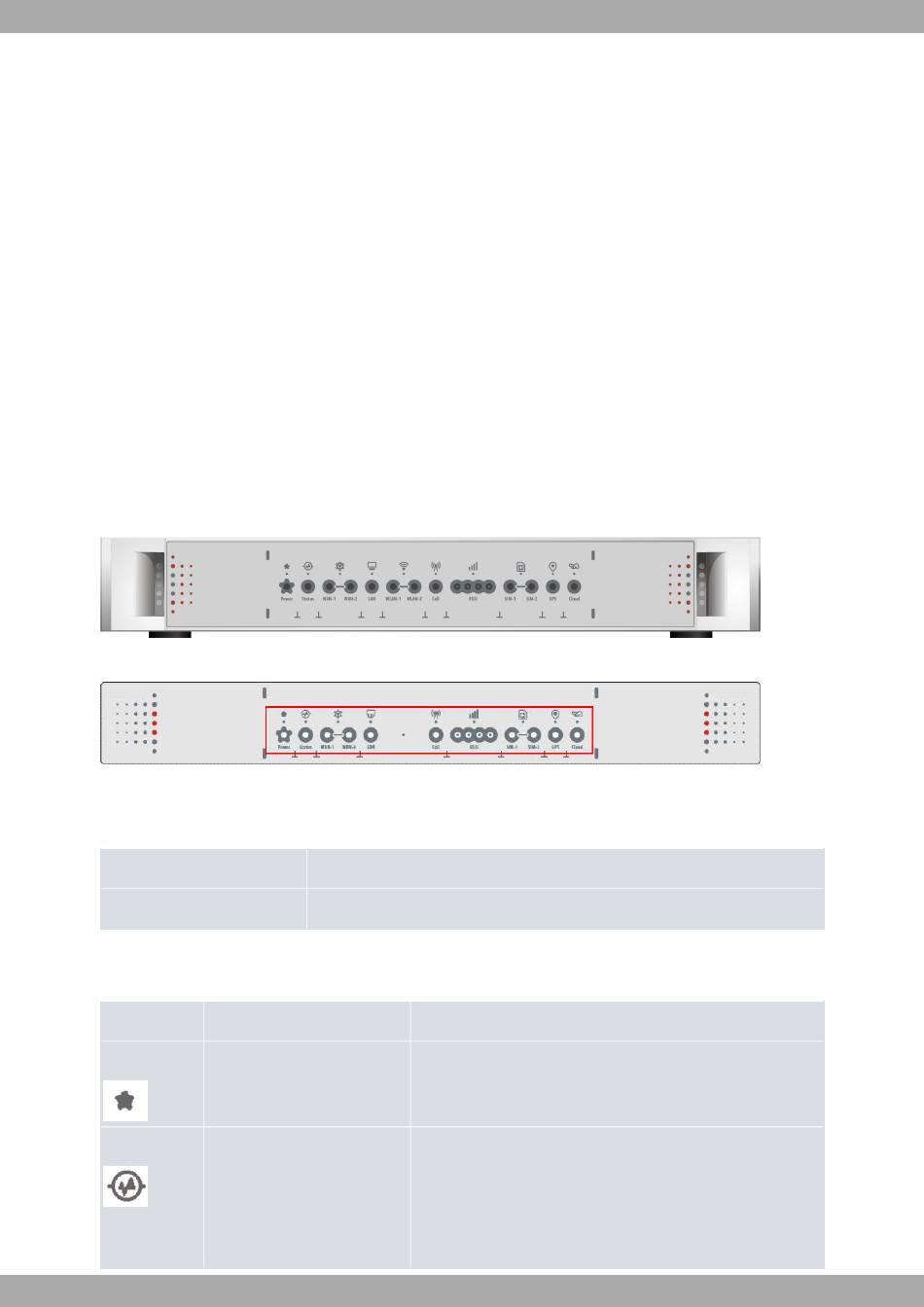

The following figure shows the front panel.
Front Panel of the RS1800w
Fig. 1:
Front Panel of the RS1800
Fig. 2:
The front panel components are as follows:
Front panel components
Item
A
The LED panel provides information on the status of the components (indicating whether they are active or not) and
on network activity.
LEDs
LED
Power
Status
RS1800 series
device
device
Description
LED panel.
Definition
Power / Switch On-Off
General Status /
Default Configuration Process
Status Indication
Off -> No power through PSU.
On -> Powered through PSU.
Off -> System off.
Red -> Error, component operating incorrectly.
Green -> System initialized and operating.
Amber (blink) -> Default configuration.
