Hardware Installation

3.1

DIN Rail Mounting

Each switch has a DIN-Rail bracket on the rear panel that allows the switch to be mounted on a DIN Rail.
To mount the switch on a DIN Rail follow the steps below.
1. Slant the top of the switch back and hook the top of the DIN bracket onto the top of the DIN rail.
iES6
2. Push the bottom of the switch towards the DIN Rail until in clicks into place.
Note: To release the switch from the DIN Rail, pull the latch at the bottom of the switch down to release
the DIN bracket from the DIN Rail. While pulling the latch down, pull the bottom of the switch away from
the DIN Rail. The switch will now lift off of the DIN rail.
iS5 Communications Inc.

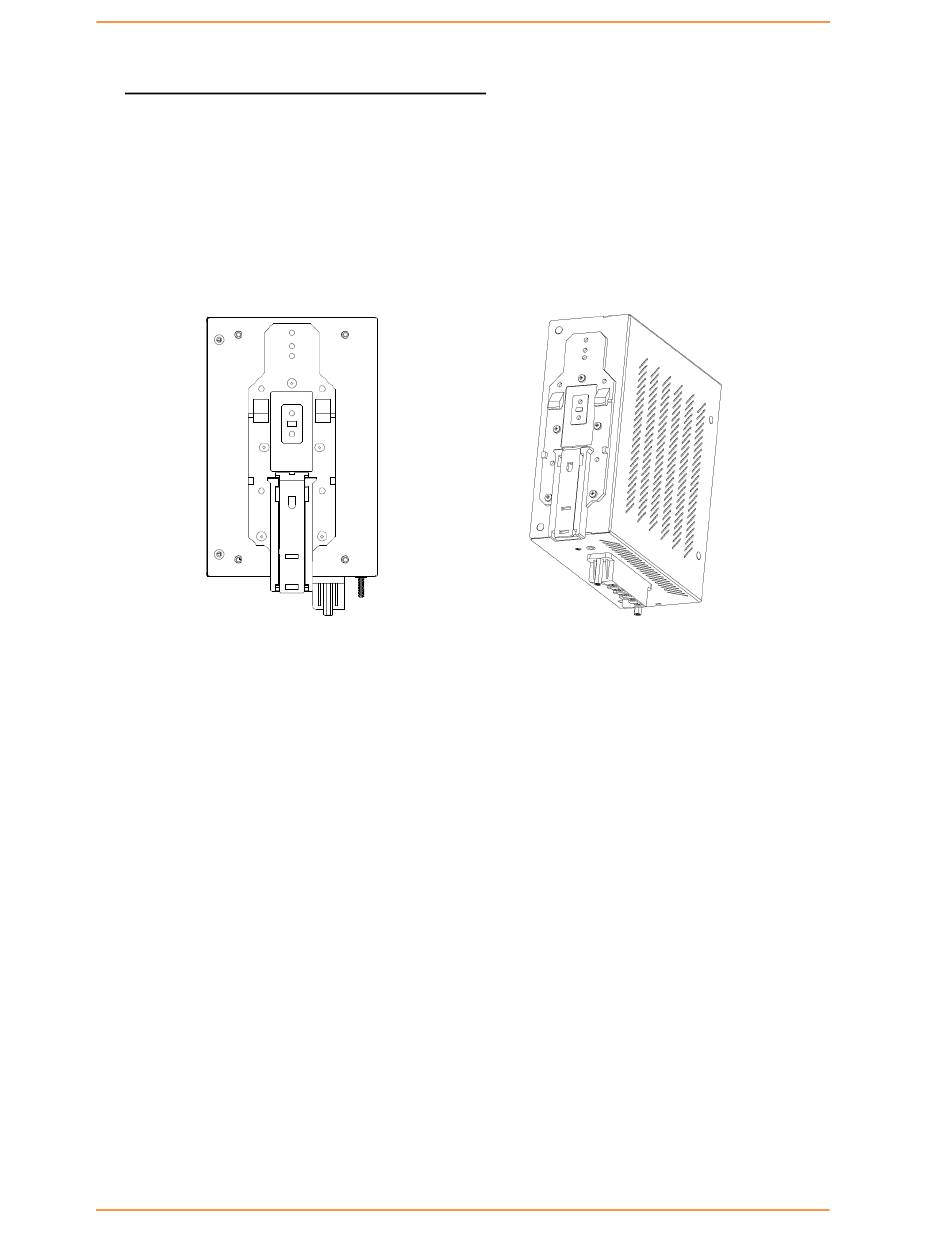

Figure 5 - DIN Rail Mounting
iES6 Series User's Manual
