CLI Management by Telnet
Users can use "TELNET" to configure the switches.
The default value is as below:
IP Address: 192.168.10.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.10.254
User Name: admin
Password: same as the Web Browser password
Note: First login into device requires changes of the default password.
Follow the steps below to access the console via Telnet.
(1) Telnet to the IP address of the switch from the Windows "Run" command (or from
the MS-DOS prompt).
(2) The Console login screen appears. Use the keyboard to enter the Console Username
and Password which is same as the Web Browser password , then press Enter.
iS5 Communications Inc.

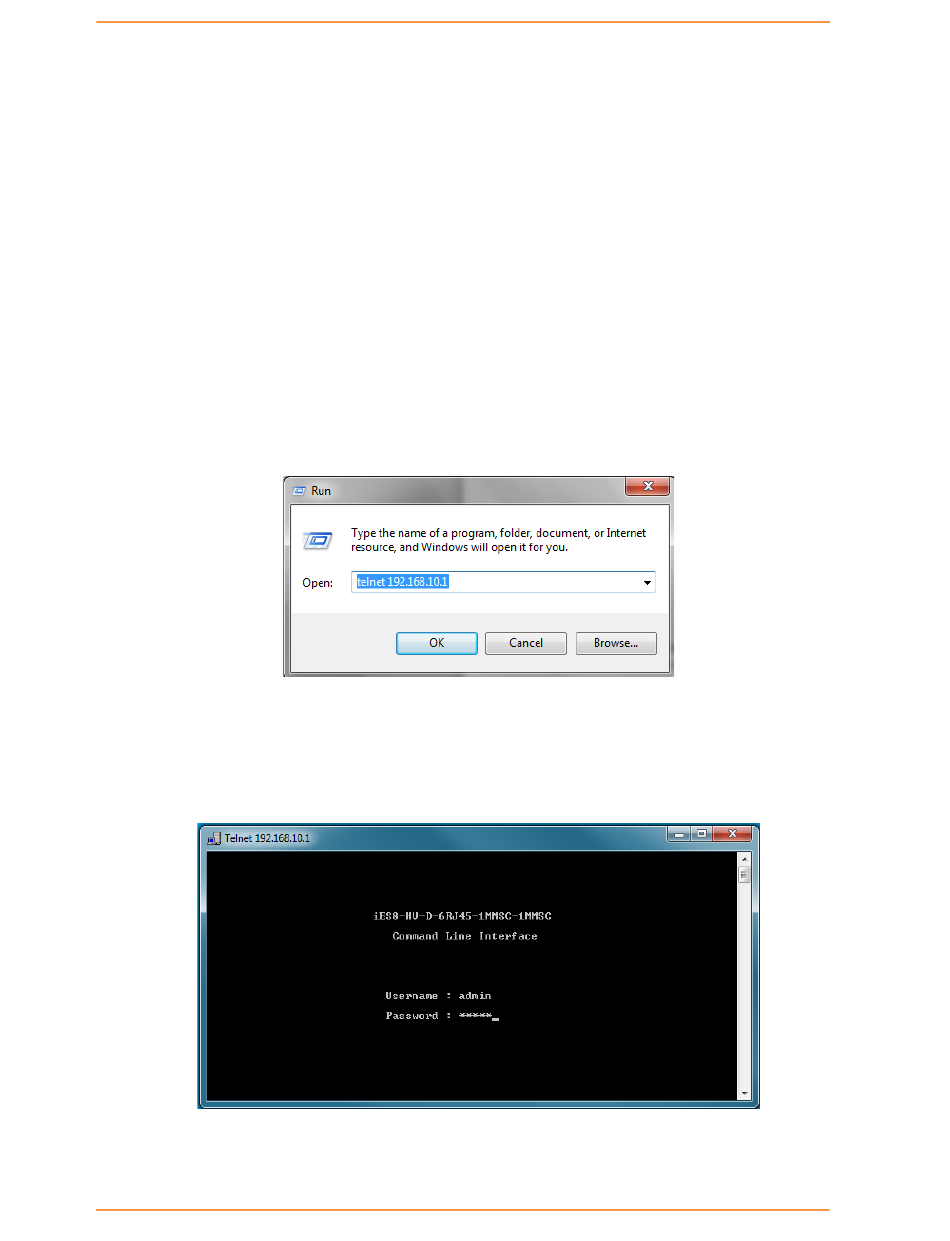

Figure 50 - Windows Run
Figure 51 - Telnet Screen
iES6 Series User's Manual
49
