Rstp Information - IS5 COMMUNICATIONS iES6 Series User Manual

Label
Priority (0-240)
P2P
Edge
Apply
NOTE: Follow this rule to configure the MAX Age, Hello Time, and Forward Delay Time:
2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value +1)

RSTP Information

The RSTP algorithm result is as shown in the table below.
iS5 Communications Inc.
Description
port. Enter a number 1 to 200000000.
Enter which port should be blocked by setting the priority on the LAN.
Enter a number between 0 and 240. The value of priority must be a multiple
of 16.
Some of the rapid state transactions that are possible within RSTP are
dependent upon whether the port concerned can only be connected to
one other bridge (i.e., It is served by a point-to-point LAN segment), or, it can
be connected to two or more bridges (i.e., It is served by a shared medium
LAN segment). This function allows the P2P status of the link to be
manipulated administratively. True means P2P is enabled. False means P2P
is disabled.
Admin Edge is the port which is directly connected to end stations. It cannot
create a bridging loop on the network. To configure the port as an edge port,
set the port to "True".
Click "Apply" to activate the configurations.

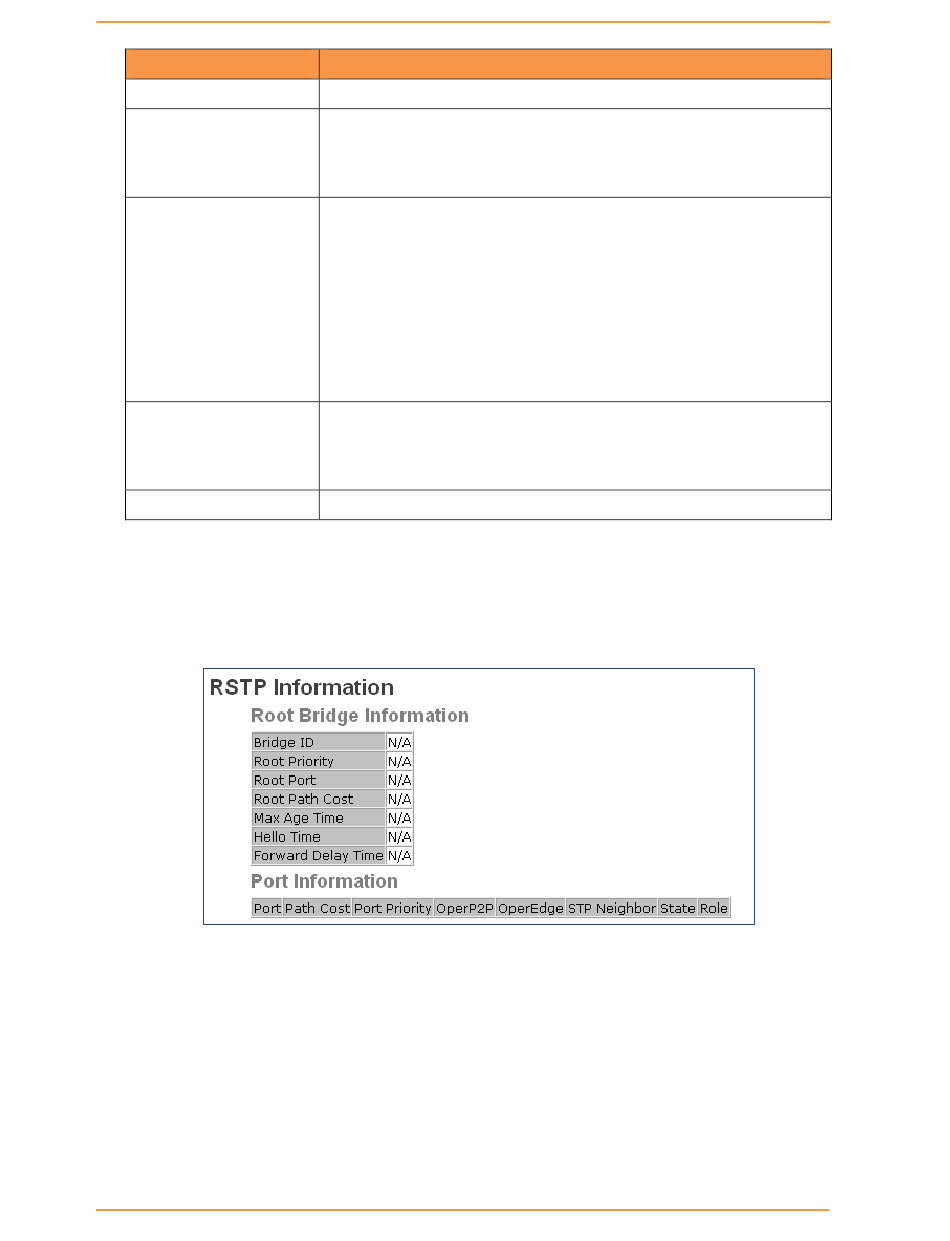

Figure 32 - RSTP Information Interface
