2.3

Bottom

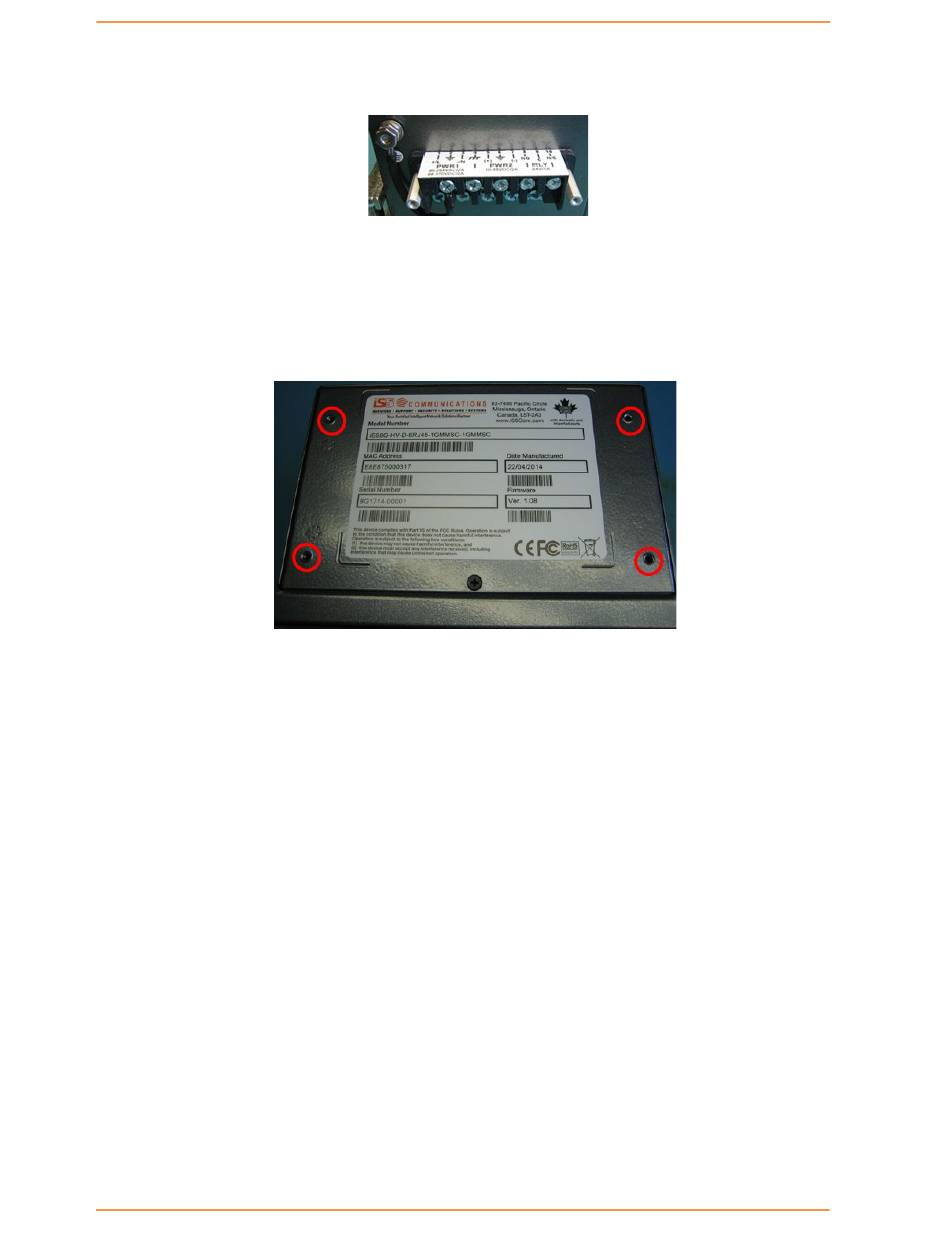

The image below shows the 10 position terminal block and ground lug of the iES6 and iES6-S switch.
Figure 3 - 10 Position Terminal Block and Ground Lug
2.4

Side

On the full DIN version, the holes circled in red are the side mounting holes for the Panel bracket mounting
option. (NOTE: this is for the full DIN version only and not the slim version – iES6-S).
iS5 Communications Inc.
Figure 4 - iES6 - Side View
iES6 Series User's Manual
11
