RSTP Setting

The RSTP function can be enabled or disabled and parameters set for each port via the RSTP Setting
interface.
The following table describes the labels for the RSTP Setting screen.
Label
RSTP mode
Priority (0-61440)
Max Age (6-40)
Hello Time (1-10)
Forwarding Delay Time
(4-30)
Path Cost (1-200000000)
iS5 Communications Inc.

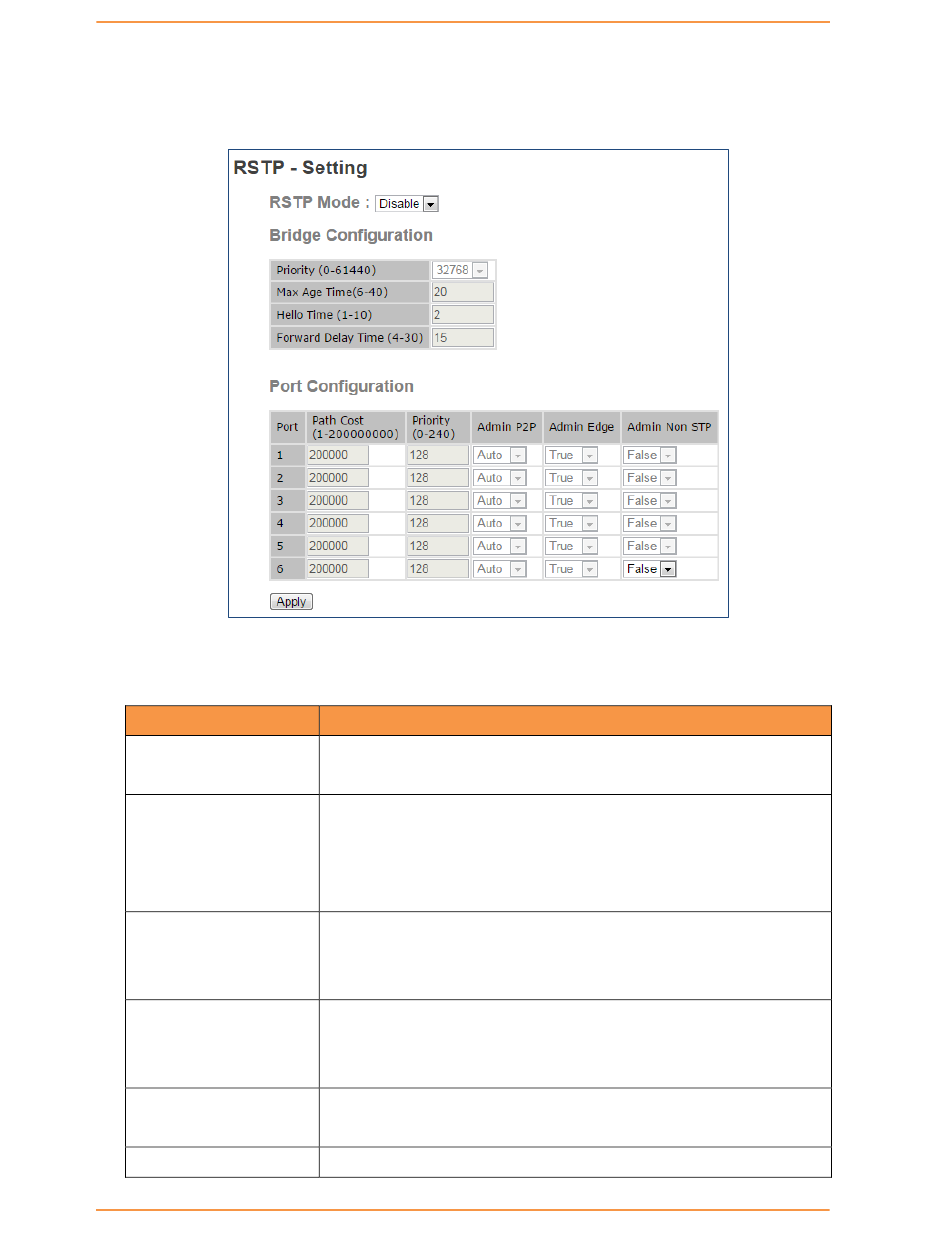

Figure 31 - RSTP Setting interface
Description
The RSTP function must be enabled or disabled before configuring any of the
related parameters.
A value used to identify the root bridge. The bridge with the lowest value
(highest priority) is selected as the root. If the value changes, the switch must
be rebooted. The value must be a multiple of 4096 according to the protocol
standard.
The number of seconds for a bridge to wait without receiving Spanning Tree
Protocol configuration messages before reconfiguration. Enter a value
between 6 and 40.
The time that the Control Switch sends out the BPDU (Bridge Protocol Data
Unit) packet to verify the current status of RSTP. Enter a value between 1 and
10.
The number of seconds a port has to wait before changing from
learning/listening state to forwarding state. Enter a value between 4 and 30.
The Path Cost to the other bridge from the transmitting bridge at a specified
iES6 Series User's Manual
34
