Command Line Interface Management

6.1

About CLI Management

Besides WEB-based management, iES6/iES6-S Series also supports CLI management. The switch console port
or Telnet can be used to configure the switch via the CLI.
CLI Management by RS-232 Serial Console (9600, 8, none, 1, none)
Use an RJ45 to DB9-F cable to connect to the switch's console and to a local PC's COM port.
Follow the steps below to access the console via the RS-232 serial cable.
(1) Start Tara Term application.
(2) Under Setup select Serial Port.
(3) Select the COM Port on your PC used to connect to the Console Port. Set the rest of the properties
to: 9600 for Baud rate, 8 for Data bits, None for Parity, 1 bit for Stop and none for Flow control, then
press "OK".
iS5 Communications Inc.

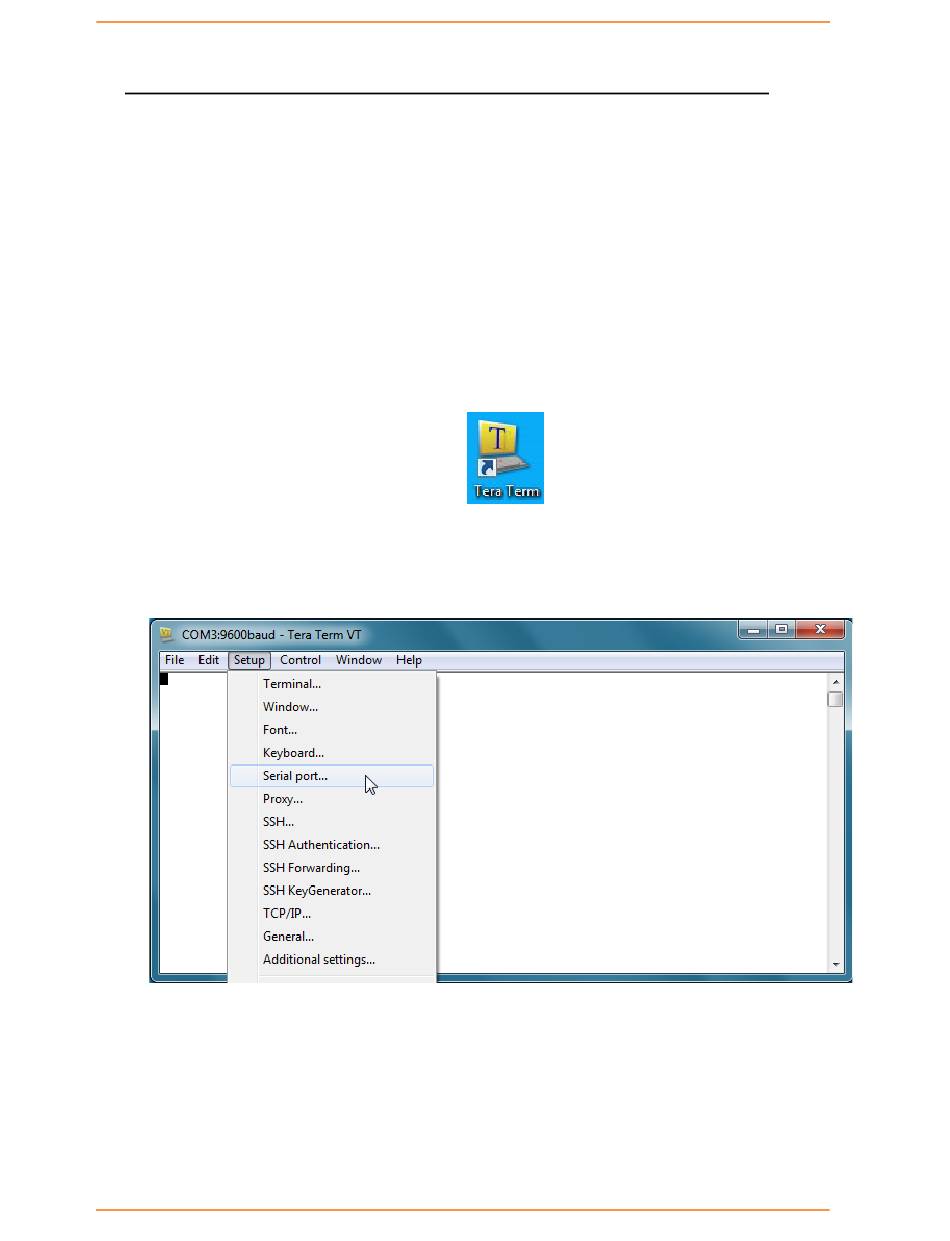

Figure 46 - Tera Term
Figure 47 – Setup Drop-down Menu
iES6 Series User's Manual
47
