Hardware Overview

2.1

Front Panel

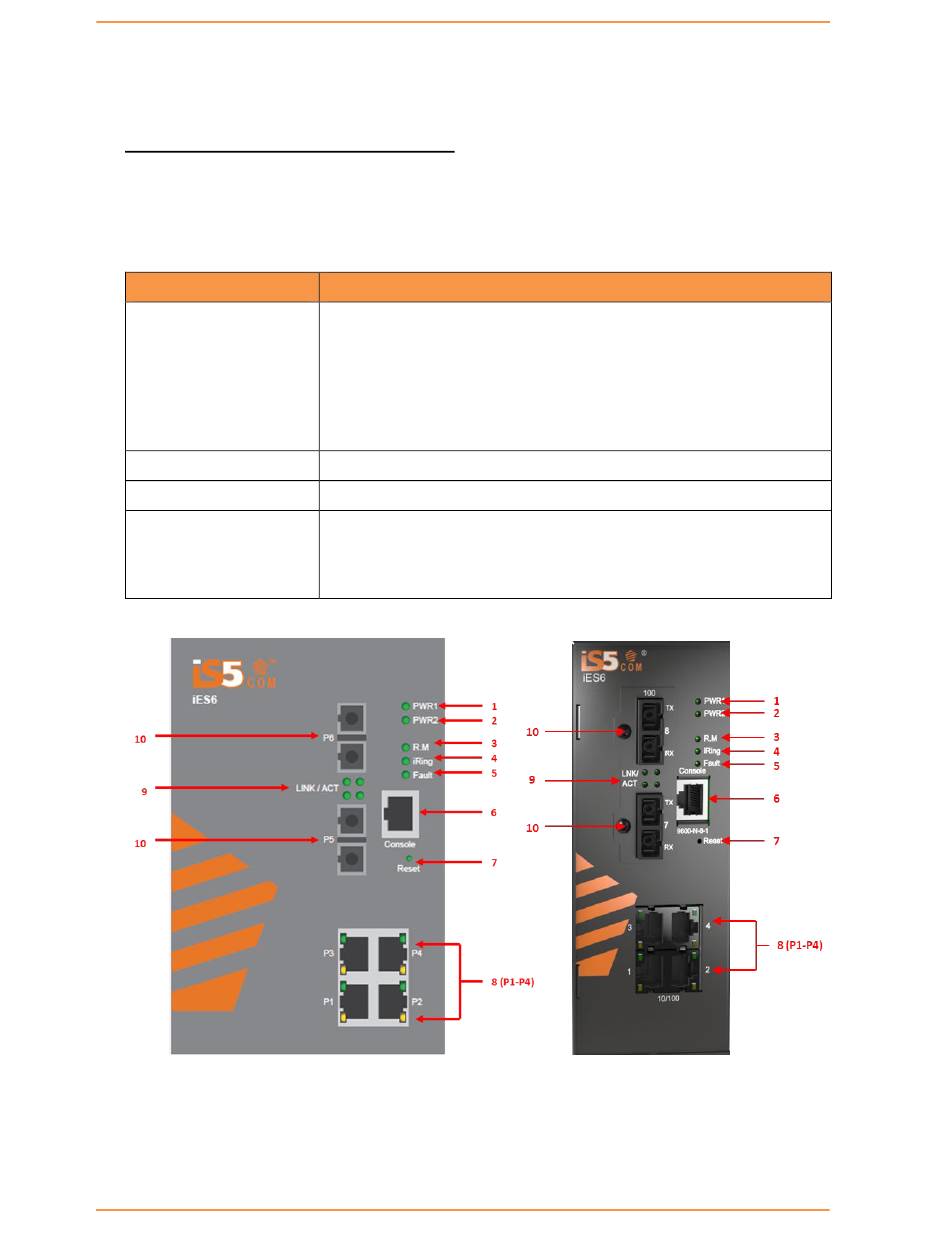

The product description is as shown below.
Port
Ports 1-4 10/100 RJ45 fast
Ethernet ports (8)
Ports 5 -6 (10)
Console (6)
Reset (7)
Note: Ports 5 and 6 (Ref 10) Fiber option shown for reference only. Ports are also available as RJ45.
iS5 Communications Inc.
Description
6 x 10/100Base-T(X) RJ45 fast Ethernet ports support auto-negotiation.
Default Setting :
Speed: auto
Duplex: auto
Flow control : disable
2 x 100Base-F(X) SC or ST ports (Optional)
Use a RS232 to RJ45 cable to manage switch.
Push and hold the reset button for 2 to 3 seconds to reset the switch.
Push and hold the reset button for 5 seconds to reset the switch into
Factory Default.
Figure 1 - Product Descriptions
iES6 Series User's Manual
