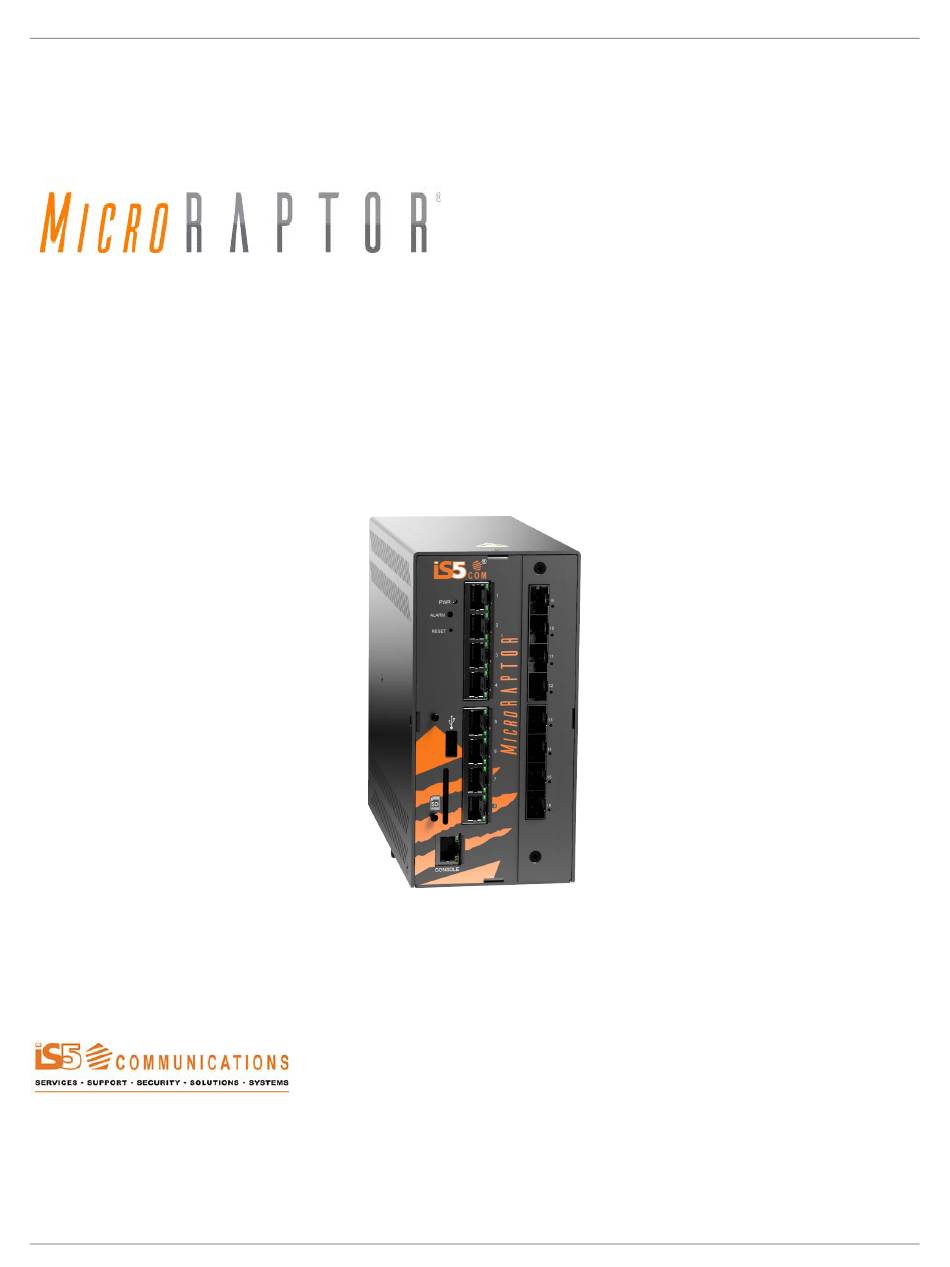

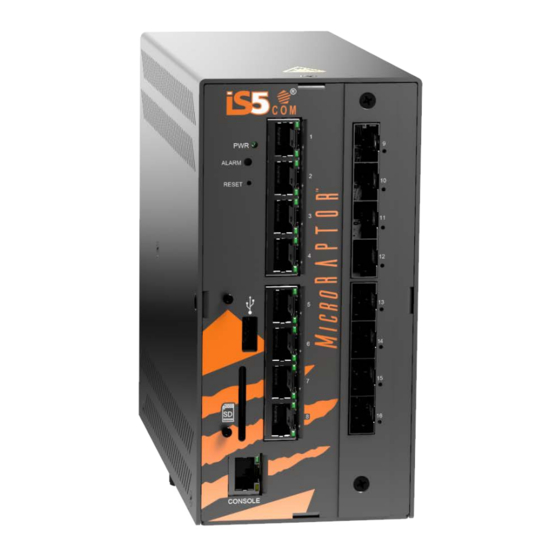

MicroRAPTOR - Quick Start Guide
Intelligent Cyber Secure Platform
iMR920
Version: 1.13.05-2, Date: June 2022
© 2022 iS5 Communications Inc. All rights reserved.
i
