4.3
Console Cable
The iES6 Series switches can be managed via the console port on the front face using the RS-232 cable
provided, and a local PC.
The console cable pin assignment is as shown below.
PC pin out (male) assignment
Pin #2 RD
Pin #3 TD
Pin #5 GD
iS5 Communications Inc.

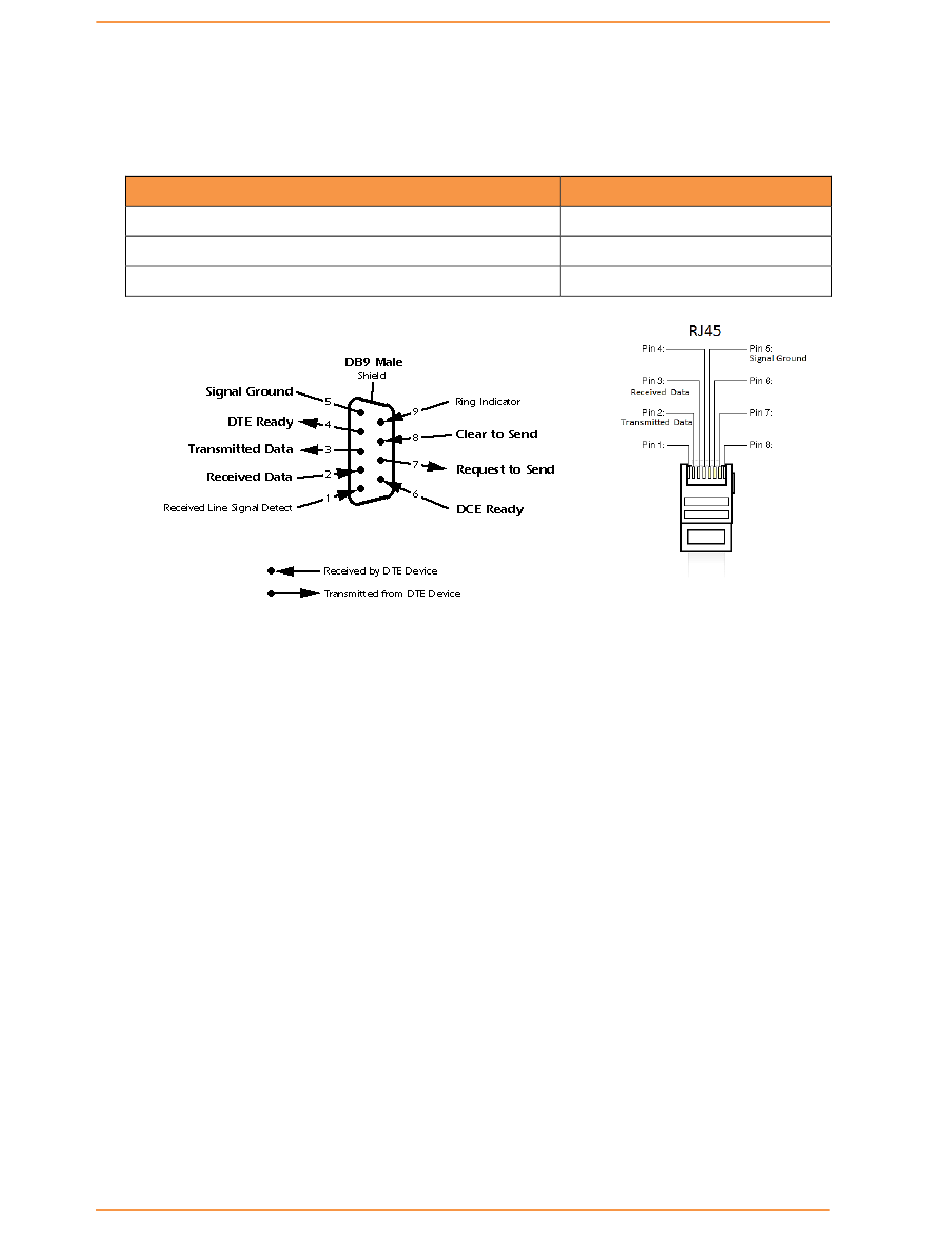

Figure 10 - Console Cable Pin Assignment
iES6 Series User's Manual
DB9 to RJ 45
Pin #2 TD
Pin #3 RD
Pin #5 GD
19
