The following table describes the labels for the Port Control screen.
Label
Port No.
State
Speed/Duplex
Flow Control
Security
Apply
5.1.5.2
Port Status
The following information provides the current port status information.
5.1.5.3
Port Alias
The user can define the name of every Port. User can be convenient management every port.
iS5 Communications Inc.
Description
Port number for setting.
Enables/Disables Port Control.
Set Auto-negotiation, 100 full, 100 half, 10 full or 10 half.
Supports symmetrical and asymmetrical mode to avoid packet loss
when congestion occurs.
Supports port security function. When enabled, the port will STOP
learning the MAC address dynamically.
Click "Apply" to activate the configurations.

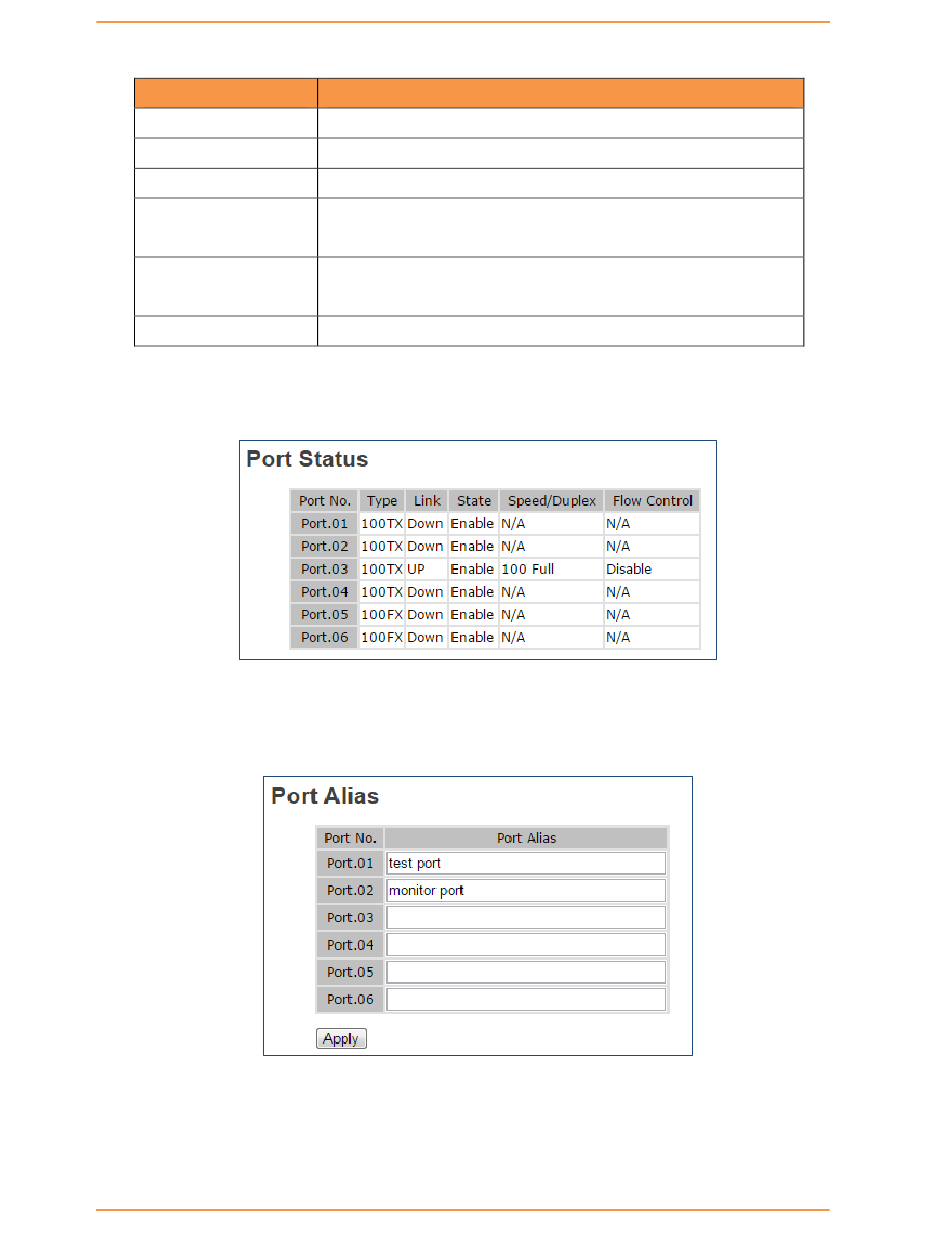

Figure 23 - Port Status Interface
Figure 24 - Port Alias Table
iES6 Series User's Manual
29
