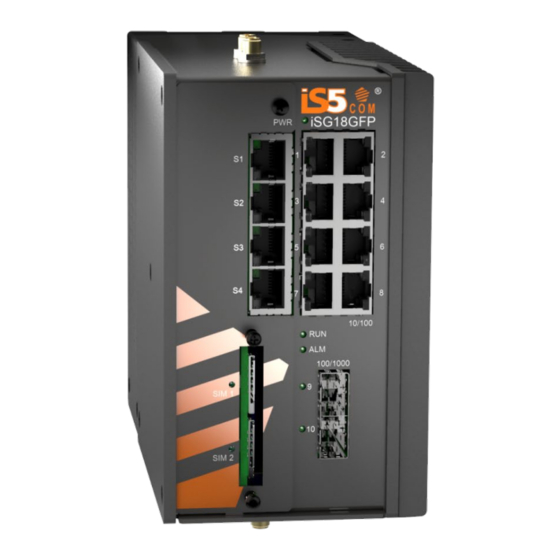

IS5 COMMUNICATIONS iSG18GFP User Manual

Hide thumbs Also See for iSG18GFP:

Installation manual (33 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

Version 4.5.06.1, Apr 2020

UM-G-iSG18GFP-4.5.06.1-EN.docx

iSG18GFP User Manual, General, Section G

Intelligent 18 Port Compact Service Aware Ethernet Switch

iSG18GFP

IEC 61850-3 and IEEE 1613 Compliant

Table of Contents

Need help?

Do you have a question about the iSG18GFP and is the answer not in the manual?

Questions and answers

Summary of Contents for IS5 COMMUNICATIONS iSG18GFP

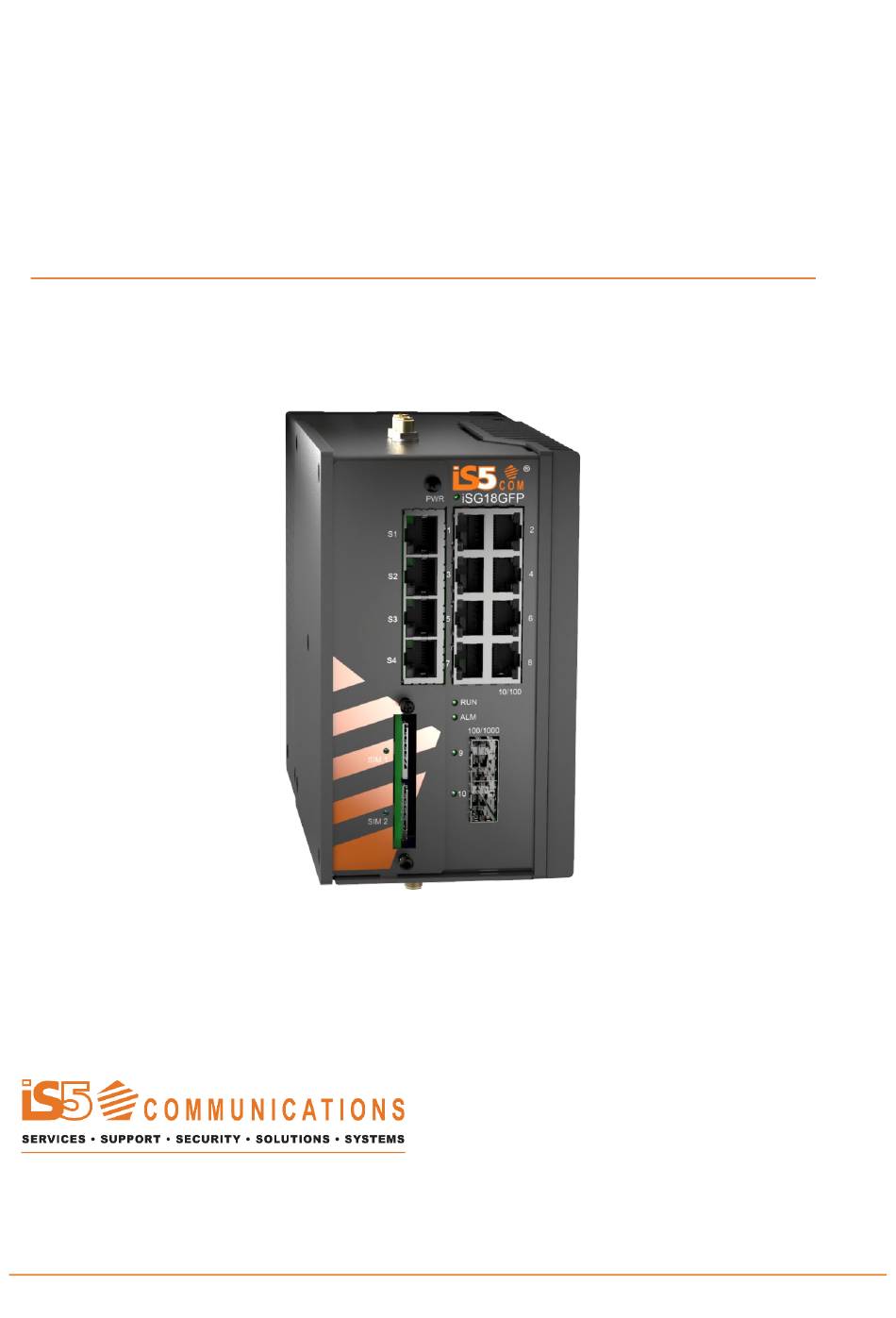

Page 1 User Manual, General, Section G iSG18GFP Intelligent 18 Port Compact Service Aware Ethernet Switch IEC 61850-3 and IEEE 1613 Compliant Version 4.5.06.1, Apr 2020 © 2020 iS5 Communications Inc. All rights reserved. UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 2 ISG18GFP USER MANUAL, GENERAL, SECTION G COPYRIGHT NOTICE © 2020 iS5 Communications Inc. All rights reserved. No part of this publication may be reproduced in any form without the prior written consent of iS5 Communications Inc. (iS5). TRADEMARKS iS5Com is a registered trademark of iS5. All other trademarks belong to their respective owners.
Page 3: Table Of Contents
From USB ......................30 5.4.2 From SFTP ......................31 Example of Exporting DB and Logs ..............33 Example of Exporting DB Files to Flash Drive ..........33 Example of Importing DB from TFTP ..............33 Safe Mode ......................34 UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 4 7.10.4 Example ......................68 7.11 System Alias ......................69 7.12 CLI Pagination ....................69 7.13 MAC-Address Table (FDB) ................70 7.13.1 Port Mac Learning Limit ..................70 7.13.2 Commands Hierarchy ..................70 7.13.3 Configuration Example, Static MAC entry ............71 UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 5 Figure 5 – Uploading OS Image from USB ........................ 37 Figure 6 – Graphical View of System Interface ......................46 Figure 7 - Error Message when Wrong Password Entered ..................61 UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 6: Chapter 1: About The Document
IPSec tunnels and remote user access via SSH. The iSG18GFP is a natural ﬁt for installation at MV/LV transformer sites acting as secure access points for the Distributed Automation control of remote sites. This product is as a secure gateway for Ethernet, IP, and Serial services as an optimized platform for servicing these needs over the network core.
Page 7: Intended Audience
Ethernet type needs to be specified correctly. A fastethernet interface cannot be configured as a gigabit-ethernet interface and vice-versa. This part of the document describes the general structure and features of the product. For basic networking features, please refer to Section B, iSG18GFP User Manual, Basic, Section B, UM-B- • iSG18GFP-4.5.06.01-EN.docx For security features, refer to iSG18GFP User Manual, Security, Section S, UM-S-iSG18GFP-4.5.06.01-...
Page 8: Conventions Used
Danger. Before connecting power Danger to the platform, make sure that the grounding posts are firmly connected to a reliable ground, as described below. UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 9: List Of Abbreviations
Transport Control Protocol OSPF Open Shortest Path First Power over Ethernet SCADA Supervisory Control and Data Acquisition substitute user, super user, switch user, or set user Universal Serial Bus Wide Area Network References UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 10: Chapter 2: Hardware And Interfaces
Graphical View of Hardware FE Ports SFP FE 0/9-16 FE Ports FE 0/1-8 GE 0/1-2 Figure 1 – Graphical View of Hardware Logical System View Figure 2 – Logical System View UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 11: Chapter 3: Installation
Installation Distance Kept for Natural Air Flow Proper installation requires keeping 10 cm distance from top and bottom between the iSG18GFP to another neighboring device for proper cooling using natural air flow. Refer to the figure below. Figure 3 – Distance for Natural Air Flow...
Page 12: Connecting To A Power Source
Connecting to a Power Source CAUTION Please refer to the iSG18GFP installation guide for complete installation instructions. 3.3.1 Wiring DC Input Voltage Feed Input voltage can be either AC or DC depending on the specific module you purchased. Carefully review the label on the back of the module.
Page 13: Wiring Ac Input Voltage Connector
Use 18AWG (1mm2) wire with insulated ferrules. 3.3.3 Power Budget Please refer to the iSG18GFP installation guide for complete breakdown of power consumption per product group and recommended upstream fuse protection. Following table details power consumption for any hardware variants (with cellular and serial interfaces).
Page 14: Chapter 4: Configuration Environment
Command Line Interface The Command Line Interface (CLI) is used to configure the iSG18GFP from a console attached to the serial port of the switch or from a remote terminal using Telnet or SSH. The following table lists the CLI environments and modes.
Page 15: Command Line Navigation
0/1-8 gigabitethernet 0/1-4 untagged fastethernet 0/1-8 gigabitethernet 0/1-2 vlan 4092 ports gigabitethernet 0/3 fastethernet 0/10-11 untagged fastethernet 0/10-11 vlan 4093 ports gigabitethernet 0/3 vlan 10 ports fastethernet 0/1 gigabitethernet 0/3 UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 16: Dynamic Completion Of Commands
02:20:d2:fc:1c:78 vlan 4092 interface gigabitethernet 0/3 mac-address-table static unicast 02:20:d2:fc:1c:79 vlan 4092 interface fastethernet 0/10 mac-address-table static unicast 02:20:d2:fc:1c:7a vlan 4092 interface fastethernet 0/11 2. Show running-config vlan with grep filtering. iSG18GFP# show running-config vlan | grep vlan vlan 4091 vlan 1 vlan 4092...
Page 17: Supported Functionalities
Serial services Terminal services MSTP OSPF SNMP The table below details the iSG18GFP supported features and their corresponding configuration environment. Table 6 – Detailed Description of Supported Features and their Configuration Environment Group Feature Cellular modem with 2 SIM cards...
Page 18 Protection between Cellular ISP (SIM cards backup) Spanning Tree Routing DHCP Client DHCP Relay DHCP Server IPv4 OSPF v2 RIPv2 Static Routing VRRP Security ACLs, L2-L4 Application aware IPS Firewall for SCADA protocols UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 19: System Defaults
Interface VLAN 1 is set to: 10.0.0.1/8 Spanning Tree MST is enabled. Application ports gigabit 0/3-0/4 are edge ports. Depending on hardware type ports fast 0/9-0/16 may be edge ports as well (ET28 HW variants) LLDP Disabled UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 20: Root Commands
- listuser - lock - username - enable password - line - access-list provision mode - access-list commit - exec-timeout - logout - end - exit - show privilege - show line UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 21: Root Commands Description
Displays TTY line information such as EXEC timeout Displays all the aliases show aliases show users Displays the information about the current user. show history Displays a list of recently executed commands UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 22: Gce Commands
- physical/VLAN/port-channel/tunnel Interface debug interface debug-logging incremental-save rollback shutdown ospf start ospf UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 24 CONFIGURATION ENVIRONMENT, GCE COMMANDS CHAPTER: SECTION: show telnet server show audit set http authentication-scheme set http redirection enable http redirect show http authentication-scheme show http redirection UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 25: Gce Commands Description
Configures the displays of debug logs. Debug logs are directed to the console screen or to a buffer file, which can later be uploaded, based on the input. incremental-save Enables/disables the incremental save feature UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 26 Displays system information. show flow-control show debug-logging show debugging show clock show running-config show http server status show mac-learn-rate port-isolation in_vlan_ID show port-isolation UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 28 <port_list> internal-lan show iftype protocol deny table clear line vty login block-for audit-logging logsize-threshold feature telnet show telnet server UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 29: Ace Commands
{fdb| tunnel| nhrp} ping reload {cancel| schedule| show} schedule {add |show |remove} serial {card |port| local-end-point| remote-end-point} ssh-server user {create| remove| show} syslog show telnet terminal-server {admin-status| counters| settings| connections| telnet-service} trace version UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 31: Ace
[Cellular] cellular wan show cellular settings show cellular network show cellular connection show [VPN & IPSec] UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 32 <4-9> port <1-4> serial remote-end-point show iec101-gw show all terminal-server settings show terminal-server connections show [Firewall] show running-config acl show access-lists firewall log show firewall profile show firewall tcp show UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 33: Chapter 5: System Version And Database
 The iSG18GFP can hold at its disk a maximum of two OS image files. Before downloading a new OS file to the switch, make sure the iSG18GFP has on it only one (the active) file. If needed, delete the unused file before attempting to download a new one.
Page 34 ://aa.bb.cc.dd/<file_name> ] tftp : <file_name> | - logs-export flash ://user:password@aa.bb.cc.dd/<file_name> | sftp ://aa.bb.cc.dd/<file_name> ] tftp startup-config show files reload  System must be rebooted following activation of a new OS image file. UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 35: Upgrading The Os
IS_5018_4.5.04.09.tar iSG18GFP# os-image show-list Versions list: IS_5018_4.5.06.01.tar (active) iSG18GFP# 5. Download an OS file from USB. Command syntax: iSG18GFP # os-image download-sw flash:<file_name> Example: iSG18GFP# os-image download-sw flash: IS_5018_4.5.04.09.tar UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 36: From Sftp
2. Delete unneeded OS files. iSG18GFP# os-image delete flash: IS_5018_4.5.04.09.tar iSG18GFP# os-image show-list Versions list: IS_5018_4.5.06.01.tar (active) iSG18GFP# 3. Download OS file from SFTP. Command syntax: iSG18GFP# os-image download-sw sftp://user:password@aa.bb.cc.dd/file_name Example: UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 37 IS_5018_4.5.04.09.tar Switch booting… iSG18GFP# os-image show-list Versions list: IS_5018_4.5.04.09.tar (active) IS_5018_4.5.06.01.tar 5. Export configuration database to SFTP server Command syntax: iSG18GFP# startup-config export sftp://user:password@aa.bb.cc.dd/file_name. Example: iSG18GFP# startup-config export sftp://user:user @172.18.212.230/config_january13 UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 38: Example Of Exporting Db And Logs
The following flow will show how to import configuration from a TFTP server. 1. Establish connectivity between the switch and the TFTP server 2. Start importing the target file iSG18GFP# startup-config import tftp://172.18.212.231/IS5_ospf.cfg UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 39: Safe Mode
3. Write to EEPROM (should be used only after consulting with iS5Com) 4. Recover the device's images from a package file 5. Export / Import DB (running configuration) For first safe mode Press 's'... Safe mode requested from boot... ----------------------------------------------------------------------------------------- UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 40 | 5 : Export / Import DB continue | c : Continue in start up process refresh | r : Refresh menu help | H : Display help about this utility -----------------------------------------------------------------------------------------| UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 41: Os Image Upgrade And Recovery
| 6 : Display the free space in the application file system main | X : Return to the main menu help | H : Display help about this menu UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 42: Uploading Os Image Update From Usb
| 3 : Change the active working application show | 4 : Display the active working application remove | 5 : Delete an application free | 6 : Display the free space in the application file system UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 43 | 6 : Display the free space in the application file system main | X : Return to the main menu help | H : Display help about this menu UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 44 | 1 : Download the package file from USB | 2 : List the available application files active | 3 : Change the active working application show | 4 : Display the active working application UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 45 | H : Display help about this utility ----------------------------------------------------------------------------------------- ####################################################################### ### Device Image Recovery ######################################### ####################################################################### | 1 : Download the package file from USB | 2 : List the available application files UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 46: Installing First Firmware Image From A Usb
| 4 : Install first sw version from USB other | o : write other type field continue | c : Continue with start up process help | H : Display help about this utility UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 47: Updating The Isg18Gfp's Os
“ramdisk” folder.  iSG18GFP looks for the Uboot in a directory named “ramdisk”. Make sure that the right Uboot is placed there. 3. Reboot the iSG18GFP. CLI command is reloaded. 4. Stop the boot process in Uboot point. To do so, when you see the countdown 3,2,1, press Enter.
Page 48: System Database Import/ Export
2. At the sub menu, select Option 5 “db”. Use Option 3 to view available db files at the USB (for import). The shown below example demonstrates importing a db file named “ss_spoke1” from the USB and booting the system with it. List of db files on usb: UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 49 | 2 : Load the factory-default configuration for the device eeprom | 3 : Write to EEPROM recover | 4 : Recover the device's images from a package file | 5 : Export / Import DB UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 50 SYSTEM VERSION AND DATABASE, SAFE MODE CHAPTER: SECTION: continue | c : Continue in start up process help | H : Display help about this utility ----------------------------------------------------------------------------------------- UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 51: Chapter 6: Port Interfaces
Port number is in the range of 0-16 (depending on hardware configuration) Graphical View of System Interface FE Ports SFP FE 0/9-16 FE Ports FE 0/1-8 GE 0/1-2 Figure 6 – Graphical View of System Interface UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 52: A Logical View Of Ports
The RS232 ports are configured and identified within the ACE CLI mode and are not seen at “show vlan”.  The iSG18GFP has several hardware ordering options of interfaces. The Ethernet interfaces which are applicable to the hardware will be available for configuration.
Page 53: Default State
With hardware versions of ET28 these ports properties should not be changed from their default settings of auto- negotiation and hybrid state. Serial Ports There are hardware options with 4 x RS-232 RJ45 Serial Ports (4SRJ45.) with 2kV Isolation- iSG18GFP- 2GSFP- 4SRJ45 or iSG18GFP- XX- 4SRJ45. PoE Ports Depending on your hardware variant PoE ports may be available.
Page 54: Power Management Of Poe
SECTION: The hardware options supporting POE are as follows: iSG18GFP-HV (PoE)-D-8PRJ45-2GSFP-4SFP-4SFP—hardware includes 8 PoE support on the FE Ethernet • ports 1-8. All PoE ports are wired as Alternative-A (PoE runs on the FE twisted pairs). Each port supports up to 30 Watt max PoE.
Page 55: Poe Commands Description
6.11 Ports Command Hierarchy + Root + config terminal [range] <type> {<port id>| <iface_list>} + interface [no] DESCRIPTION alias UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 56 - show interface mtu - show interfaces status - show interfaces counters - show interfaces capabilities <type> <port id>] - show vlan port config [port <type> <port id> - show running-config interface UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 57: Ports Commands Description
The packets are processed against PVID, if the packets accepted at ingress is not having a tag. Permissible range: 1-4000. default: 1. switchport acceptable- frame-type negotiation Enables port auto negotiation of speed. default: enabled UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 58 Send: Sets the interface to send flow control { send | receive} packets to a remote device Receive: Sets the interface to receive flow control packets from a remote device UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 59: Port Configuration Example
100 2. Set a port as Trunk. Make sure to remove it from any vlan at which it is set as untagged member. iSG18GFP(config)# vlan 1 iSG18GFP(config-vlan)# no ports fastethernet 0/1 untagged fastethernet 0/1 iSG18GFP(config-vlan)# exit iSG18GFP(config)# interface fastethernet 0/1...
Page 60 PORT INTERFACES, PORTS COMMANDS DESCRIPTION CHAPTER: SECTION: 3. Set a port PVID iSG18GFP(config)# interface fastethernet 0/5 iSG18GFP(config-if)# switchport pvid 5 4. Set a Port Alias iSG18GFP(config)# interface fastethernet 0/2 iSG18GFP(config-if)# alias Office-network UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 61: Configuration Output Example
Fa0/2 connected Full 100 Mbps No-Negotiation Auto-MDIX on Fa0/3 not connected Half Auto Auto-MDIX on … iSG18GFP# show vlan port config port fastethernet 0/1 Vlan Port configuration table ------------------------------- Port Fa0/1 UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 62 Port Mac Learning Limit : Default Port Ingress Filtering : Disabled Port Mode : Trunk … iSG18GFP# show vlan port config port fastethernet 0/5 Vlan Port configuration table ------------------------------- Port Fa0/5 Bridge Port Type : Customer Bridge Port Port Vlan ID...
Page 63: Chapter 7: Login And Management
Login and Management Configuring of the Login Authentication Method sets the authentication method. Setting up specific authorized personnel to manage iSG18GFP is possible using filtering conditions such as IP address (mandatory), vlan-id, and service type (SSH, Telnet, SNMP, etc.), etc.
Page 64: Login Authentication Commands Description
Configures the type of service to be used by the Service authorized manager. The values can be: http | https | snmp | ssh | telnet UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 65: Password Commands Hierarchy
2. Type username <string> privilege (1-15) [instead of <string> write the name of the username and set the privilege level according to the number, 1 for lowest and 15 for highest]. UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 66: Password Expiration
• maximum time (default = 90 days) • warning time (default = 10 days) At the next login, the iSG18GFP will notify the user to change the password after the warning time has elapsed. A proper message will be sent to syslog.
Page 67: Examples
2. Configuring of users. iSG18GFP(config)# username company-ceo password User#123 privilege 15 3. Example for assignment of an authorized manager. iSG18GFP(config)# authorized-manager ip-source 10.10.10.10 / 32 interface fastethernet 0/1 vlan 1 service ssh snmp telnet iSG18GFP(config)# authorized-manager ip-source 10.10.10.10 iSG18GFP# show authorized-managers...
Page 68: Privilege Level
Help • • logout Users with privilege level 1 can access all user-level commands with iSG18GFP> prompt. Users with privilege level 15 can access all commands. It is the least restricted level. 7.8.1 Commands Description Table 16 – Commands Description...
Page 69: Serial Console Port
These commands enable the console CLI through a serial port. The no form of the command disables the console CLI. + root lock logout [no] cli console + config line {vty |console} - exec-timeout <timeout sec> - Show nvram  The “cli console” takes effect only after system restart. UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 70: Management
{ enable | disable } set telnet-client {< >@<remote IP>} user show iss memory all show iss-memory-leak modules ]@{remote IP} telnet user lock logout - show running-config system config terminal UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 71 - show http server status <vlan id> - show running-config interface vlan - Show interfaces <type> <port id> - Show interfaces - show telnet server <type> <port id>] - show vlan port config [port UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 72: Commands Description
Command Description set host-name Set the switch name as shown in the root prompt. Default name is “iSG18GFP”. Spaces are not supported. Set the system host name and the SNMP name. set switch-host-name configurable 15-character string. Special characters are supported except the symbol “!”.
Page 73: Example
0/2 no shutdown switchport pvid 10 map switch default exit 3. Create the IP interface to the vlan interface vlan 10 shutdown ip address 192.168.0.100 255.255.255.0 UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 74: System Alias
Press the Q key will interrupt the output entirely. • Turn CLI pagination on/off iss available with the following commands: • iSG18GFP(config)# set cli pagination on iSG18GFP(config)# set cli pagination off UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
Page 75: Mac-Address Table (Fdb)
<MAC> <vlan id> <type> <id> - mac-address-table static unicast vlan interface <MAC> <vlan id> - no mac-address-table static unicast vlan <type> <port id> + interface [enable | disable] switchport unicast-mac learning UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
Page 76: Configuration Example, Static Mac Entry
IP traffic will be learned with the VLAN tag by default. 7.13.3 Configuration Example, Static MAC entry 1. Place a static entry iSG18GFP(config)# mac-address-table static unicast 02:20:d2:fc:1c:95 vlan 1 interface fastethernet 0/4 iSG18GFP# show mac-address-table Switch default Vlan Mac Address...
Page 77: Ip Arp Table
Station MAC that exceeds the allowed limit will not be learned in the fdb table, and syslog message will indicate this as a warning. iSG18GFP# show logging <129>May 11 11:38:12 iSG18GFP CFA Mac learning limit exceeded on Port Fa 0/1 SRC MAC 54:53:ED:2B:19:86 7.14 IP ARP Table The ARP (Address Resolution Protocol) cache timeout can be set in the system.
Page 78: Configuration Example
---------------- ---- --------- ------- 172.18.212.100 00:11:22:33:44:55 ARPA vlan1 Static iSG18GFP# show ip arp information ARP Configurations: ------------------- VRF Name: default Maximum number of ARP request retries is 3 ARP cache timeout is 50 seconds UM-G-iSG18GFP-4.5.06.1-EN.docx © 2020 IS5 COMMUNICATIONS Inc. ALL RIGHTS RESERVED...
