Panel Mounting Option

The switch can also has an option to be panel or wall mounted. The following steps show how to mount the
switch on a panel or wall.
1. Install the Panel mounting hardware onto the switch. The user can choose rear mounting or side
mounting. Note: To avoid damage to the unit, use the 4 screws provided to install the panel mount
brackets onto the switch.
ES6
i
2. Use the holes in the brackets to secure the switch to a wall or panel.
3.3

Chassis Ground Connection

The iES6/ iES6-S chassis ground connection uses a #6-32 Screw. We recommend terminating the ground
connection using a #6 ring lug and a torque setting of 15 in.lbs (1.7Nm). The red outline indicates the
location of the chassis ground.
iS5 Communications Inc.

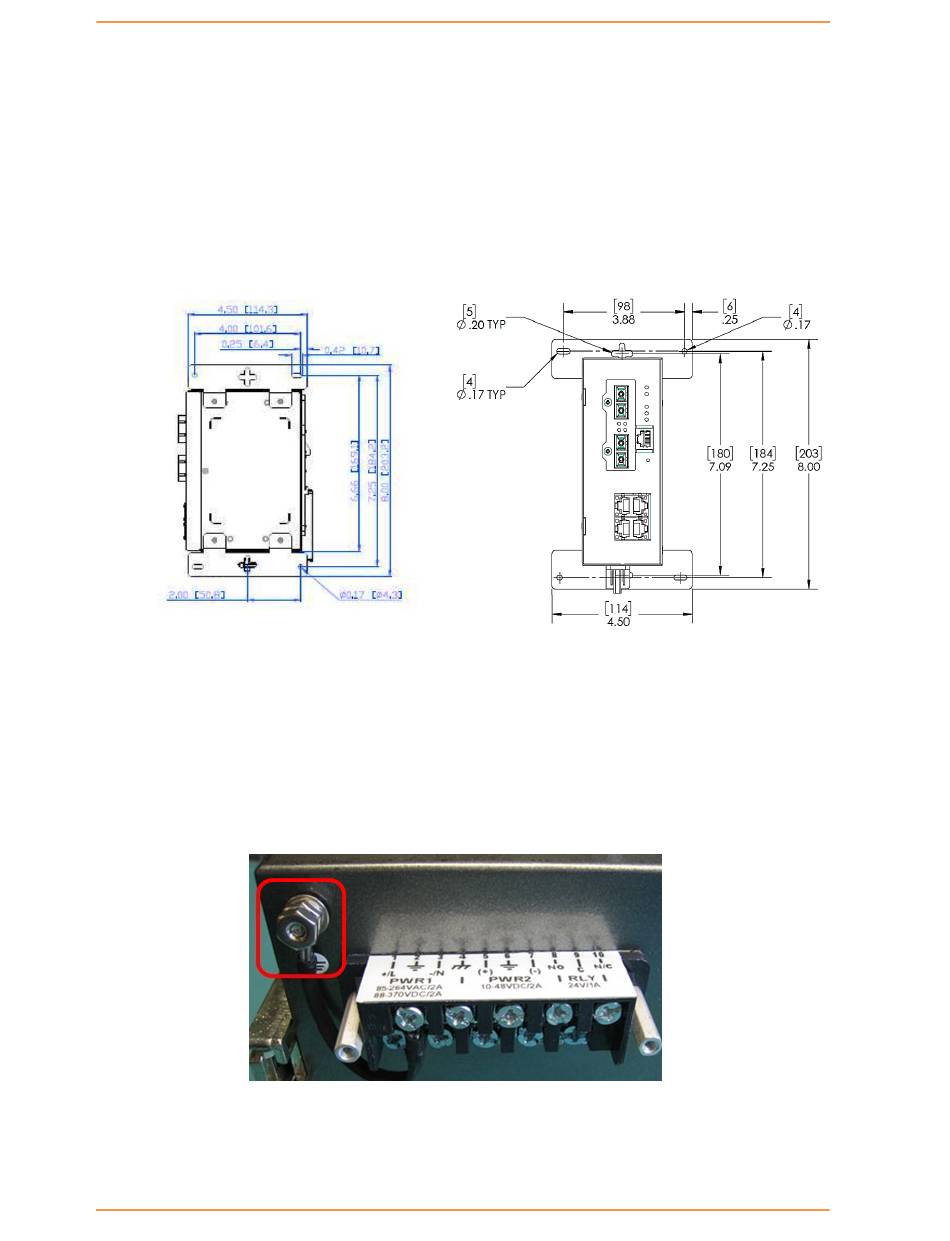

Figure 6 - Panel Mounting
Figure 7 - Chassis Ground Connection
