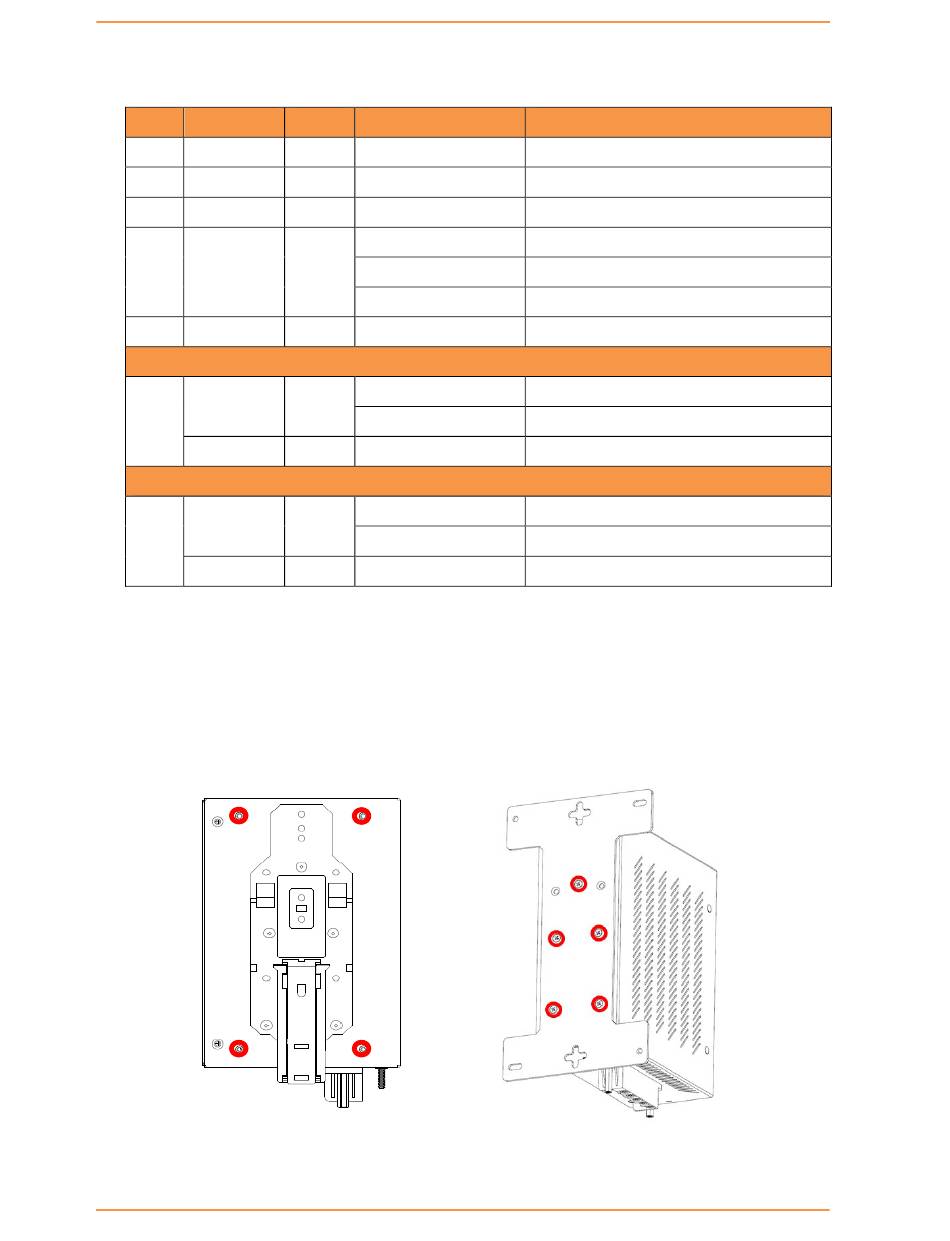

Front Panel LED's are shown in the table below.
Item Description Color
1 PWR1 Green
2 PWR2 Green
3 R.M Green
4 iRing Green
5 Fault Amber
Ports 1 to 6 - 10/100Base-T(X) Fast Ethernet ports
LNK / ACT Green
8
Full Duplex Amber
Ports 7 – 8 Optional 10/100Base-T(X) or 100Base-F(X) or 1000Base-X
ACT Green
9
LNK Amber
2.2

Rear

The image below shows the DIN bracket on the back of the switch (suitable for iES6 and iES6-S).
On the full DIN version, the holes circled in red are the mounting holes for the Panel bracket mounting
option. (NOTE: this is for the full DIN version only and not the slim version- iES6-S).
iES6
iS5 Communications Inc.
Status Function
On Power supply 1 operational.
On Power Supply 2 operational.
On Switch operating as iRing Master.
On iRing enabled.
Slowly blinking iRing topology broken.
Fast blinking iRing working normally.
On Fault relay. Power failure or Port down/fail.
On Port link up.
Blinking Data transmitted.
On Port works under full duplex.
On Port link up.
Blinking Data transmitted.
On Port link up.
Figure 2 - Rear Views
