Getting Started

LED

Keyboard Backlight

Login

Logoff
1-50
Press the On/Off switch to turn the power on.
After a successful boot-up process, the Power On/Off switch
illumination turns to green.

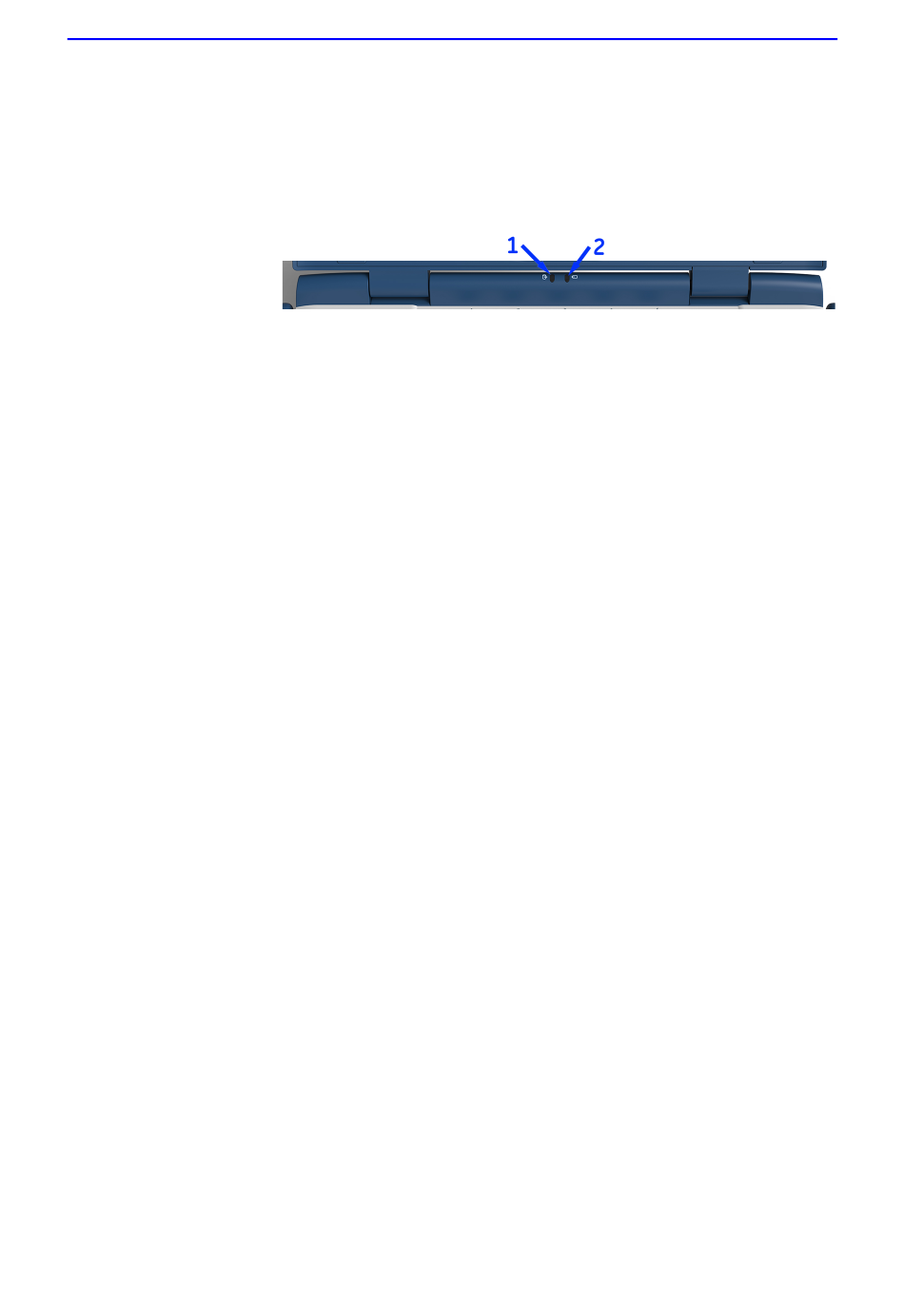

Figure 1-33. LED Indicators
1. Indicates hard disk working status. When the LED is
flashing, the system is writing or reading from the hard disk.
Color: Green
2. Indicates battery status. When the battery is charged, the
LED is green. When battery power is low, the LED is
orange.
Color: Green and Orange
The keyboard backlight is lit for operation in dimly lit room.
Personal IDs and associated passwords can be preset in Utility
-> Admin -> Users on the LOGIQ V2/LOGIQ V1.
If the User Auto Logon preset in Utility -> Admin -> Logon is
blank, you are prompted to login.
To logoff, press the Power On/Off switch momentarily and a
SYSTEM-EXIT window appears.
LOGIQ V2/LOGIQ V1
Direction 5610736-100 Rev. 9
–
User Guide
