Write Zoom - GE LOGIQ V2 User Manual

Using Read/Write Zoom (continued)
HINTS
LOGIQ V2/LOGIQ V1
Direction 5610736-100 Rev. 9
When CrossXBeam is off, both read zoom and writer zoom can
be activated:
To activate Read Zoom, press the Depth/Zoom/Ellipse knob
once, the zoom status is indicated on the system status bar.
To activate write Zoom, press the Depth/Zoom/Ellipse knob
again, the zoom status is indicated on the system status bar.
To zoom an image, rotate Depth/Zoom/Ellipse knob clockwise.
A reference image appears in the down, left-hand section of the
display.

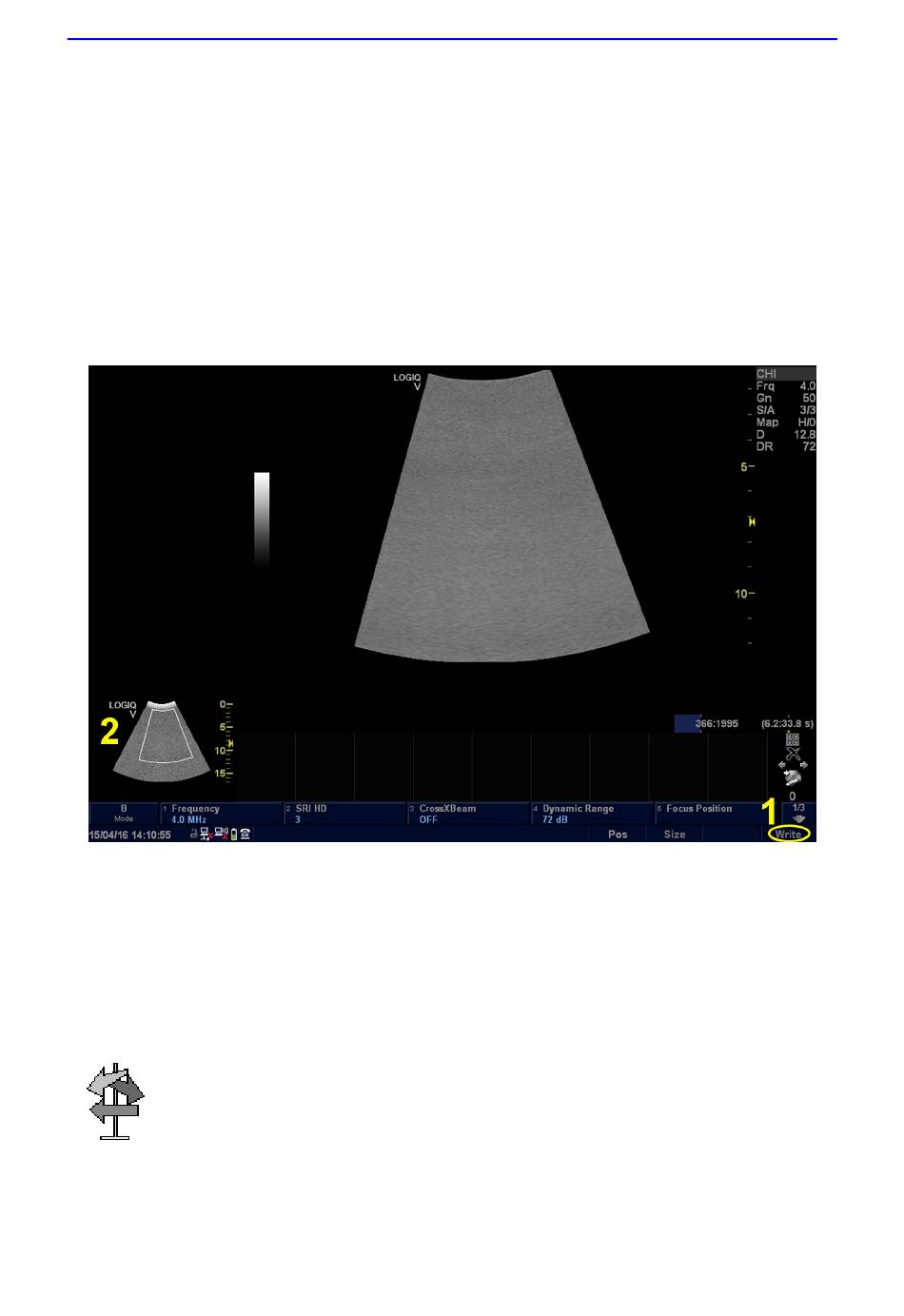

Figure 2-2. Write Zoom
1. Zoom status
2. Reference Image
To exit zoom, press B-Mode or press the Depth/Zoom/Ellipse
knob the third time or rotate Depth/Zoom/Ellipse knob
counterclockwise until the reference zoom image is removed.
First use the Read Zoom (Press Zoom knob once) to get to the
area of interest, then use Write Zoom (press Zoom knob again).
–
