Battery Installation

LOGIQ V2/LOGIQ V1
Direction 5610736-100 Rev. 9
To install the battery to the bottom cover of the system:
1. Shut down the system and disconnect the AC/DC power
cord.
2. Put the battery into the battery box through the opening
place.

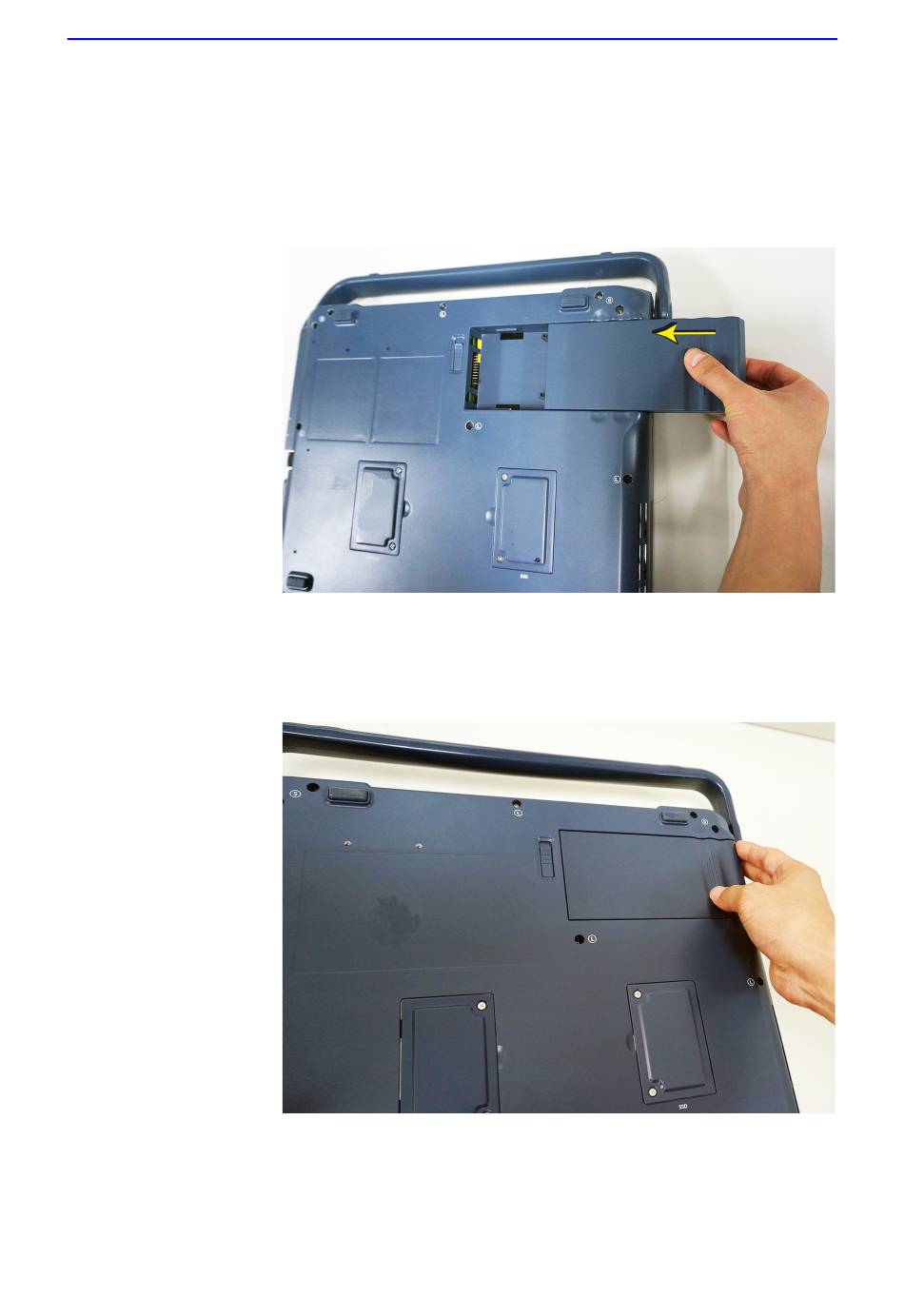

Figure 1-13. Place the battery on the bottom cover
3. Push the battery completely into the box until the battery is
locked and the battery lock is in the lock position.
Figure 1-14. Lock the battery
–
User Guide
Overview
1-19
