 2 CH quadrature encoder input
 16 CH isolated DI; 16 CH isolated DO
 Supports camera interfaces
 4 IEEE802.3at GbE LAN ports (PoE)
 4 USB 3.0 ports
 Power input: 24 VDC (uMin=19V/uMax=30V)
 -10°C to +60°C operating temperature range with W.T. SSD
 Supports 2 swappable 2.5" HDD
 Supports TPM 2.0 function

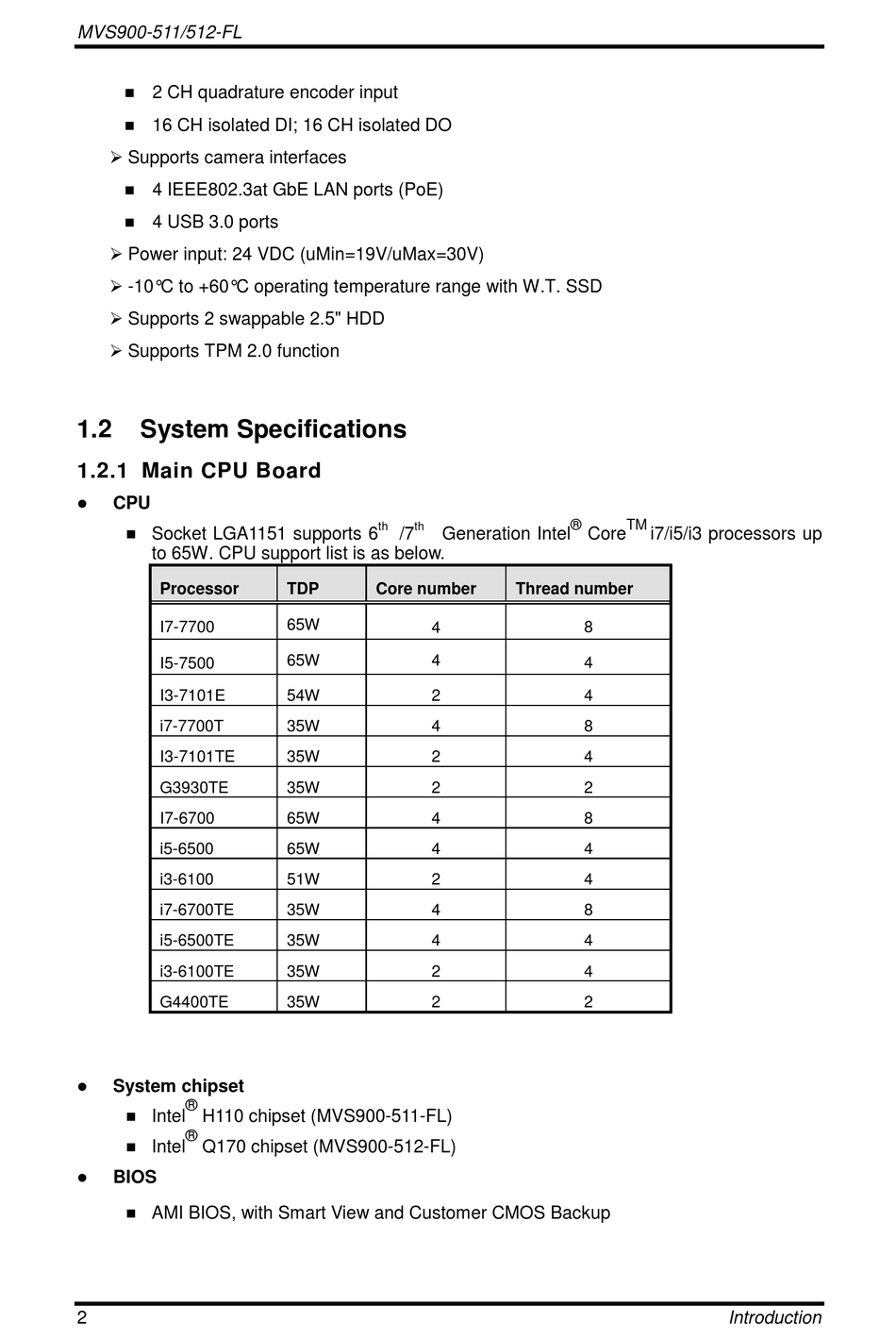

1.2

System Specifications

1.2.1 Main CPU Board

 CPU
 Socket LGA1151 supports 6
to 65W. CPU support list is as below.
Processor
I7-7700
I5-7500
I3-7101E
i7-7700T
I3-7101TE
G3930TE
I7-6700
i5-6500
i3-6100
i7-6700TE
i5-6500TE
i3-6100TE
G4400TE
 System chipset
®

Intel H110 chipset (MVS900-511-FL)
®
 Intel Q170 chipset (MVS900-512-FL)
 BIOS
 AMI BIOS, with Smart View and Customer CMOS Backup
2
th th
/7 Generation Intel
TDP Core number
65W
4
65W 4
54W 2
35W 4
35W 2
35W 2
65W 4
65W 4
51W 2
35W 4
35W 4
35W 2
35W 2
® TM
Core i7/i5/i3 processors up
Thread number
8
4
4
8
4
2
8
4
4
8
4
4
2
