1.6

Jumper Settings

Properly configure jumper settings on the SBC87511/SBC87512 to meet your application
purpose. Below you can find a summary table of all jumpers and onboard default settings.

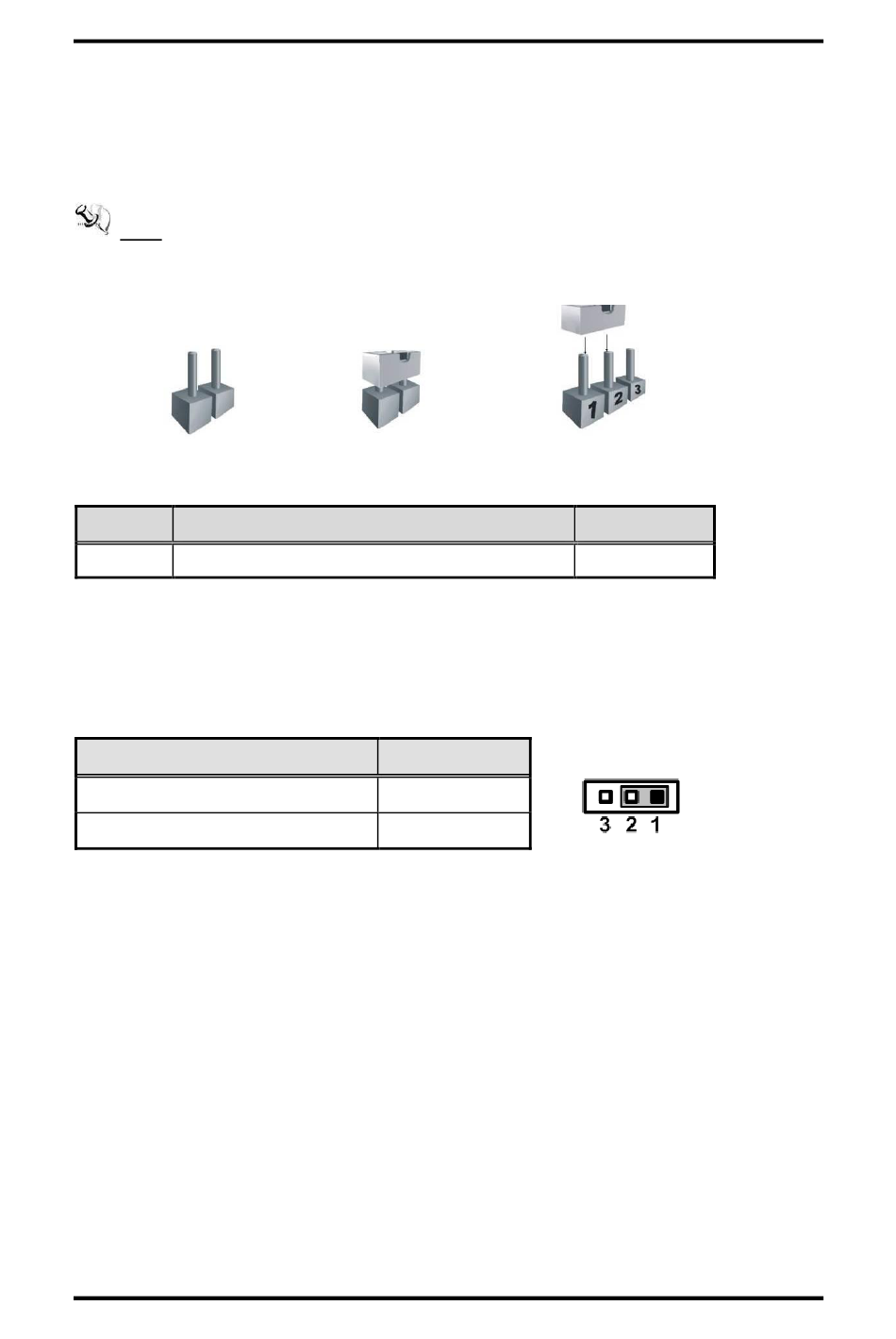

Note: How to setup Jumpers
Illustrations below show that a cap on a jumper is to "close" the jumper, whereas that off a
jumper is to "open" the jumper.
Jumper
JP1 Clear RTC : Normal
1.6.1

Restore BIOS Optimal Defaults

Put the jumper cap to pin 2-3 for a few seconds then move it back to pin 1-2. Doing this
procedure can restore BIOS optimal defaults.
Function
Normal operation (Default)
Restore BIOS optimal defaults
Introduction
[Open]
Descriptions
Setting
1-2 close
2-3 close
[Closed] [Pin1-2 Closed]
Short 1-2
MVS900-511/512-FL
Setting
9
