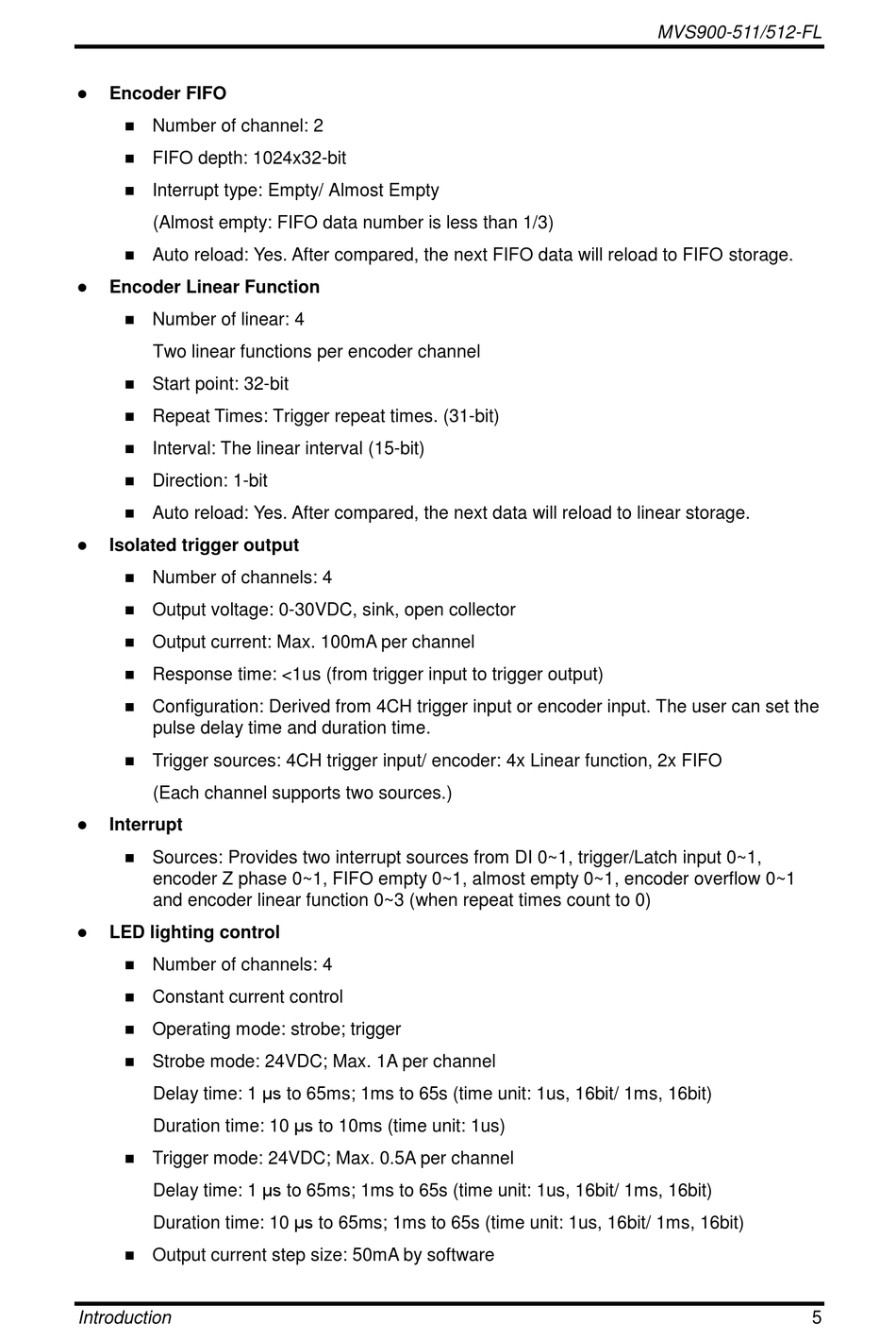

AXIOMTEK MVS900-511-FL Series User Manual page 11

 Encoder FIFO
 Number of channel: 2
 FIFO depth: 1024x32-bit
 Interrupt type: Empty/ Almost Empty
(Almost empty: FIFO data number is less than 1/3)

Auto reload: Yes. After compared, the next FIFO data will reload to FIFO storage.

Encoder Linear Function
 Number of linear: 4
Two linear functions per encoder channel
 Start point: 32-bit

Repeat Times: Trigger repeat times. (31-bit)
 Interval: The linear interval (15-bit)
 Direction: 1-bit
 Auto reload: Yes. After compared, the next data will reload to linear storage.
 Isolated trigger output

Number of channels: 4
 Output voltage: 0-30VDC, sink, open collector
 Output current: Max. 100mA per channel
 Response time: <1us (from trigger input to trigger output)
 Configuration: Derived from 4CH trigger input or encoder input. The user can set the
pulse delay time and duration time.
 Trigger sources: 4CH trigger input/ encoder: 4x Linear function, 2x FIFO
(Each channel supports two sources.)

Interrupt
 Sources: Provides two interrupt sources from DI 0~1, trigger/Latch input 0~1,
encoder Z phase 0~1, FIFO empty 0~1, almost empty 0~1, encoder overflow 0~1
and encoder linear function 0~3 (when repeat times count to 0)

LED lighting control
 Number of channels: 4
 Constant current control
 Operating mode: strobe; trigger

Strobe mode: 24VDC; Max. 1A per channel
Delay time: 1 μs to 65ms; 1ms to 65s (time unit: 1us, 16bit/ 1ms, 16bit)
Duration time: 10 μs to 10ms (time unit: 1us)
 Trigger mode: 24VDC; Max. 0.5A per channel
Delay time: 1 μs to 65ms; 1ms to 65s (time unit: 1us, 16bit/ 1ms, 16bit)
Duration time: 10 μs to 65ms; 1ms to 65s (time unit: 1us, 16bit/ 1ms, 16bit)
 Output current step size: 50mA by software
