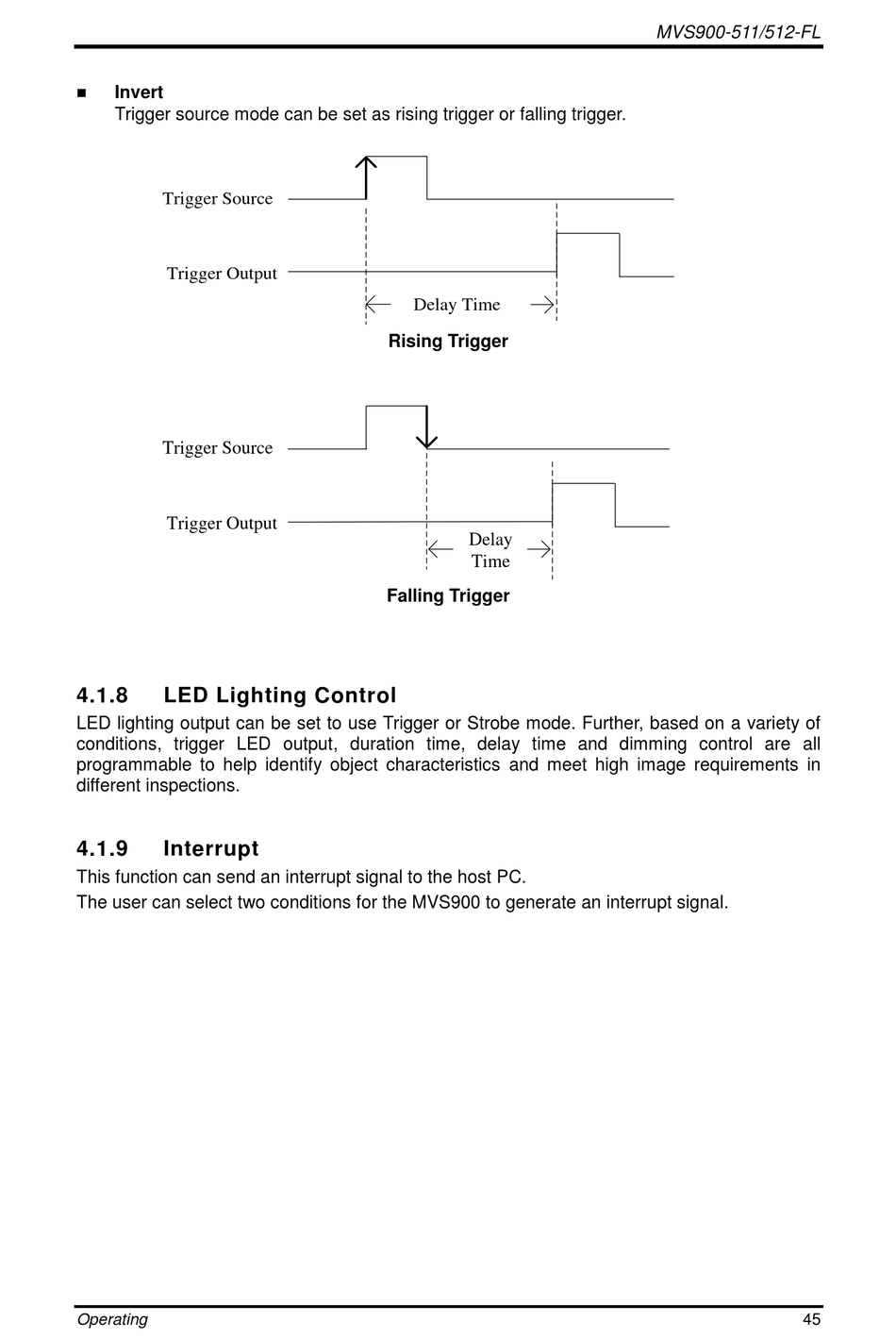

 Invert
Trigger source mode can be set as rising trigger or falling trigger.
Trigger Source
Trigger Output
Trigger Source
Trigger Output
4.1.8

LED Lighting Control

LED lighting output can be set to use Trigger or Strobe mode. Further, based on a variety of
conditions, trigger LED output, duration time, delay time and dimming control are all
programmable to help identify object characteristics and meet high image requirements in
different inspections.
4.1.9

Interrupt

This function can send an interrupt signal to the host PC.
The user can select two conditions for the MVS900 to generate an interrupt signal.
Operating
Delay Time
Rising Trigger
Delay
Time
Falling Trigger
