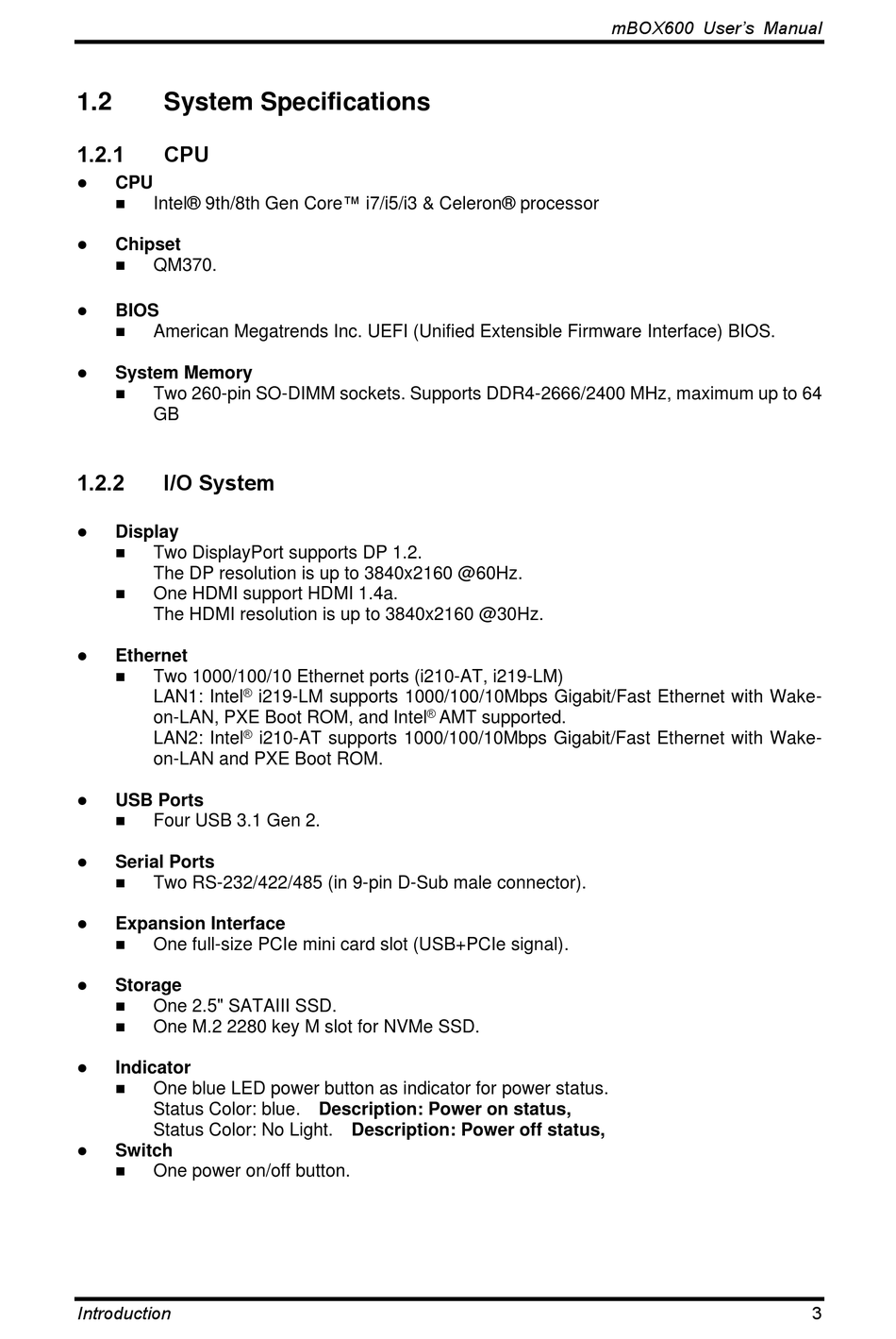

1.2

System Specifications

1.2.1

CPU

⚫ CPU
◼ Intel® 9th/8th Gen Core™ i7/i5/i3 & Celeron® processor
⚫ Chipset
◼
QM370.
⚫ BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
⚫
System Memory
◼ Two 260-pin SO-DIMM sockets. Supports DDR4-2666/2400 MHz, maximum up to 64
GB
1.2.2

I/O System

⚫ Display
◼ Two DisplayPort supports DP 1.2.
The DP resolution is up to 3840x2160 @60Hz.
◼ One HDMI support HDMI 1.4a.
The HDMI resolution is up to 3840x2160 @30Hz.
⚫ Ethernet
◼ Two 1000/100/10 Ethernet ports (i210-AT, i219-LM)
®
LAN1: Intel
on-LAN, PXE Boot ROM, and Intel
®
LAN2: Intel
on-LAN and PXE Boot ROM.
⚫ USB Ports
◼ Four USB 3.1 Gen 2.
⚫ Serial Ports
◼ Two RS-232/422/485 (in 9-pin D-Sub male connector).
⚫ Expansion Interface
◼ One full-size PCIe mini card slot (USB+PCIe signal).
⚫ Storage
◼ One 2.5" SATAIII SSD.
◼ One M.2 2280 key M slot for NVMe SSD.
⚫ Indicator
◼ One blue LED power button as indicator for power status.
Status Color: blue. Description: Power on status,
Status Color: No Light. Description: Power off status,
⚫ Switch
◼ One power on/off button.
Introduction
i219-LM supports 1000/100/10Mbps Gigabit/Fast Ethernet with Wake-
®
i210-AT supports 1000/100/10Mbps Gigabit/Fast Ethernet with Wake-
AMT supported.
