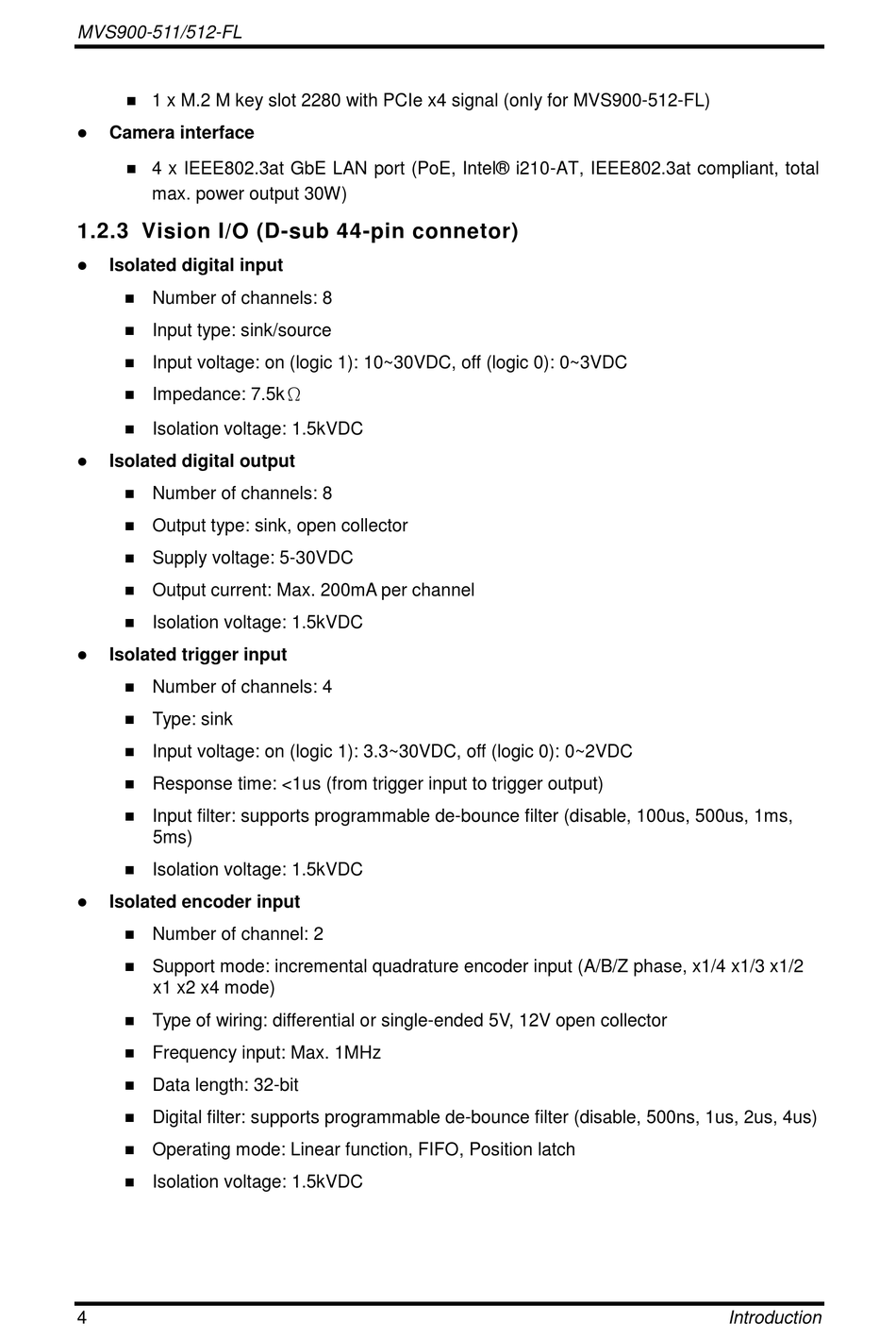

MVS900-511/512-FL
 1 x M.2 M key slot 2280 with PCIe x4 signal (only for MVS900-512-FL)
 Camera interface
 4 x IEEE802.3at GbE LAN port (PoE, Intel® i210-AT, IEEE802.3at compliant, total
max. power output 30W)

1.2.3 Vision I/O (D-sub 44-pin connetor)


Isolated digital input
 Number of channels: 8
 Input type: sink/source

Input voltage: on (logic 1): 10~30VDC, off (logic 0): 0~3VDC
 Impedance: 7.5kΩ
 Isolation voltage: 1.5kVDC
 Isolated digital output
 Number of channels: 8
 Output type: sink, open collector

Supply voltage: 5-30VDC
 Output current: Max. 200mA per channel
 Isolation voltage: 1.5kVDC
 Isolated trigger input
 Number of channels: 4

Type: sink
 Input voltage: on (logic 1): 3.3~30VDC, off (logic 0): 0~2VDC
 Response time: <1us (from trigger input to trigger output)
 Input filter: supports programmable de-bounce filter (disable, 100us, 500us, 1ms,
5ms)
 Isolation voltage: 1.5kVDC
 Isolated encoder input

Number of channel: 2
 Support mode: incremental quadrature encoder input (A/B/Z phase, x1/4 x1/3 x1/2
x1 x2 x4 mode)
 Type of wiring: differential or single-ended 5V, 12V open collector
 Frequency input: Max. 1MHz
 Data length: 32-bit
 Digital filter: supports programmable de-bounce filter (disable, 500ns, 1us, 2us, 4us)

Operating mode: Linear function, FIFO, Position latch
 Isolation voltage: 1.5kVDC
