MVS900-511/512-FL
Section 3
I/O Connection
3.1
I/O Connection (44-pin female I/O connector)
Refer to this section to connect any cables between the system and other devices.
Each of the following I/O figures illustrates their respective connection on the MVS900.
3.1.1
Isolated Digital Input

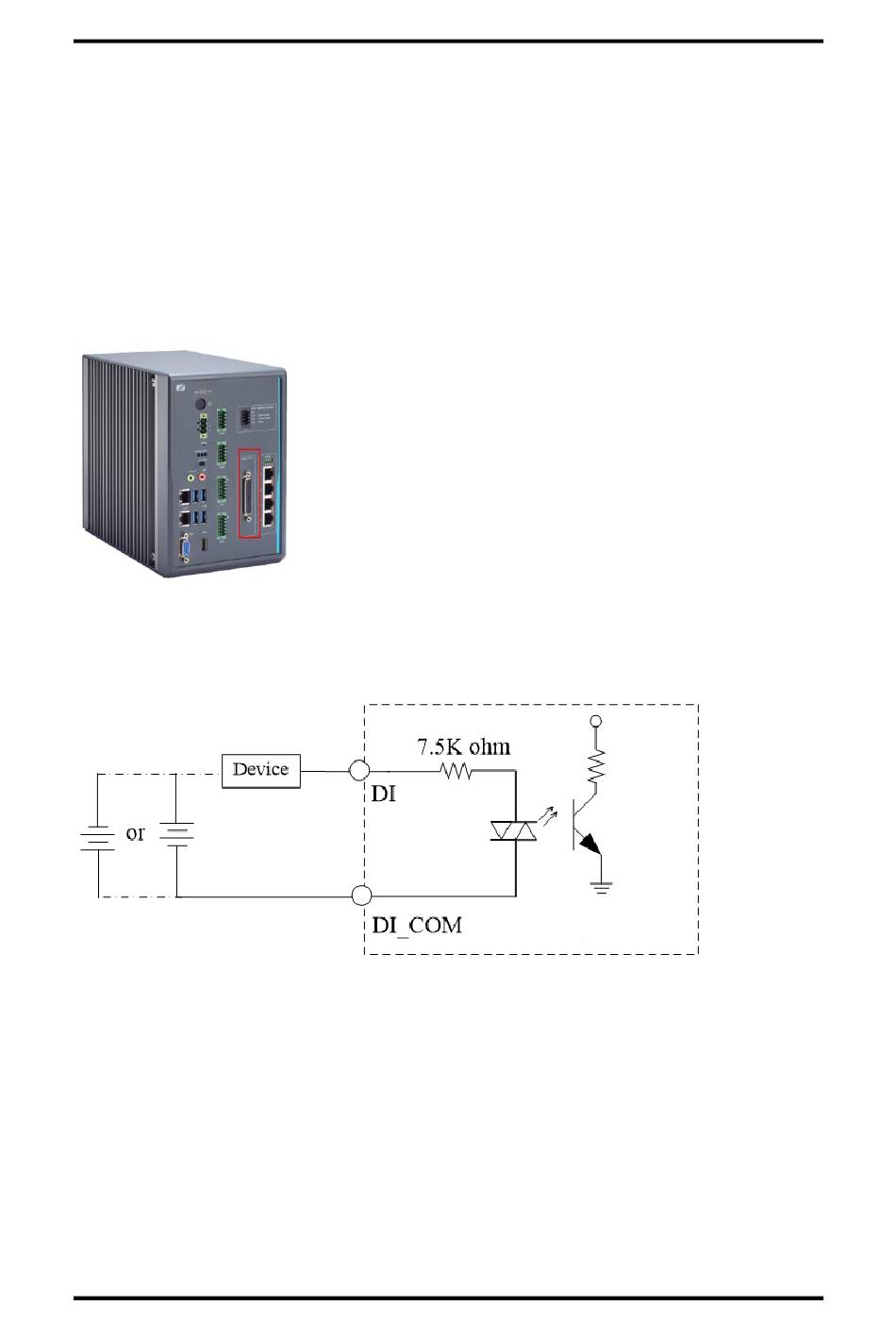

The figure shows how to connect between external input source and the system.
Each of the isolated digital input channels accepts 0~30 VDC with sink type and source type.
I/O Connection
35
