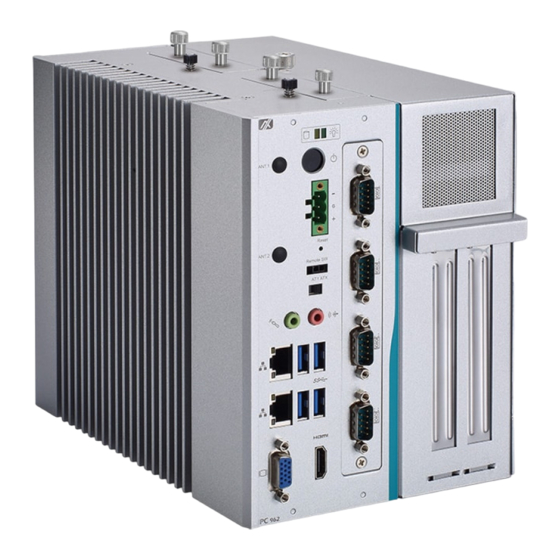

AXIOMTEK IPC962-511-FL Series User Manual

Industrial and fanless computers
Hide thumbs Also See for IPC962-511-FL Series:
Table of Contents

Advertisement

Quick Links

Download this manual
IPC962-511-FL series
IPC962-512-FL series
IPC964-512-FL Series
Industrial and Fanless Computers
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC962-511-FL Series and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK IPC962-511-FL Series

Summary of Contents for AXIOMTEK IPC962-511-FL Series

  • Page 1 IPC962-511-FL series IPC962-512-FL series IPC964-512-FL Series Industrial and Fanless Computers User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The IPC962-511-FL/IPC962-512-FL/IPC964-512-FL Series does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.

  • Page 4: Classification

    Classification Degree of production against electric shock: not classified Degree of protection against the ingress of water: IPX40 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation: Continuous Type of protection against electric shock: Class I equipment General Cleaning Tips You may need the following precautions before you begin to clean the computer .
  • Page 5 Cleaning Tools: Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals.

  • Page 6: Scrap Computer Recycling

    If the computer equipments need the maintenance or are beyond repair, we strongly recommended that you should inform your Axiomtek distributor as soon as possible for the suitable solution. For the computers that are no longer useful or no longer working well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement.

  • Page 7: Table Of Contents

    Table of Contents Safety Precautions ....................iii Classification ......................iv General Cleaning Tips ..................iv Scrap Computer Recycling .................. vi CHAPTER 1 INTRODUCTION ............... 1 General Description ................1 System Specifications ............... 2 1.2.1 Main CPU Board ....................2 1.2.2 I/O System ......................
  • Page 8 Installing the WIFI Module ............... 48 Wall mounting .................. 52 CHAPTER 3 AMI BIOS UTILITY ..............55 Starting ..................... 55 Navigation Keys ................56 Main Menu ..................57 Advanced Menu ................58 Chipset Menu ................... 72 Security Menu .................. 77 Boot Menu ..................

  • Page 9: Chapter 1 Introduction

    IPC962/IPC964 Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and a detailed specification of the IPC962- 511-FL/IPC962-512-FL/IPC964-512-FL Series. Chapter 1 includes the following sections:  General Description  System Specifications  Dimensions  I/O Outlets  Jumper Settings ...

  • Page 10: System Specifications

    IPC962/IPC964 Series User’s Manual System Specifications 1.2.1 Main CPU Board  ®  Socket LGA1151 for 6 Generation Intel Core i7/i5/i3 processors, up to 65W CPU support list is as below. Remark Generation Processor Core Thread Processor number number Base Frequency ®...

  • Page 11: 1.2.2 I/O System

    IPC962/IPC964 Series User’s Manual  Features  Fanless Operation  Compact & Front IO design  Supports two expansion slots(IPC962-511/IPC962-512) or four expansion slots(IPC964-512)  DC to DC power supply support 24VDC (uMin=19V/uMax=30V)  Supports two 2.5" HDD Bays (IPC962-512/IPC964-512 support RAID 0,1) ...

  • Page 12: 1.2.3 System Specification

    IPC962/IPC964 Series User’s Manual  Expansion Slot IPC962-511 / IPC962-512  1 x on board full-size PCI Express Mini Card slot with USB interface(IPC962-511)  1 x on board full-size PCI Express Mini Card slot with USB/PCIe interface(IPC962- 512)  AX96205: 1 PCIe x16 + 1 PCIe x4 ...

  • Page 13: Dimensions

    IPC962/IPC964 Series User’s Manual  -20℃ ~ 80℃  Humidity  10% ~ 90% (Non-condensing)  Dimensions IPC962-511 / IPC962-512  147.5 mm (5.81") (W) x 192 mm (7.56") (H) x 230 mm (9.06") (D) IPC964-512  188.1 mm (7.39") (W) x 192 mm (7.54") (H) x 230 mm (9.04") (D) (IPC964-512) Note: All specifications and images are subject to change without notice.
  • Page 14 IPC962/IPC964 Series User’s Manual IPC964-512 Introduction...

  • Page 15: I/O Outlets

    IPC962/IPC964 Series User’s Manual I/O Outlets The following figures show you I/O outlets on front and rear panels of the IPC962-511- FL/IPC962-512-FL/IPC964-512-FL Series. IPC962-511 Front Panel Introduction...
  • Page 16 IPC962/IPC964 Series User’s Manual IPC962-512 Front Panel Introduction...
  • Page 17 IPC962/IPC964 Series User’s Manual IPC964-512 Front Panel Introduction...

  • Page 18: Packing List

    Foot pad x 4  CPU grease x 1  Terminal block x 1  Remote switch cable x 1  Holder bracket x1 If you can not find this package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 19: Jumper Settings

    IPC962/IPC964 Series User’s Manual Jumper Settings Properly configure jumper settings on the SBC87511/SBC87512 to meet your application purpose. Below you can find a summary table of all jumpers and onboard default settings. Note: How to setup Jumpers That a cap on a jumper is to “close” the jumper, whereas that offs a jumper is to “open” the jumper.

  • Page 20: Connectors

    IPC962/IPC964 Series User’s Manual Connectors Connectors connect this board with other parts of the system. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Here is a summary table shows you all connectors on the board. Connector Label MINI CARD SLOT...

  • Page 21: Mini Card Slot (Cn3)

    IPC962/IPC964 Series User’s Manual 1.7.1 MINI CARD SLOT (CN3) There is a PCI-Express Mini Card connector on the top side applying USB 2.0. It supports an USB mini card. Pins Signals Pins Signals W AKE# +3.3VSB No use No use +1.5V CLKREQ# No use...

  • Page 22: Lan+Usb3.0 (Cn4、Cn5)

    IPC962/IPC964 Series User’s Manual 1.7.2 LAN+USB3.0 (CN4、CN5) The system has two RJ-45 connectors: LAN1 and LAN2. Ethernet connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end (phone jack) to a 1000/100/10-Base-T hub. 1000 100/10 Pins...

  • Page 23: Vga Connector (Cn6)

    IPC962/IPC964 Series User’s Manual 1.7.3 VGA Connector (CN6) The CN9 is a 15-pin D-Sub connector which is commonly used for CRT monitor. Pins Signals Pins Signals Green Blue N.C. DETECT N.C. DDC DATA Horizontal Vertical Sync Sync DDC CLK Introduction...

  • Page 24: Audio Connector (Cn7)

    IPC962/IPC964 Series User’s Manual 1.7.4 Audio Connector (CN7) These two audio jacks ideal are for Audio Mic-In and Audio Line-out. Pins Signals Line Out Microphone In 1.7.5 DC-in Phoenix Power Connector (CN8) The system supports 24VDC (uMin=19V/uMax=30V) Phoenix DC-in connector for system power input.

  • Page 25: Sata Power Connector (Scn1、Scn2)

    IPC962/IPC964 Series User’s Manual 1.7.7 SATA Power connector (SCN1、SCN2) Use SCN1、SCN2 for interfacing to SATA 2.5" HDD power supply. Pins Signals +12V level +5V level 1.7.8 SATA Connector (SATA1、SATA2) These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for high- speed SATA interfaces.

  • Page 26: At/Atx Switch (Sw2)

    IPC962/IPC964 Series User’s Manual 1.7.10 AT/ATX Switch (SW2) If you set AT/ATX switch to AT mode, the system will be automatically power on without pressing soft power button during power input; we can use this switch to achieve auto power on demand.

  • Page 27: Flexible Io - Com I/O Card Connector (Ax93511)

    IPC962/IPC964 Series User’s Manual 1.7.13 Flexible IO - COM I/O Card Connector (AX93511) The system has four serial ports. COM1~COM4 are RS-232/422/485 ports. Please refer to Chapter 3 for the detail of BIOS setting. ※COM1,COM2,COM3,COM4 Pins RS-232 RS-422 RS-485 DCD, Data Carrier Detect Data- Data+ RXD, Receive Data...

  • Page 28: Flexible Io - Isolated Com X4 I/O Card (Ax93516)

    IPC962/IPC964 Series User’s Manual 1.7.14 Flexible IO – Isolated COM x4 I/O Card (AX93516) The system has four serial ports. COM1~COM4 are RS-232/422/485 w/isolated 2KV ports. Please refer to Chapter 4 for the detail of BIOS setting. ※COM1,COM2,COM3,COM4 Pins RS-232 RS-422 RS-485 DCD,...

  • Page 29: Flexible Io - Isolated Com & Dio I/O Card (Ax93512)

    IPC962/IPC964 Series User’s Manual 1.7.15 Flexible IO – Isolated COM & DIO I/O Card (AX93512) The system has two serial ports.COM1~COM2 are RS-232/422/485 w/ isolated 1.5KVDC protection and DIO1~DIO2 8-in/8-out isolated 1.5KVDC DIO ports. Please refer to Chapter 4 for the detail of BIOS setting. ※COM1,COM2,DIO1,DIO2 CN1 (COM1)&...
  • Page 30 IPC962/IPC964 Series User’s Manual Digital I/O Specification (per port)  Isolated Digital Input The figure shows how to connect between external input source and the system. Each of the isolated digital input channels accepts 0~30 VDC with sink type and source type.

  • Page 31: Flexible Io- Usb3.0X2 & Comx2(Rs232/422/485) & Lan1(Ax93519)

    IPC962/IPC964 Series User’s Manual 1.7.16 Flexible IO- USB3.0x2 & COMx2(RS232/422/485) & LAN1(AX93519) The Universal Serial Bus connectors are compliant with USB 3.0 (5Gb/s), and ideally for installing USB peripherals such as scanner, camera and USB devices, etc. Pins Signal USB Port 0 Pins Signal USB Port 1 USB_VCC (+5V level standby USB_VCC (+5V level standby power)
  • Page 32 IPC962/IPC964 Series User’s Manual The system has two RJ-45 connectors: LAN1 Ethernet connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end (phone jack) to a 1000/100/10-Base-T hub. 1000 100/10 Pins Descriptions Base-T...

  • Page 33: Riser Card- Pcie X16 Gen3 & 1 Pcie X4 Gen 3(Ax96205)

     1 x system fan connectors  1 x 24V power connector (black, ATX1, for Axiomtek’s device only)  1 x 12V power connector (white, ATX2, for Axiomtek’s device only) Note: Please refer to chapter 1.2.2 for the maximum power rating limitation of expansion slots.
  • Page 34 Temperature Sensor Source Select (JP1) Use these jumpers (3x1-Pin P=2.54mm) to set temperature sensor source to operate form external or onboard mode. Onboard Sensor (Default) 1-2 close Function Setting On Board Thermistor Reserved ※ Pin 3 is reserved for Axiomtek’s device use only Introduction...

  • Page 35: Riser Card- Pcie X16 Gen3 & 1 Pci(Ax96206)

     1 x system fan connectors  1 x 24V power connector (black, ATX1, for Axiomtek’s device only)  1 x 12V power connector (white, ATX2, for Axiomtek’s device only) Note: Please refer to chapter 1.2.2 for the maximum power rating limitation of expansion slots.
  • Page 36 Temperature Sensor Source Select (JP1) Use these jumpers (3x1-Pin P=2.54mm) to set temperature sensor source to operate form external or onboard mode. Onboard Sensor (Default) 1-2 close Function Setting On Board Thermistor Reserved ※ Pin 3 is reserved for Axiomtek’s device use only. Introduction...

  • Page 37: Riser Card- 2 Pci(Ax96207)

     1 x system fan connectors  1 x 24V power connector (black, ATX1, for Axiomtek’s device only)  1 x 12V power connector (white, ATX2, for Axiomtek’s device only) Note: Please refer to chapter 1.2.2 for the maximum power rating limitation of expansion slots.
  • Page 38 Temperature Sensor Source Select (JP1) Use these jumpers (3x1-Pin P=2.54mm) to set temperature sensor source to operate form external or onboard mode. Onboard Sensor (Default) 1-2 close Function Setting On Board Thermistor Reserved ※ Pin 3 is reserved for Axiomtek’s device use only Introduction...

  • Page 39: Riser Card- Pcie X16 Gen3 & 3 Pcie X4 Gen 3(Ax96410)

     1 x system fan connectors  1 x 24V power connector (black, ATX1, for Axiomtek’s device only)  1 x 12V power connector (white, ATX2, for Axiomtek’s device only) Note: Please refer to chapter 1.2.2 for the maximum power rating limitation of expansion slots.
  • Page 40 Temperature Sensor Source Select (JP1) Use these jumpers (3x1-Pin P=2.54mm) to set temperature sensor source to operate form external or onboard mode. Onboard Sensor (Default) 1-2 close Function Setting On Board Thermistor Reserved ※ Pin 3 is reserved for Axiomtek’s device use only.. Introduction...

  • Page 41: Riser Card- Pcie X16 Gen3 & 1 Pcie X4 Gen 3 & 2 Pci(Ax96411)

     1 x system fan connectors  1 x 24V power connector (black, ATX1, for Axiomtek’s device only)  1 x 12V power connector (white, ATX2, for Axiomtek’s device only) Note: Please refer to chapter 1.2.2 for the maximum power rating limitation of expansion slots.
  • Page 42 Temperature Sensor Source Select (JP1) Use these jumpers (3x1-Pin P=2.54mm) to set temperature sensor source to operate form external or onboard mode. Onboard Sensor (Default) 1-2 close Function Setting On Board Thermistor Reserved ※ Pin 3 is reserved for Axiomtek’s device use only. Introduction...

  • Page 43: Chapter 2 Hardware Installation

    IPC962/IPC964 Series User’s Manual CHAPTER 2 HARDWARE INSTALLATION The IPC962-511-FL/IPC962-512-FL/IPC964-512-FL Series are convenient for your various hardware configurations, such as CPU (Central Processing Unit), Memory Module, HDD (Hard Disk Drive) and PCIe/PCI card. The chapter 2 will show you how to install the hardware. It includes: Installing the Processor The Intel®...
  • Page 44 IPC962/IPC964 Series User’s Manual Procedure of Installation: Step 1 Turn off the system. Step 2 Disconnect the power connector. Step 3 Loosen screws to remove the Heatsink cover from the chassis. Step 4 After opening the HS cover, you can locate the CPU socket as marked. Align pins of the CPU with pin holes of the socket.

  • Page 45: Installing The Memory Module

    IPC962/IPC964 Series User’s Manual Step 5 Then, applying thermal grease on top of the CPU Step 6 After install all components, please close the HS cover back to the chassis and fasten all screws. Installing the Memory Module Step 1 Turn off the system.
  • Page 46 IPC962/IPC964 Series User’s Manual Step 4 Install the memory module into the socket and push it firmly down until it is fully seated. The socket latches are clipped on to the edges of the SO-DIMM.  Step 5 After install the ram modules, please close the Heatsink cover back to the chassis and fasten all screws.

  • Page 47: Installing The Hard Disk Drive

    IPC962/IPC964 Series User’s Manual Installing the Hard Disk Drive The IPC962-511-FL/IPC962-512-FL/IPC964-512-FL Series offers a convenient drive bay module for users to install HDD. The system offers users two 2.5” Hard Disk Drive for installation. Please follow the steps: Step 1 Turn off the system.

  • Page 48: Installing The Fan Module And Pci Or Pcie Card

    IPC962/IPC964 Series User’s Manual Installing the Fan Module and PCI or PCIe Card IPC962-511-FL/IPC962-512-FL/IPC964-512-FL provides two/four PCI or PCIe slots for expansion. The procedure of installing the Fand module and PCI / PCIe expansion card into system is instructed below. Step 1 Completed the fan module as below procedure.
  • Page 49 IPC962/IPC964 Series User’s Manual Step 5 Unscrew the fan bracket, fasten the fan module into expansion box and plug two cables to two connectors.   Step 6 Locate the PCI or PCIe slots and remove the slot bracket which you want to add the card in.
  • Page 50 IPC962/IPC964 Series User’s Manual Step 8 Take the holder bracket and screws from the accessory box. Fasten 2 screws to fix the holder bracket. Internal chassis space for add-in cards. IPC962-511/IPC962-512 w/o fan Hardware Installation...
  • Page 51 IPC962/IPC964 Series User’s Manual Please be noted that 238mm is the maximum internal length for add-in card Note: with I/O bracket, in order to avoid heat dissipation potential, it have to leave 30mm between add-on card and system. hen using the connector on riser card, it is strongly recommended that Note: W add-in cards be used with 167.65mm maximum length.
  • Page 52 IPC962/IPC964 Series User’s Manual IPC962-511/IPC962-512 w/fan Please be noted that 229mm is the maximum internal length for add-in card Note: with I/O bracket, in order to avoid heat dissipation potential, it have to leave 50mm between add-on card and option fan. hen using the connector on riser card, it is strongly recommended that Note: W add-in cards be used with 167.65mm maximum length.
  • Page 53 IPC962/IPC964 Series User’s Manual IPC964-512 w/o fan Please be noted that 238mm is the maximum internal length for add-in card Note: with I/O bracket, in order to avoid heat dissipation potential, it have to leave 30mm between add-in card and system. hen using the connector on riser card, it is strongly recommended that Note: W add-in cards be used with 167.65mm maximum length.
  • Page 54 IPC962/IPC964 Series User’s Manual IPC964-512 w/fan Please be noted that 214mm is the maximum internal length for add-in card Note: with I/O bracket, in order to avoid heat dissipation potential, it have to leave 40mm between add-on card and option fan. hen using the connector on riser card, it is strongly recommended that Note: W add-in cards be used with 167.65mm maximum length.
  • Page 55 Please be noted that holder bracket is using for add-in card which is 111mm Note: height.. Step 9 Close the cover back to the chassis and fasten all screws.   Note: Please be informed IPC962-511-DC-FL-CCC, IPC962-512-DC-FL-CCC and IPC964-512-DC-FL-CCC can’t be pr-installed add-in cards and mini card module at Axiomtek. Hardware Installation...

  • Page 56: Installing The Wifi Module

    IPC962/IPC964 Series User’s Manual Installing the WIFI Module The IPC962-511, IPC962-512 and IPC964-512 come with a Mini card slot and an USB connector for users to install a wireless LAN card. Please refer to the following instructions and illustrationfor the installation of the wireless LAN. Installing the WIFI Module via Mini card Step 1 Turn off the system.
  • Page 57 IPC962/IPC964 Series User’s Manual Step 5 Remove the antenna plug from the top of back cover, and then install the antenna on the antenna connector. Note: Please use an extended bracket when using a half-size Mini card  1 x on board full-size PCI Express Mini Card slot with USB interface(IPC962-511) ...
  • Page 58 IPC962/IPC964 Series User’s Manual Installing the WIFI Module via USB Step 1 Turn off the system. Step 2 Disconnect the power connector. Step 3 Loosen screws to remove the Heatsink cover from the chassis. Step 4 Remove the antenna plug from the top of back cover, and then install the antenna on the antenna connector Step 5 Unscrew the thumbscrew and separating the cover from the expansion box...
  • Page 59 IPC962/IPC964 Series User’s Manual Step 6 Connect the antenna to wifi module via the bottom of main board.  Step 7 Connect USB cable to wifi module. Step 8 Stick wifi module on chassis. Locate the antenna cable and connect it to the wireless LAN card, then connect the USB cable to USB connector.

  • Page 60: Wall Mounting

    IPC962/IPC964 Series User’s Manual Wall mounting IPC962-511-FL/IPC962-512-FL/IPC964-512-FL provides versatile wall mount kits for optional. Hardware Installation...
  • Page 61 IPC962/IPC964 Series User’s Manual Step1 Find out the screws as below marked on chassis. Step2 Assemble the wall mount bracket to the chassis, and fix the screws. Step3 Wall mounting installation completed. Hardware Installation...
  • Page 62 IPC962/IPC964 Series User’s Manual This page is intentionally left blank. Hardware Installation...

  • Page 63: Chapter 3 Ami Bios Utility

    IPC962/IPC964 Series User’s Manual CHAPTER 3 AMI BIOS UTILITY The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a 16MB flash chip to save the setup information whenever the power is turned off. This chapter provides users with detailed description about how to set up basic system configuration through the AMI BIOS setup utility.

  • Page 64: Navigation Keys

    IPC962/IPC964 Series User’s Manual Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include <F1>, <F2>, <Enter>, <ESC>, <Arrow> keys, and so on. Note: Some of the navigation keys differ from one screen to another.

  • Page 65: Main Menu

    IPC962/IPC964 Series User’s Manual Main Menu The first time you enter the setup utility, you will be in the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 66: Advanced Menu

    IPC962/IPC964 Series User’s Manual Advanced Menu  Launch PXE OpROM Use this item to enable or disable the boot ROM function of the onboard LAN chip when the system boots up. The Advanced menu also allows users to set configuration of the CPU and other system devices.
  • Page 67 IPC962/IPC964 Series User’s Manual  HW Monitor This screen monitors hardware health. AMI BIOS Utility...
  • Page 68 IPC962/IPC964 Series User’s Manual  Ethercat Configuration Setting “Disable” mode in the following 5 times to support the ethercat. AMI BIOS Utility...
  • Page 69 IPC962/IPC964 Series User’s Manual  AMI BIOS Utility...
  • Page 70 IPC962/IPC964 Series User’s Manual  ACPI Settings ACPI configuration can be configured in ACPI Settings. A description of the selected item appears on the right side of the screen.  ACPI Sleep State Select the highest ACPI sleep state the system will enter when the suspend button is pressed.
  • Page 71 IPC962/IPC964 Series User’s Manual  Tursted Computing Select the Security Device Support to enable or disable the TPM function. AMI BIOS Utility...
  • Page 72 IPC962/IPC964 Series User’s Manual  CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option.  Intel Virtualization Technology This item allows a hardware platform to run multiple operating systems separately and simultaneously, enabling one system to virtually function as several systems.
  • Page 73 IPC962/IPC964 Series User’s Manual  SATA Configuration You can read the current installed hardware configurations from those SATA ports in the SATA Configuration menu. During system boot up, BIOS will detect the present SATA devices automatically. AMI BIOS Utility...
  • Page 74 IPC962/IPC964 Series User’s Manual  FCH-FW Configuation Display ME firmware information AMI BIOS Utility...
  • Page 75 IPC962/IPC964 Series User’s Manual  USB Configuration USB configuration can be configured here by selecting and changing each item. A description of the selected item appears on the right side of the screen.  USB Devices Display all detected USB devices. AMI BIOS Utility...
  • Page 76 IPC962/IPC964 Series User’s Manual  Module Configuration  Serial Port 1~4 Configuration Use this item to set parameters of serial port 1 to 4. AMI BIOS Utility...
  • Page 77 IPC962/IPC964 Series User’s Manual  Serial Port (1~4) Configuration  COM Port Type Use this item to set parameters of RS232/422/485. AMI BIOS Utility...
  • Page 78 IPC962/IPC964 Series User’s Manual  Compatibiity Support Module Configuration AMI BIOS Utility...
  • Page 79 IPC962/IPC964 Series User’s Manual  Platfrom Misc Configuration AMI BIOS Utility...

  • Page 80: Chipset Menu

    IPC962/IPC964 Series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► System Agent (SA) Configuration For items marked with “”, please press <Enter>...
  • Page 81 IPC962/IPC964 Series User’s Manual  System Agent (SA) Configuration This screen shows System Agent information and provides function for specifying related parameters. For items marked with “”, please press <Enter> for more options. AMI BIOS Utility...
  • Page 82 IPC962/IPC964 Series User’s Manual  PEG Port Configuration  PEG Port Feature Configuration AMI BIOS Utility...
  • Page 83 IPC962/IPC964 Series User’s Manual  Graphic Configuration  Display Select Allow you to select which graphics controller to use as the primary boot device. AMI BIOS Utility...
  • Page 84 IPC962/IPC964 Series User’s Manual  Memory Configuration AMI BIOS Utility...

  • Page 85: Security Menu

    IPC962/IPC964 Series User’s Manual Security Menu The Securisc nu allows users to change the security settings for the system.  Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled).  User Password This item indicates whether an user password has been set (installed or uninstalled).

  • Page 86: Boot Menu

    IPC962/IPC964 Series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.  Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock. ...

  • Page 87: Save & Exit Menu

    IPC962/IPC964 Series User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When finish the system configuration settings, select this option to leave Setup and return to Main Menu.
  • Page 88 IPC962/IPC964 Series User’s Manual  Discard Changes and Reset Select this option to quit Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Reset from the Save & Exit menu and press <Enter>. Select Yes to discard changes and reset. ...

  • Page 89: Appendix Awatchdog Timer

    IPC962/IPC964 Series User’s Manual APPENDIX A WATCHDOG TIMER A.1 About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by operator for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 90 IPC962/IPC964 Series User’s Manual Begin Begin Next Next Enable and Initialize Enable and Initialize Watchdog Timer Watchdog Timer Next Next Program “A” Program “A” Next Next Disable Watchdog Reset Watchdog Timer Timer Next Next Watchdog Timer...

  • Page 91: A.3 Sample Program

    IPC962/IPC964 Series User’s Manual A.3 Sample Program Assembly sample code : ;Enable WDT: dx,2Eh al,87 ;Un-lock super I/O dx,al dx,al ;Select Logic device: dx,2Eh al,07h dx,al dx,2Fh al,07h dx,al ;Enable WDT base address: dx,2Eh al,30h dx,al dx,2Fh al,01h dx,al ;Activate WDT: dx,2Eh al,0F0h dx,al...
  • Page 92 IPC962/IPC964 Series User’s Manual al,0F6h dx,al dx,2Fh al,Mh ;M=00h,01h,...FFh (hex),Value=0 to 255 Note dx,al ;(see below) ;Set Second or Minute : dx,2Eh al,0F5h dx,al dx,2Fh Note al,Nh ;N=71h or 79h(see below) dx,al Note: If N=71h, the time base is set to second. M = time value 00: Time-out disable 01: Time-out occurs after 1 second...
  • Page 93 IPC962/IPC964 Series User’s Manual If N=79h, the time base is set to minute. M = time value 00: Time-out disable 01: Time-out occurs after 1 minute 02: Time-out occurs after 2 minutes 03: Time-out occurs after 3 minutes FFh: Time-out occurs after 255 minutes Watchdog Timer...
  • Page 94 IPC962/IPC964 Series User’s Manual This page is intentionally left blank. Watchdog Timer...

  • Page 95: Appendix B Configuring Sata For Raid

    IPC962/IPC964 Series User’s Manual APPENDIX B CONFIGURING SATA FOR RAID ® Configuring SATA Hard Drive(s) for RAID (Controller: Intel Q170) Before you begin the SATA configuration, please prepare four SATA hard drives (to ensure optimal performance, it is recommended that you use two hard drives with the identical model and capacity).
  • Page 96 IPC962/IPC964 Series User’s Manual Turn on your system, and then press the <Del> button to enter BIOS Setup during 2.1. running POST (Power-On Self-Test). If you want to create RAID, just go to the Advanced Settings menu\SATA Configuration, select the “SATA Mode Selection”, and press <Enter>...
  • Page 97 IPC962/IPC964 Series User’s Manual Save and exit the BIOS Setup. 2.2. 3. Configuring RAID by the RAID BIOS. Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed if you do not want to create a RAID. After the POST memory testing and before the operating system booting, a message 3.1.
  • Page 98 IPC962/IPC964 Series User’s Manual After entering the Create Volume Menu screen, you can type the disk array name with 3.3. 1~16 letters (letters cannot be special characters) in the item “Name:”. Configuring SATA For RAID...
  • Page 99 IPC962/IPC964 Series User’s Manual When finished, press <Enter> to select a RAID level. There are two RAID levels: 3.4. RAID0, RAID1. Select a RAID level and press <Enter>. Note: eBOX671-517 support RAID0, RAID1 Only. Configuring SATA For RAID...
  • Page 100 IPC962/IPC964 Series User’s Manual Set the stripe block size. The KB is the standard unit of stripe block size. The stripe 3.5. block size can be 4KB to 128KB. After the setting, press <Enter> for the array capacity. After setting all the items on the menu, select Create Volume and press <Enter> to 3.6.
  • Page 101 IPC962/IPC964 Series User’s Manual When prompting the confirmation, press <Y> to create this volume, or <N> to cancel 3.7. the creation. After the creation is completed, you will see detailed information about the RAID array in the Disk/Volume Information section, including RAID mode, disk block size, disk name, disk capacity, etc.
  • Page 102 IPC962/IPC964 Series User’s Manual Delete RAID volume If you want to delete a RAID volume, select the Delete RAID Volume option in Main Menu. Press <Enter> and follow on-screen instructions. Please press <Esc> to exit the RAID BIOS utility. Now, you can proceed to install a SATA driver controller and the operating system.

This manual is also suitable for:

Ipc962-512-fl seriesIpc964-512-fl series
