UST500-517-FL Series user's Manual
Features
 LGA1151 socket 7
processor (Kaby Lake / Skylake) with Intel
 Supporting wide range of DC power input from 9 to 36VDC
 One DVI-D, one HDMI and VGA with triple view supported
 Multiple flexible I/O modules supported
Reliable and Stable Design
The UST500-517-FL embedded system supports 7
®
and Celeron processors, with high flexibility and multi-functional design to present the
best solution for any industrial field applications.
Flexible Connectivity
The UST500-517-FL comes with rich I/O interfaces including two RS-232/422/485 ports,
four USB 3.0 ports, 6-CH isolated digital Input / 2-CH isolated digital Output, and sixteen
GbE LAN ports.
Embedded O.S. Supported
With the Skylake processor, UST500-517-FL can support W IN 7/8/10 and Linux
With the Kabylake processor, UST500-517-FL can support Windows

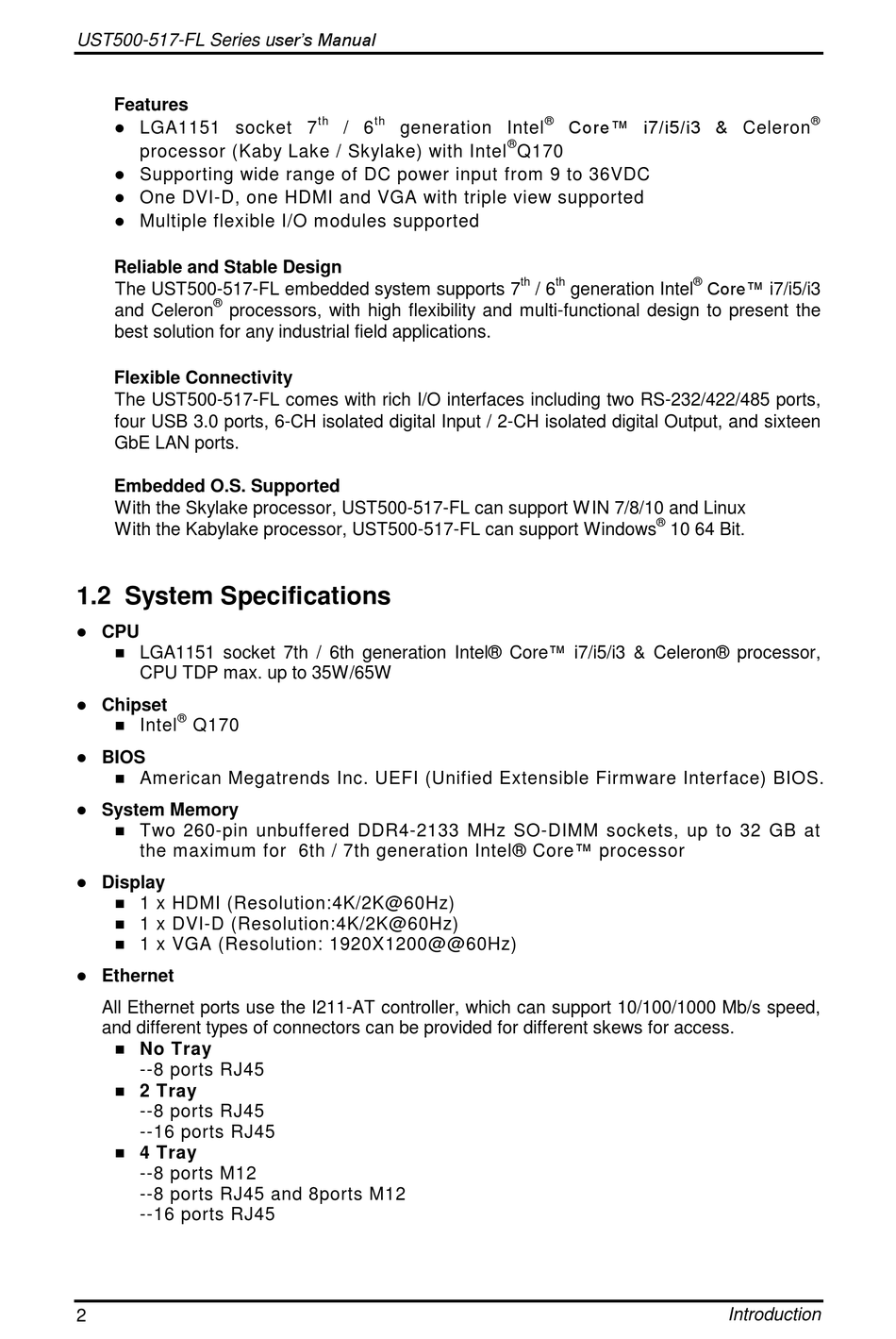

1.2 System Specifications

 CPU
 LGA1151 socket 7th / 6th generation Intel® Core™ i7/i5/i3 & Celeron® processor,
CPU TDP max. up to 35W/65W
 Chipset
®
 Intel Q170
 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
 System Memory

Two 260-pin unbuffered DDR4-2133 MHz SO-DIMM sockets, up to 32 GB at
the maximum for 6th / 7th generation Intel® Core™ processor
 Display
 1 x HDMI (Resolution:4K/2K@60Hz)

1 x DVI-D (Resolution:4K/2K@60Hz)
 1 x VGA (Resolution: 1920X1200@@60Hz)
 Ethernet
All Ethernet ports use the I211-AT controller, which can support 10/100/1000 Mb/s speed,
and different types of connectors can be provided for different skews for access.
 No Tray
--8 ports RJ45

2 Tray
--8 ports RJ45
--16 ports RJ45
 4 Tray
--8 ports M12
--8 ports RJ45 and 8ports M12
--16 ports RJ45
2
th th
/ 6 generation Intel
®
Core™ i7/i5/i3 & Celeron
®
Q170
th th
/ 6 generation Intel
®
10 64 Bit.
®
®
Core™ i7/i5/i3
Introduction
