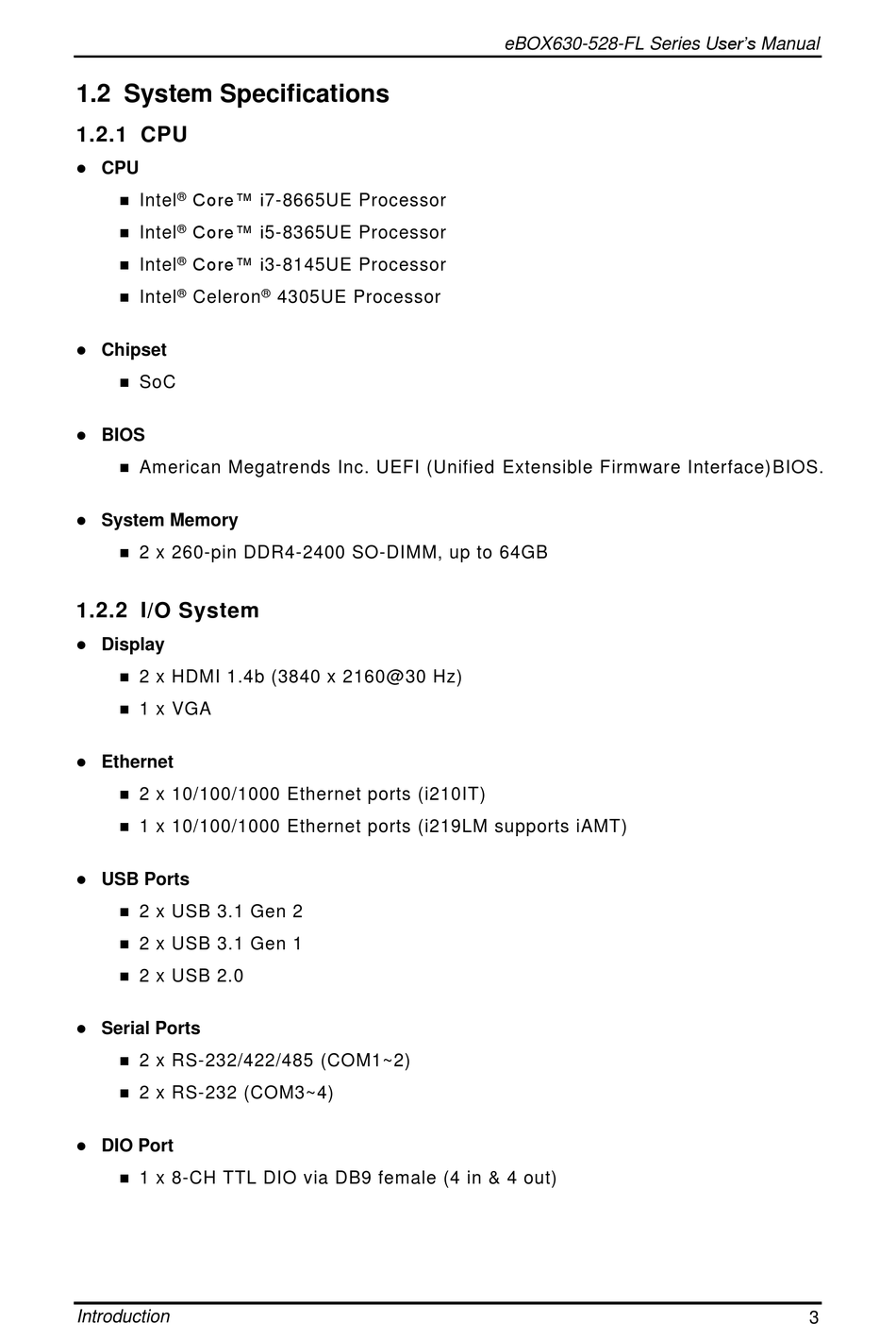

1.2 System Specifications

1.2.1 CPU

⚫ CPU
Core™ i7-8665UE Processor
®
◼ Intel
Core™ i5-8365UE Processor
®
◼ Intel
Core™ i3-8145UE Processor
◼ ®
Intel
®
◼ Intel Celeron
⚫ Chipset
◼ SoC
⚫ BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface)BIOS.
⚫ System Memory
◼
2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB

1.2.2 I/O System

⚫ Display
◼
2 x HDMI 1.4b (3840 x 2160@30 Hz)
◼ 1 x VGA
⚫ Ethernet
◼ 2 x 10/100/1000 Ethernet ports (i210IT)
◼ 1 x 10/100/1000 Ethernet ports (i219LM supports iAMT)
⚫ USB Ports
◼
2 x USB 3.1 Gen 2
◼ 2 x USB 3.1 Gen 1
◼ 2 x USB 2.0
⚫ Serial Ports
◼ 2 x RS-232/422/485 (COM1~2)
◼ 2 x RS-232 (COM3~4)
⚫ DIO Port
◼
1 x 8-CH TTL DIO via DB9 female (4 in & 4 out)
Introduction
®
4305UE Processor
