MVS900-511/512-FL
1.7.2
LAN+USB3.0

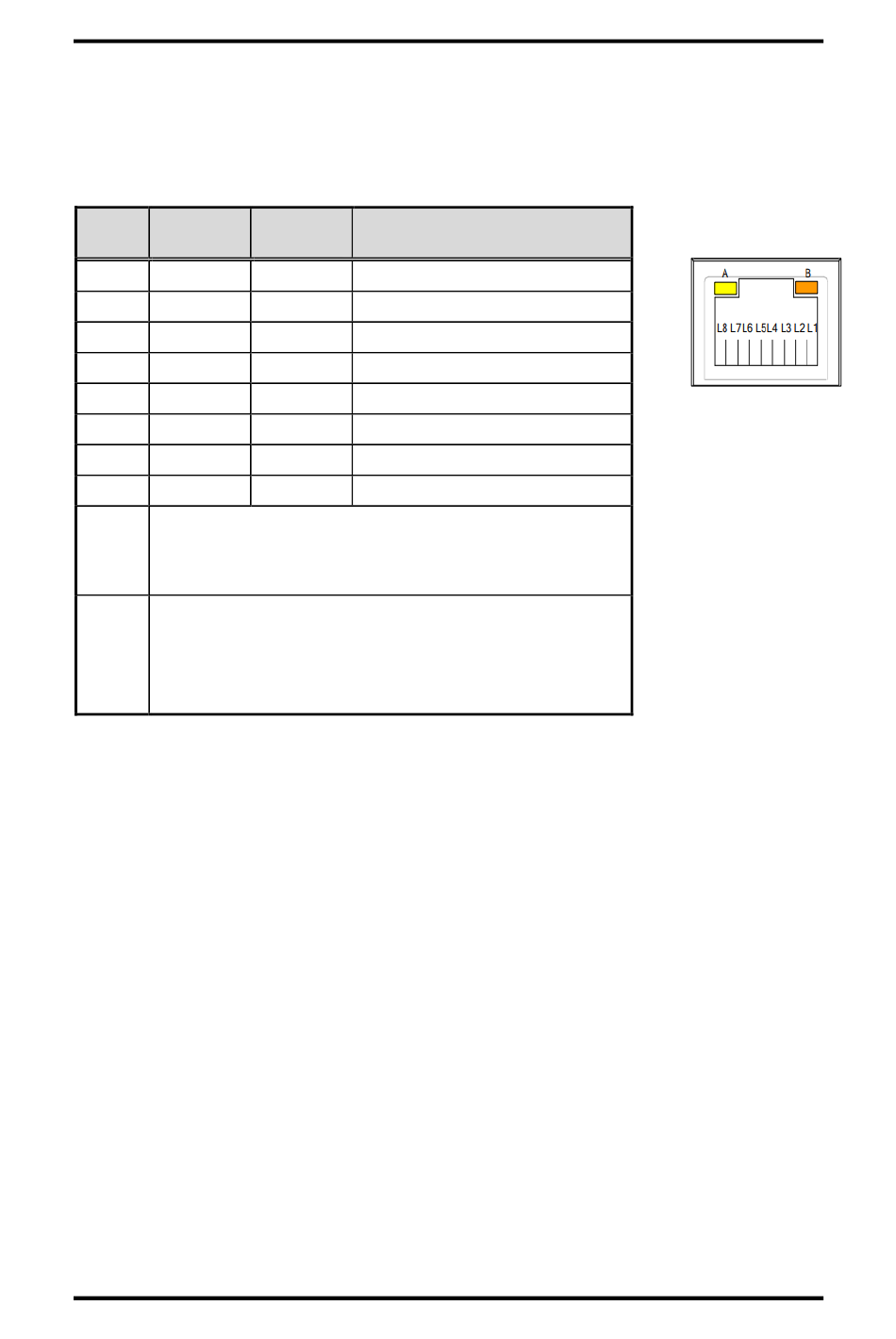

The system has two RJ-45 connectors: LAN1 and LAN2. Ethernet connection can be
established by plugging one end of the Ethernet cable into this RJ-45 connector and the other
end (phone jack) to a 1000/100/10-Base-T hub.
1000
Pins
Base-T
L1
BI_DA+
L2
BI_DA-
L3
BI_DB+
L4
BI_DC+
L5
BI_DC-
L6
BI_DB-
L7
BI_DD+
L8
BI_DD-
Active link LED (Yellow)
A
Off: No link
Blinking: Data activity detected
Speed LED
1000: Orange
B
100: Green
10: OFF
12
100/10
Descriptions
Base-T
TX+
Bidirectional or transmit data+
TX-
Bidirectional or transmit data-
RX+
Bidirectional or receive data+
N.C.
Bidirectional or not connected
N.C.
Bidirectional or not connected
RX-
Bidirectional or receive data-
N.C.
Bidirectional or not connected
N.C.
Bidirectional or not connected
