MVS900-511/512-FL

2.4

Installing foot pad

The MVS900 series provides four foot pad.

Step 1

Turn off the system.

Step 2

Disconnect the power connector.

Step 3

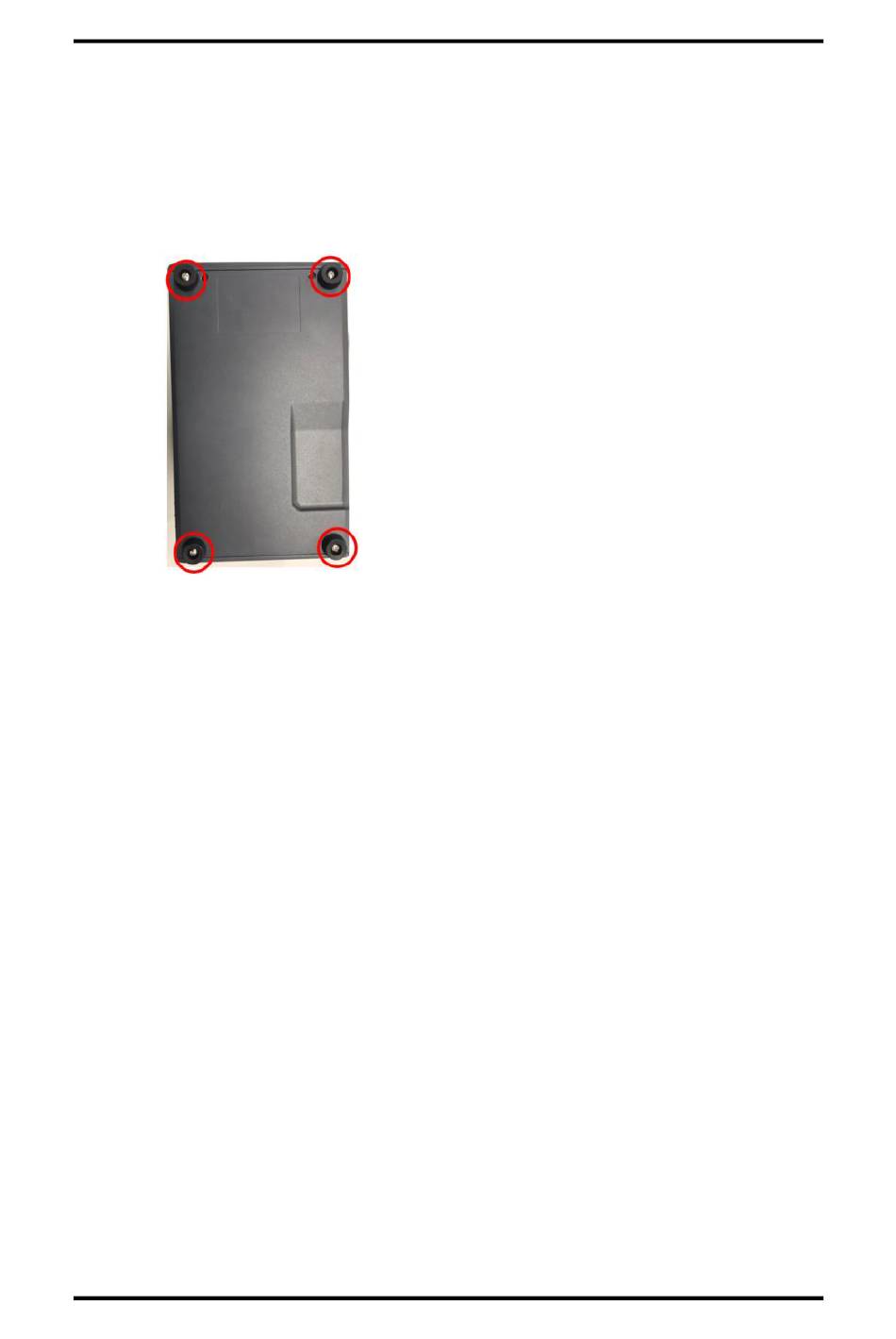

Take the foot pads from the accessory pack. Turn the system upside and then

screw the foot pads into system.

Hardware Installation
