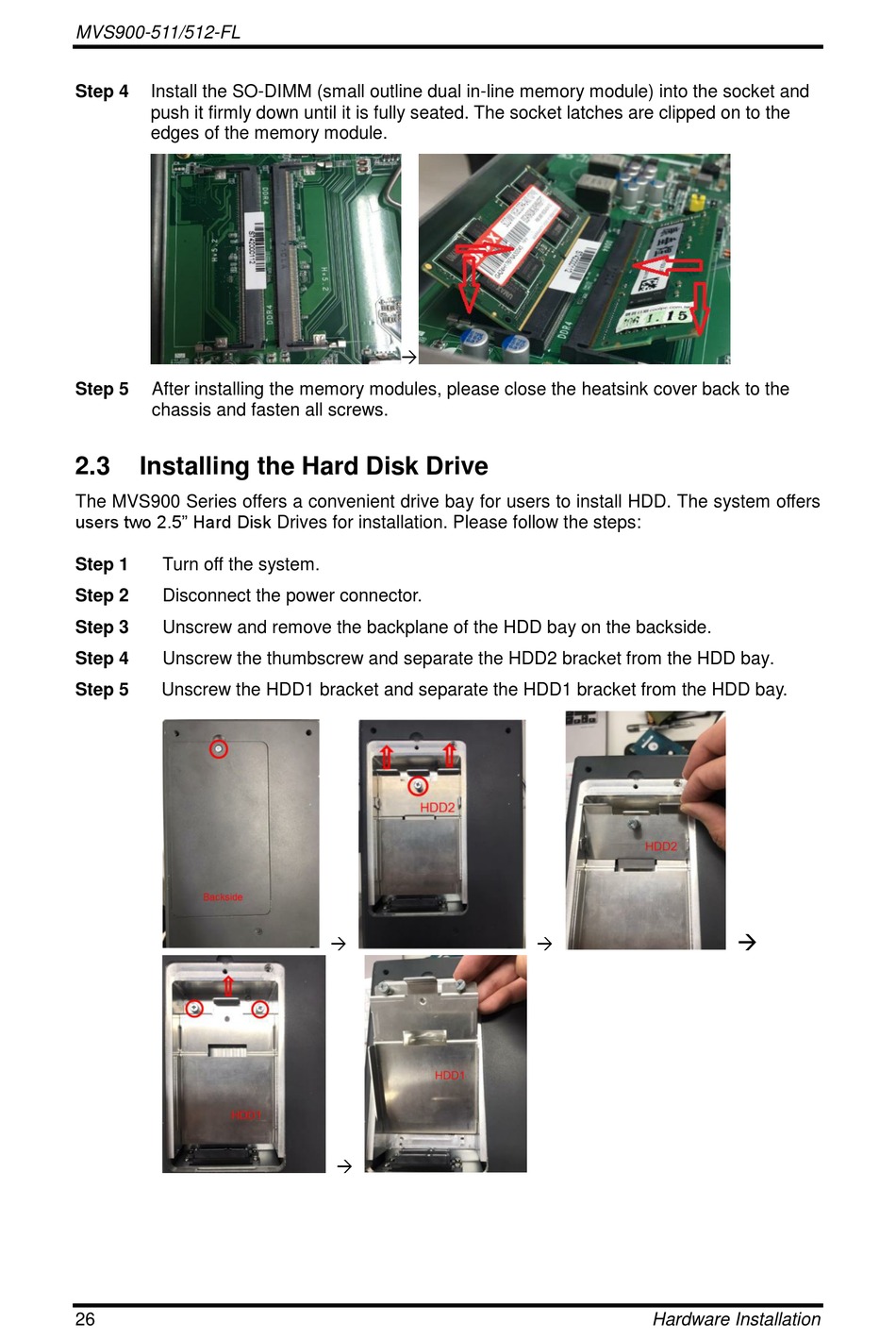

MVS900-511/512-FL
Step 4 Install the SO-DIMM (small outline dual in-line memory module) into the socket and
push it firmly down until it is fully seated. The socket latches are clipped on to the
edges of the memory module.
Step 5 After installing the memory modules, please close the heatsink cover back to the
chassis and fasten all screws.
2.3

Installing the Hard Disk Drive

The MVS900 Series offers a convenient drive bay for users to install HDD. The system offers
users two 2.5" Hard Disk Drives for installation. Please follow the steps:
Step 1 Turn off the system.
Step 2 Disconnect the power connector.
Step 3 Unscrew and remove the backplane of the HDD bay on the backside.
Step 4 Unscrew the thumbscrew and separate the HDD2 bracket from the HDD bay.
Step 5 Unscrew the HDD1 bracket and separate the HDD1 bracket from the HDD bay.
26




Hardware Installation

