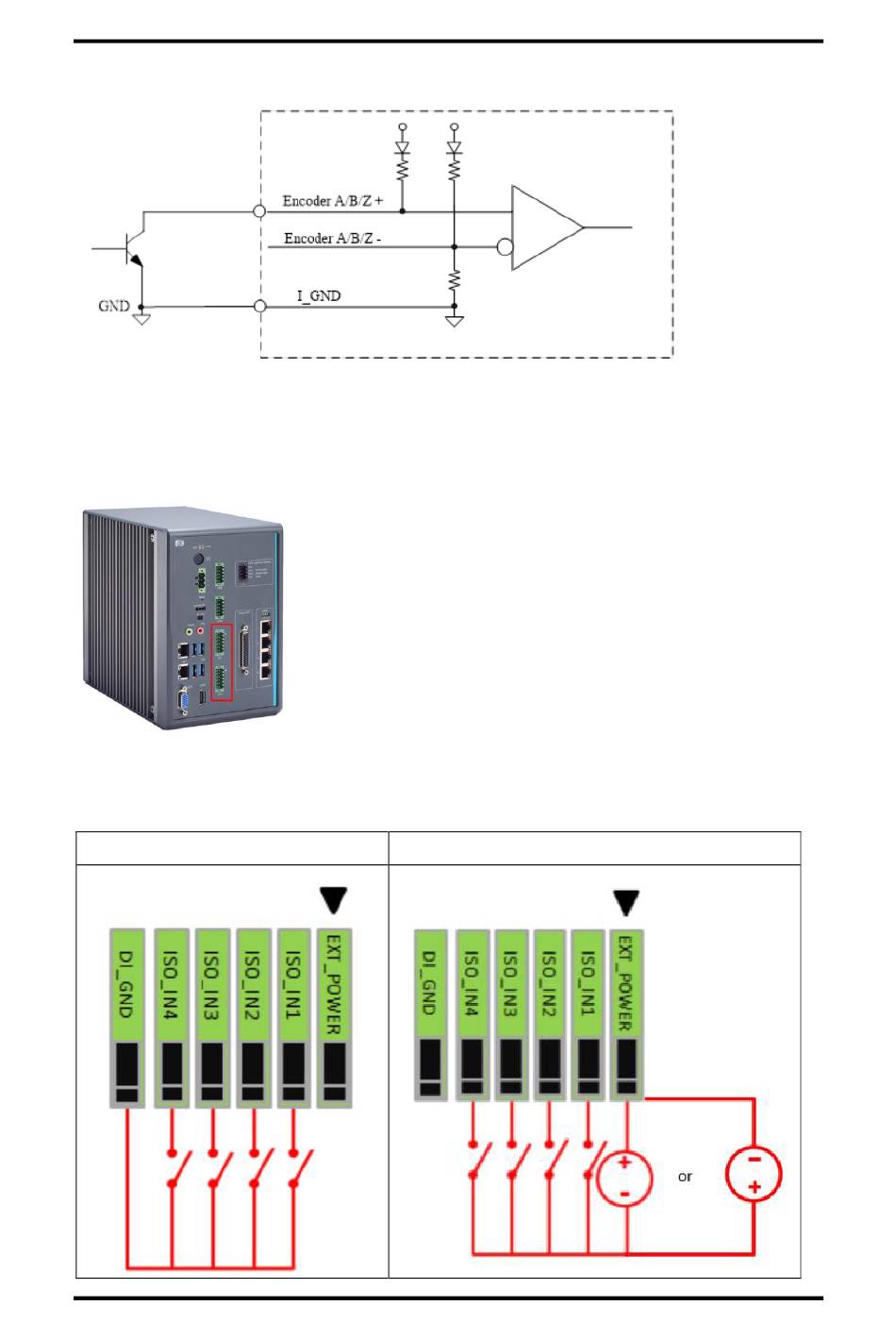

MVS900-511/512-FL
Open Collector Type:
3.2
I/O Connection
The system offers 8-in/8-out DIO ports with isolated 1.5KVDC as the red box of the figure
below. Refer to this section to connect any cables between the flexible I/O and other devices.
3.2.1
Isolated Digital Input
The figure shows how to connect between external input source and the system.
Each of the isolated digital input channels accepts 0~30 VDC with dry and wet contact.
Dry Contact Wiring
Wet Contact Wiring (Sink or Source)
38
I/O Connection
