Summary of Contents for AXIOMTEK mBOX600
- Page 1 Medical Embedded System User’s Manual...
-
Page 2: Disclaimers
Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd. -
Page 3: Safety Precautions
Safety Precautions Before getting started, please read the following important safety precautions. The mBOX600 does not come with an operating system which must be loaded first before installation of any software into the computer. Use a wrist grounding strap and place all electronic components in any static-shielded devices. - Page 4 13. Environmental Conditions 0 ºC to +40 ºC Temperature (C) Operation Relative Humidity (%) 10 to 90%RH Atmospheric Pressure (kPa) 106 to 80 kPa 0°C to +40°C Temperature (C) Storage / Transportation Relative Humidity (%) 10 to 90%RH Atmospheric Pressure (kPa) 106 to 80 kPa 14.
-
Page 5: Explanation Of Graphical Symbols
Explanation of Graphical Symbols Symbol Description Follow the national requirement to dispose unit. European Conformance US Conformance On ME EQUIPMENT "Follow instructions for use” ISO 15223-1 Indicates the medical device manufacturer IEC 60417-5031: Direct current. IEC 60417-5032: AC Stand-by Equipotentiality... -
Page 6: Intended User Profile
Intended User Profile Education: Medical Experts User group: Medical Professionals Knowledge base: User should possess medical professional knowledge CAUTION: Medical electrical equipment needs special precautions regarding electromagnetic compatibility (EMC) and needs to be installed and put into service according to the EMC information in the XXX sections of this document. - Page 7 Recommended separation distances between portable and mobile RF communications equipment and the A&D unit The A&D unit is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the A&D unit can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the A&D unit as recommended below, according to the maximum output power of the communications equipment.
- Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The A&D unit is intended for use in the electromagnetic environment specified below. The customer or the user of the A&D unit should assure that it is used in such an environment. Immunity Compliance IEC 60601 Electromagnetic...
- Page 9 Guidance and manufacturer’s declaration – electromagnetic immunity The A&D unit is intended for use in the electromagnetic environment specified below. The customer or the user of the A&D unit should assure that it is used in such an environment. Immunit IEC 60601 Compliance level Electromagnetic...
-
Page 10: Classifications
Classifications Equipment not suitable for use in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide. Mode of operation: Continuous. Supply CLASS I Power Adapter see “1.5 Packing List” for power adapter detail information. No Applied Part IPX0 Pollution degree of equipment: Pollution Degree 2 Operation altitude of equipment: 0-5000m... -
Page 11: General Cleaning Tips
General Cleaning Tips Please keep the following precautions in mind while understanding the details fully before and during any cleaning of the computer and any components within. A piece of dry cloth is ideal to clean the device. Be cautious of any tiny removable components when using a vacuum cleaner by the system. -
Page 12: Scrap Computer Recycling
Scrap Computer Recycling Please inform the nearest Axiomtek distributor as soon as possible for suitable solutions in case computers require maintenance or repair; or for recycling in case computers are out of order. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. -
Page 13: Table Of Contents
Quick Start ................... 7 COM Ports Setup ................. 7 2.2.1 COM Ports Pin Definition ................7 2.2.2 COM Ports Mode Selection ................. 7 Section 3 mBOX600 Medical Computer Cleaning and Disinfecting ..........9 mBOX600 Medical Computer Cleaning and Disinfecting ....9 xiii... -
Page 15: Introduction

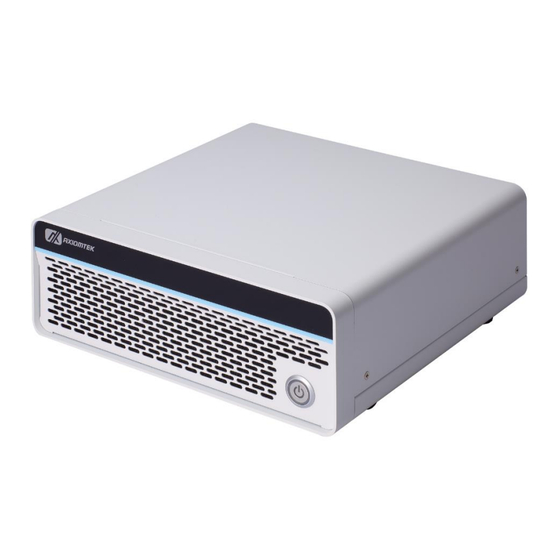

User’s Manual Section 1 Introduction This section contains general information and detailed specifications of the mBOX600. Section 1 includes the following sub-sections: ◼ General Descriptions ◼ System Specifications ◼ Dimensions ◼ I/O Outlets ◼ Packing List Please take a few moments to review the contents of this document to ensure that the setup and startup proceed smoothly. - Page 16 User’s Manual mBOX600 solely intended to be high-performance server system to collect, transfer, store, convert formats of data or results for general purpose in hospital environment without specific software to interpret or analyze clinical laboratory test results or other devices’ data or control other medical devices.
-
Page 17: System Specifications
User’s Manual System Specifications 1.2.1 ⚫ ◼ Intel® 9th/8th Gen Core™ i7/i5/i3 & Celeron® processor ⚫ Chipset ◼ QM370. ⚫ BIOS ◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS. ⚫ System Memory ◼ Two 260-pin SO-DIMM sockets. Supports DDR4-2666/2400 MHz, maximum up to 64 1.2.2... -
Page 18: System Specification
4 kg (8.82 lb) without package ⚫ Dimensions ◼ 250 mm (9.84") x 240 mm (9.44") x 90 mm (3.54") 1.2.4 Driver CD Content Please download system drivers and user’s manual from Axiomtek website. ⚫ Chipset ⚫ Ethernet ⚫ Graphic ®... -
Page 19: Dimensions
User’s Manual Dimensions The following diagrams show dimensions and outlines of the mBOX600. I/O Outlets The following figures show I/O outlets on the mBOX600. Introduction... -
Page 20: Packing List
User’s Manual Packing List The mBOX600 comes with the following bundle package: ⚫ mBOX600 system unit x1 ⚫ Medical grade 150W adapter x1 (FSP Technology Inc. Model FSP150M-KAA) ⚫ Power cord x1 Grounding reliability can only be achieved when the equipment is connected to an equivalent receptacle marked “Hospital Only”... -
Page 21: System Setup
User’s Manual Section 2 System Setup Quick Start Connect the adapter to the “DC Input Jack”. Please note that using a non-genuine adapter may pose a potential risk to the system. Press “Power On/Off”. The button will turn white. - Page 22 User’s Manual This page is intentionally left blank. System Setup...
-
Page 23: Mbox600 Medical Computer Cleaning And Disinfecting
Medical Computer Cleaning and Disinfecting mBOX600 Medical Computer Cleaning and Disinfecting During normal use of the mBOX600, the device may become dirty and should be regularly cleaned. Steps: Prepare cleaning fluid as below list. Wipe the mBOX600 with a clean antistatic cloth that has been moistened in the cleaning solution.
