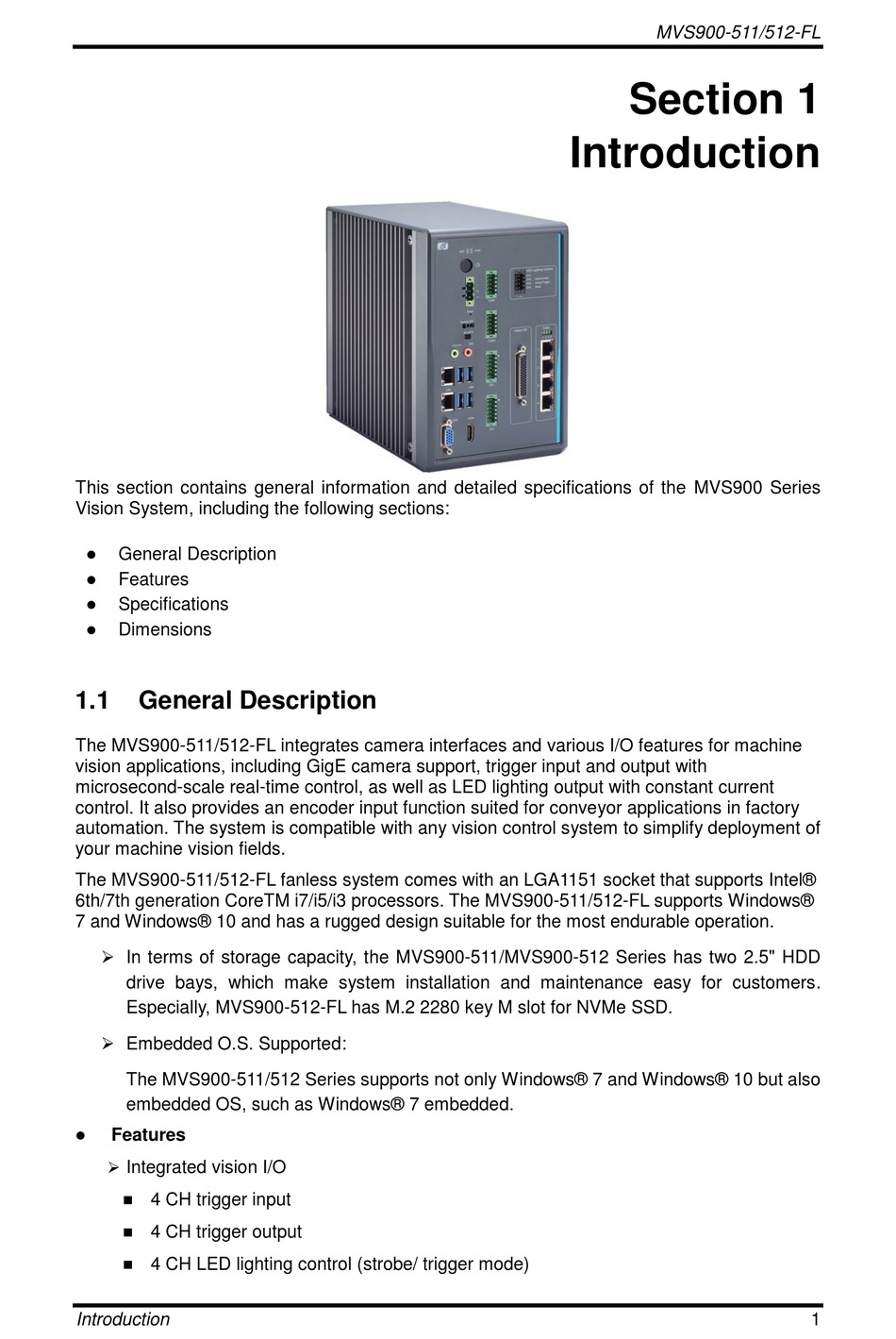

Section 1 Introduction; General Description - AXIOMTEK MVS900-511-FL Series User Manual

This section contains general information and detailed specifications of the MVS900 Series
Vision System, including the following sections:


General Description


Features
 Specifications
 Dimensions
1.1 General Description
The MVS900-511/512-FL integrates camera interfaces and various I/O features for machine
vision applications, including GigE camera support, trigger input and output with
microsecond-scale real-time control, as well as LED lighting output with constant current
control. It also provides an encoder input function suited for conveyor applications in factory
automation. The system is compatible with any vision control system to simplify deployment of
your machine vision fields.
The MVS900-511/512-FL fanless system comes with an LGA1151 socket that supports Intel®
6th/7th generation CoreTM i7/i5/i3 processors. The MVS900-511/512-FL supports Windows®
7 and Windows® 10 and has a rugged design suitable for the most endurable operation.
 In terms of storage capacity, the MVS900-511/MVS900-512 Series has two 2.5" HDD
drive bays, which make system installation and maintenance easy for customers.
Especially, MVS900-512-FL has M.2 2280 key M slot for NVMe SSD.
 Embedded O.S. Supported:
The MVS900-511/512 Series supports not only Windows® 7 and Windows® 10 but also
embedded OS, such as Windows® 7 embedded.
 Features

Integrated vision I/O
 4 CH trigger input

4 CH trigger output
 4 CH LED lighting control (strobe/ trigger mode)
