- Page 1 GOT5120T-834 All-in-One 12.1” XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900 onboard User’s Manual...
- Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.
-
Page 3: Safety Precautions
Disconnect the power cords from the GOT5120T-834 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the GOT5120T-834 Series is properly grounded. -
Page 4: Table Of Contents
Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Specifications ..................2 Dimensions ..................4 I/O Outlets .................... 6 Packing List ..................6 Chapter 2 Hardware and Installation ...... 7 CFast™... - Page 5 Save&Exit ................... 51 Chapter 4 Drivers Installation ......53 System ....................53 4.1.1 Win 7 ......................53 4.1.2 Win 8/8.x ....................54 Touch Screen ..................54 4.2.1 Specification ....................54 4.2.2 Driver Installation- Windows 7/8.x ............. 55 Embedded O.S................... 57 4.3.1 WES 7 &...
- Page 6 This page is intentionally left blank.
-
Page 7: Chapter 1 Introduction

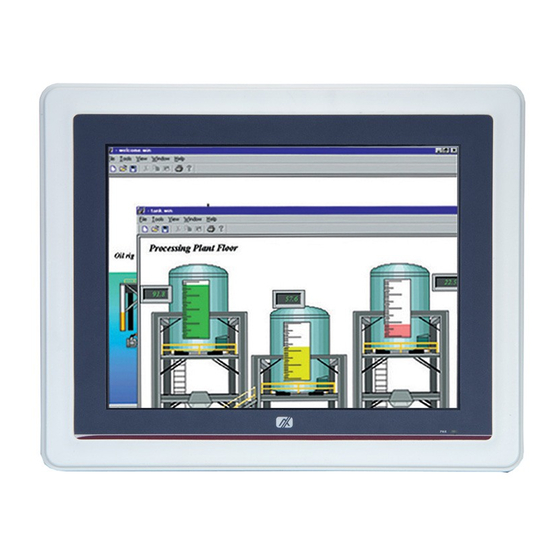

GOT5120T-834: 12.1” TFT XGA/SVGA Fanless Touch Panel Computer Reliable and Stable Design The GOT5120T-834 adopts a fanless cooling system and a CFast™ card, which makes it suitable for vibration environments. Embedded O.S. Supported The GOT5120T-834 not only supports Windows 7 and Windows 8.x, but also supports... -
Page 8: Specifications
1 x PCI Express Mini-card slot (supports mSATA, optional) Storage One CFast™ or mSATA One 2.5” SATA HDD Power connector GOT5120T-834-DC : 9VDC to 36VDC with phoenix power connector or GOT5120T-834-J: External 60W AC Adapter with screw type connector Introduction... -
Page 9: System Specification
GOT5120T-834 User’s Manual System Specification 12.1” XGA(1024x768) or SVGA(800x600) LCD with LED backlight 5 wired Resistive Touch Fanless Heat Dispensing Design Disk drive housing: One 2.5” SATA drive Net Weight 2.48 Kgs (5.46 lb) ... -
Page 10: Dimensions
GOT5120T-834 User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT5120T-834. Introduction... - Page 11 GOT5120T-834 User’s Manual Introduction...
-
Page 12: I/O Outlets
Wall-Mount Kit x1 Screws for HDD x4 Phoenix connector x 1 (for GOT5120T-834-DC) Power Adapter & power cord (for GOT5120T-834-J) If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction... -
Page 13: Hardware And Installation
Wireless LAN Card Power Input CFast™ card Installation The GOT5120T-834 provides one CF slot for users to install CFast™ card. Please refer to the following instructions for installation: Step 1 Turn off the system, and unplug the power cord. -
Page 14: Sbc87834 Jumpers And Connectors
GOT5120T-834 User’s Manual SBC87834 Jumpers and Connectors Component Side Hardware and Installation... - Page 15 GOT5120T-834 User’s Manual Solder Side Hardware and Installation...
-
Page 16: Jumper Settings
GOT5120T-834 User’s Manual 2.2.1 Jumper Settings Making the proper jumper settings configure the SBC87834 to match the needs of your application. The following table shows the default jumper settings for the onboard devices. ★ Default Setting Jumper Jumper Setting ★ Panel backlight control PWM mode... -
Page 17: Connectors
GOT5120T-834 User’s Manual 2.2.2 Connectors The connectors allow the CPU Board to connect with other parts of the system. Ensure that all connectors are in place and firmly attached. The following table lists the function of each connector on the SBC87834. - Page 18 GOT5120T-834 User’s Manual LVDS connector: CN1 CN1 Pin Assignment Pin Description Description LVDSA_DATAN0 LVDSB_DATAN2 LVDSA_DATAP0 LVDSB_DATAP2 DDC DATA DDC CLOCK LVDSA_DATAN1 LVDSA_DATAN3 LVDSB_DATAN3 LVDSA_DATAP1 LVDSB_DATAN0 LVDSA_DATAP3 LVDSB_DATAP3 LVDSB_DATAP0 LVDSA_DATAN2 LVDSA_CLKN LVDSB_CLKN LVDSA_DATAP2 LVDSB_DATAN1 LVDSA_CLKP LVDSB_CLKP LVDSB_DATAP1 Hardware and Installation...
- Page 19 GOT5120T-834 User’s Manual LVDS inverter connector: CN2 CN2 Pin Assignment Pin Description Pin Description Inverter ON-OFF +12V +12V Backlight control +12V TOUCH connector: CN3 CN3 Pin Assignment Description Sense Hardware and Installation...
- Page 20 GOT5120T-834 User’s Manual HDD power connector: CN4 CN9 Pin Assignment Pin Description +12V FRONT PANEL pin header: CN6 CN6 Pin Assignment Description Description + 5V Beep BUZZER Beep PWBTN RESET SATA LED +3.3V Hardware and Installation...
- Page 21 GOT5120T-834 User’s Manual SIM card connector: CN7 CN7 Pin Assignment Pin Description Description UIM PWR UIM RST UIM VPP UIM CLK UIM DATA Power connector: CN9 CN9 Pin Assignment Pin Description DCIN (9V -36V) DCIN (9V -36V) Hardware and Installation...
- Page 22 GOT5120T-834 User’s Manual Digital I/O pin header: CN10 CN10 Pin Assignment Pin Description Description GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO11 GPIO12 GPIO13 GPIO14 GPIO15 Speaker Out & MIC IN connector: CN11 CN11 Pin Assignment...
- Page 23 GOT5120T-834 User’s Manual VGA Cable Connector: CN12 CN12 Pin Assignment Signal Signal Green N.C. Blue N.C. DDC DATA N.C. GND . Horizontal Sync Vertical Sync DCC CLK N.C. USB CONNECTOR (reserved): CN14/CN20 CN14/CN20 Pin Assignment Pin Description Hardware and Installation...
- Page 24 GOT5120T-834 User’s Manual Audio Lin In connector: CN15 CN15 Pin Assignment Pin Description LINE IN L LIN IN R Power lamp connector: CN16 CN16 Pin Assignment Pin Description Description Power (+5V) Power button connector: CN17 CN17 Pin Assignment Pin Description...
- Page 25 GOT5120T-834 User’s Manual Touch function enable/disable & LED indicator connector: CN18 CN18 Pin Assignment Pin Description ON/OFF button Panel control Keypad connector: CN19 CN19 Pin Assignment Pin Description Panel ON/OFF Abnormal indicate LED Normal indicate LED Blacklight down Blacklight up...
- Page 26 GOT5120T-834 User’s Manual USB box header: USB1 USB1 Pin Assignment Pin Description Description USB- USB- USB+ USB+ Serial Port box header: COM3, COM4 COM3, COM4 Pin Assignment Pin Description Description Hardware and Installation...
-
Page 27: Ethernet
GOT5120T-834 User’s Manual Ethernet The GOT5120T-834 is equipped with two high performance Plug and Play Ethernet interfaces, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:... -
Page 28: Mountings - Panel/Wall/Desktop/Vesa
There are several mounting ways for the GOT5120T-834, Panel, Wall, Desktop and VESA mountings. 2.4.1 Panel Mounting The GOT5120T-834 is designed for panel mount application. A set of standard mounting kit are bundled with the system package that you can use it to mount the GOT5120T-834. Hardware and Installation... -
Page 29: Wall-Mounting
GOT5120T-834 User’s Manual 2.4.2 Wall-Mounting The GOT5120T-834 is designed for wall mounting application. Please refer to the following steps: Fix wall mount bracket on the back of the unit. 2.4.3 Desktop-Mounting The GOT5120T-834 is designed for desktop mounting application. Please refer to the following... - Page 30 GOT5120T-834 User’s Manual Step 2 Assemble the desktop stand to the chassis, and fix the screws. ： CAUTION USE RECOMMENDED/SUITABLE MOUNTING APPARATUS TO AVOID RISK OF INJURY. Hardware and Installation...
-
Page 31: Vesa-Arm Mounting
GOT5120T-834 User’s Manual 2.4.4 VESA-ARM Mounting ： CAUTION USE RECOMMENDED/SUITABLE MOUNTING APPARATUS TO AVOID RISK OF INJURY. Step 1 Find out the screws as marked on the back side of chassis. Step 2 Assemble the VESA-ARM to the back side of the chassis, and fix the screws. -
Page 32: Hdd Installation
GOT5120T-834 User’s Manual HDD Installation The GOT5120T-834 provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5” SATA HDD. Please follow the steps: Step 1 Unscrew 6 screws to remove the back cover. Screw the 2.5” HDD to the HDD bracket. - Page 33 GOT5120T-834 User’s Manual Step 3 Fix the HDD bracket into the system, and plug the data and power cable to HDD. Installation complete. Hardware and Installation...
-
Page 34: Dram Installation
GOT5120T-834 User’s Manual DRAM Installation The GOT5120T-834 provides one 204-pin DDR3L SODIMM socket that support system memory up to 8GB. Please follow steps below to install the memory modules: Step 1 Open the back cover and find out the DIMM socket on main board(SBC87834). - Page 35 GOT5120T-834 User’s Manual Step 3 Install the memory module into the socket and push it firmly down until it is fully seated. The socket latches are levered upwards and clipped on to the edges of the DIMM. Hardware and Installation...
-
Page 36: Mini Cards Card Installation
Mini cards Card Installation 2.7.1 Wireless LAN Card Installation The GOT5120T-834 provides two Mini card slots for user to install wireless LAN cards. You can choose either slot 1 or slot 2 to install the wireless LAN card and refer to the following... - Page 37 GOT5120T-834 User’s Manual Step 3 Find the built-in Antenna cable. Step 4 There are two connectors on wireless LAN card. One is MAIN, and the other is auxiliary. Connect antenna cable to MAIN connector on wireless LAN card. Hardware and Installation...
-
Page 38: Msata Card Installation
GOT5120T-834 User’s Manual 2.7.2 mSATA Card Installation The GOT5120T-834 provides one Mini card slot for user to install mSATA. Please choose the slot 2 when installing the mSATA card and refer to the following instructions and illustration: Step 1 Open the back cover and find out the mini-card slot on main board. -
Page 39: Power Input (Phoenix Type)
GOT5120T-834 User’s Manual Power Input (Phoenix type) GOT5120T-834 equips with a phoenix type power connector. It adopts 9VDC to 36VDC. Please follow the signs on power connector to connect DC power source. －:Power negative +: Power positive G: Safety ground NOTE The safety ground must be connected to ensure the unit working appropriately. - Page 40 GOT5120T-834 User’s Manual This page is intentionally left blank. Hardware and Installation...
-
Page 41: Ami Bios Setup Utility
GOT5120T-834 User’s Manual Chapter 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. -
Page 42: Main Menu
GOT5120T-834 User’s Manual Main Menu System Time/Date Use this option to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow>... -
Page 43: Advanced Menu
GOT5120T-834 User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ... - Page 44 GOT5120T-834 User’s Manual ACPI Sleep State Allow you to select the Advanced Configuration and Power Interface (ACPI) state to be used for system suspend. Here are the options for your selection, Suspend disable and S3 (Suspend to RAM). AMI BIOS Setup Utility...
- Page 45 GOT5120T-834 User’s Manual NCT6106D Super IO Configuration Use this screen to select options for the Super IO Configuration, and change the value of the selected option Serial Port 1-4 configuration Serial port: This option used to enable or disable the serial port.
- Page 46 GOT5120T-834 User’s Manual Serial type This option used to select RS232/422/485 function. AMI BIOS Setup Utility...
- Page 47 GOT5120T-834 User’s Manual NCT6106D H/W Monitor This screen shows the Hardware Health Configuration. AMI BIOS Setup Utility...
- Page 48 GOT5120T-834 User’s Manual CPU Configuration This screen shows the CPU Configuration and Intel virtualization technology enable/disable selected AMI BIOS Setup Utility...
- Page 49 GOT5120T-834 User’s Manual IDE Configuration You can use this screen to select options for the SATA Configuration, and change the value of the selected option. SATA Mode Use this item to choose the SATA operation mode. Here are the options for your selection, IDE Mode, AHCI Mode.
- Page 50 GOT5120T-834 User’s Manual USB Configuration You can use this screen to select options for the USB Configuration, If USB3.0 function used, XHCI Mode must enable and EHCI must disable. **XHCI default is Auto. AMI BIOS Setup Utility...
- Page 51 GOT5120T-834 User’s Manual LPSS & SCC Configuration You can select any of the items in the frame of the screen to change the OS, the default setting is Win 7. Please be informed to select the Windows 8.x when installing Win 8 or Win 8.1.
- Page 52 GOT5120T-834 User’s Manual If using the Android OS, please refer to https://01.org/android-ia. Security Configuration The Advanced menu allows users to update the TXE firmware. AMI BIOS Setup Utility...
-
Page 53: Chipset Menu
GOT5120T-834 User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. AMI BIOS Setup Utility... - Page 54 GOT5120T-834 User’s Manual North Bridge This screen shows the North Bridge memory information. South Bridge AMI BIOS Setup Utility...
-
Page 55: Security
GOT5120T-834 User’s Manual Security AMI BIOS Setup Utility... -
Page 56: Boot Menu
GOT5120T-834 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: Setup Prompt Timeout Set the Timeout for wait press key to enter Setup Menu. -
Page 57: Save&Exit
GOT5120T-834 User’s Manual Save&Exit AMI BIOS Setup Utility... - Page 58 GOT5120T-834 User’s Manual This page is intentionally left blank. AMI BIOS Setup Utility...
-
Page 59: Chapter 4 Drivers Installation
GOT5120T-834 User’s Manual Chapter 4 Drivers Installation System GOT5120T-834 supports Windows 7, Windows 8/8.1 ,WES 7 and WE8S. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. 4.1.1 Win 7 Insert Driver CD and select the “\Drivers”. -
Page 60: Win 8/8.X
4.1.2 Win 8/8.x Insert Driver CD and select the “\Drivers”. Select all files and follow the installing procedure. Touch Screen The GOT5120T-834 uses the 5-wire analog resistive. There are the specification and driver installation which are listed below. 4.2.1 Specification Touch Screen... -
Page 61: Driver Installation- Windows 7/8.X
GOT5120T-834 User’s Manual 4.2.2 Driver Installation- Windows 7/8.x The GOT5120T-834 provides a touch screen driver that users can install it under the operating system Windows 7/8.x. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation. - Page 62 GOT5120T-834 User’s Manual Select the “Standard Calibrate” tab. Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Drivers Installation...
-
Page 63: Embedded O.s
GOT5120T-834 User’s Manual Embedded O.S. The GOT5120T-834 provides the WES 7 and WE8S Embedded. The O.S. is supported devices which are listed below. 4.3.1 WES 7 & WE8S Here are supported onboard devices: Onboard Multi I/O SATA HDD ... - Page 64 GOT5120T-834 User’s Manual This page is intentionally left blank. Drivers Installation...
-
Page 65: Appendix A Watchdog Timer
GOT5120T-834 User’s Manual Appendix A Watchdog Timer About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs. -
Page 66: Wdt Sample Program
GOT5120T-834 User’s Manual WDT Sample Program Enable WDT 1.Enable configuration -O 2E 87 -O 2E 87 2. Select Logic device: -O 2E 07 -O 2F 08 3. WDT Device Enable -O 2E 30 -O 2F 01 4. Set timer unit -O 2E F0 -O 2F 00 ... - Page 67 GOT5120T-834 User’s Manual Watchdog Timer...
- Page 68 GOT5120T-834 User’s Manual Watchdog Timer...
-
Page 69: Appendix B Backlight Control
Backlight Control About Backlight Control Axiomtek offers the backlight control tool under Windows 7 and Windows 8, people can adjust the panel backlight depending on your personal taste and the amount of ambient light in the room after installing the backlight control tool. - Page 70 GOT5120T-834 User’s Manual Backlight Control...
- Page 71 GOT5120T-834 User’s Manual Follow the installing procedures and press “Close”. Step 2 Backlight Control...
- Page 72 GOT5120T-834 User’s Manual Backlight Control...
- Page 73 GOT5120T-834 User’s Manual Backlight Control...
- Page 74 GOT5120T-834 User’s Manual Backlight Control...
- Page 75 GOT5120T-834 User’s Manual Backlight Control...
- Page 76 GOT5120T-834 User’s Manual Step 3 System auto reboot, installation completed. Select “△” icon then find out the “Axiomtek” to ensure the brightness driver Step 4 is installed appropriately. Step 5 How to use the brightness Control There are two ways to adjust the display brightness.
- Page 77 GOT5120T-834 User’s Manual Click the “Brightness” to adjust the display brightness with the bar. Step 5.1 (For Windows 8.x only.) Backlight Control...
- Page 78 GOT5120T-834 User’s Manual Step 5.2. Click the “Control Panel” then select “Power Options” to adjust the display brightness. Backlight Control...
-
Page 79: Removed Brightness Control Tool
GOT5120T-834 User’s Manual Removed Brightness Control Tool Step 1 According to the OS version, please insert the driver CD and follow the path to select the proper driver, “\Driver\Win8.x\Step 8 – Setup” or \Driver\Win7\Step 8 - Setup”. Backlight Control... - Page 80 GOT5120T-834 User’s Manual Follow the procedures and press “Close”. Step 2 Backlight Control...
- Page 81 GOT5120T-834 User’s Manual Backlight Control...
- Page 82 GOT5120T-834 User’s Manual Step 3 System auto reboot, uninstallation completed. Backlight Control...
