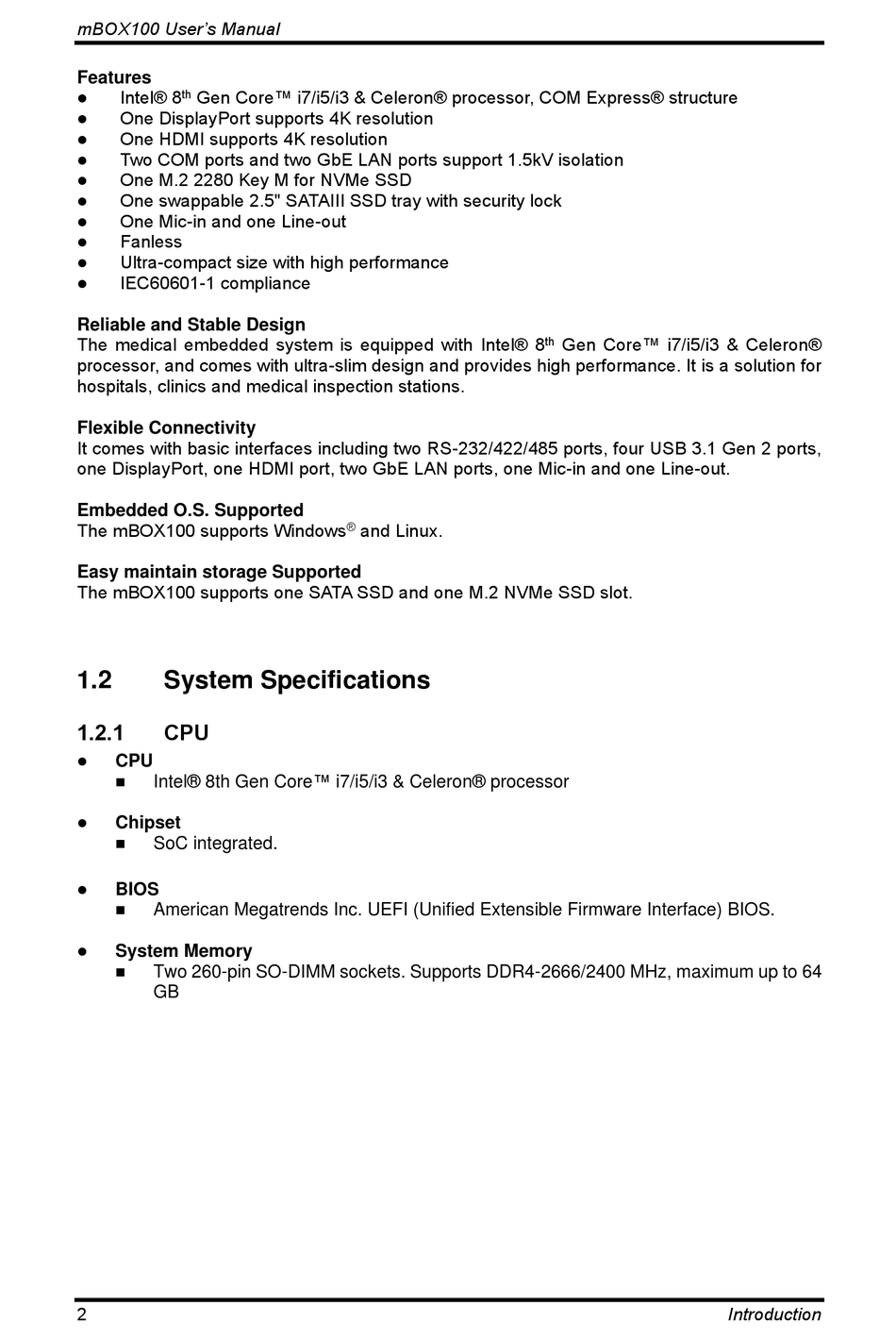

mBOX100 User's Manual
Features
Intel® 8 th Gen Core™ i7/i5/i3 & Celeron® processor, COM Express® structure
⚫
One DisplayPort supports 4K resolution
⚫
One HDMI supports 4K resolution
⚫
Two COM ports and two GbE LAN ports support 1.5kV isolation
⚫
One M.2 2280 Key M for NVMe SSD
⚫
One swappable 2.5" SATAIII SSD tray with security lock
⚫
One Mic-in and one Line-out
⚫
Fanless
⚫
Ultra-compact size with high performance
⚫
IEC60601-1 compliance
⚫
Reliable and Stable Design
The medical embedded system is equipped with Intel® 8
processor, and comes with ultra-slim design and provides high performance. It is a solution for
hospitals, clinics and medical inspection stations.
Flexible Connectivity
It comes with basic interfaces including two RS-232/422/485 ports, four USB 3.1 Gen 2 ports,
one DisplayPort, one HDMI port, two GbE LAN ports, one Mic-in and one Line-out.
Embedded O.S. Supported
The mBOX100 supports Windows
Easy maintain storage Supported
The mBOX100 supports one SATA SSD and one M.2 NVMe SSD slot.
1.2

System Specifications

1.2.1

CPU

⚫ CPU
◼ Intel® 8th Gen Core™ i7/i5/i3 & Celeron® processor
⚫ Chipset
◼ SoC integrated.
⚫ BIOS
◼
American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
⚫ System Memory
◼ Two 260-pin SO-DIMM sockets. Supports DDR4-2666/2400 MHz, maximum up to 64
GB
2
and Linux.
®
th Gen Core™ i7/i5/i3 & Celeron®
Introduction
