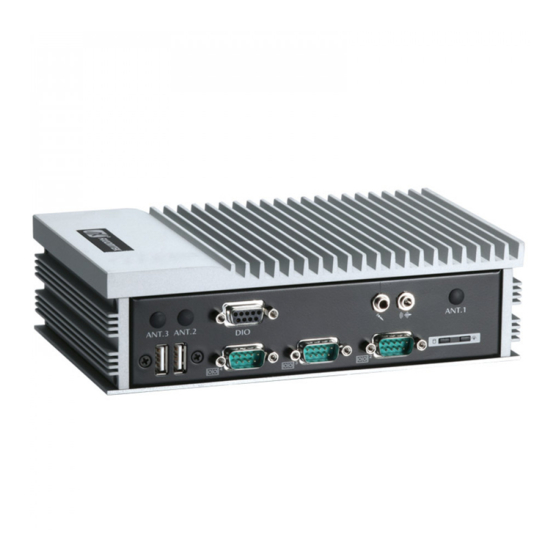

Embedded System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eBOX620-841-FL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK eBOX620-841-FL Series

Summary of Contents for AXIOMTEK eBOX620-841-FL Series

  • Page 1 Series Embedded System User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update any information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any forms or by any means, electronic, mechanical, photocopying, recording, among others, without prior written permissions of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The eBOX620-841-FL does not come with an operating system which must be loaded first before installation of any software into the computer. Be sure to ground yourself to prevent static charge when installing any internal components.

  • Page 4: Classification

    Classification Degree of production against electric shock: not classified Degree of protection against ingress of water: IP40 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide. Mode of operation: Continuous...

  • Page 5: General Cleaning Tips

    General Cleaning Tips Please keep the following precautions in mind while understanding the details fully before and during any cleaning of the computer and any components within. A piece of dry cloth is ideal to clean the device. Be cautious of any tiny removable components when using a vacuum cleaner to absorb dirt on the floor.

  • Page 6: Scrap Computer Recycling

    Scrap Computer Recycling Please inform the nearest Axiomtek distributor as soon as possible for suitable solutions in case computers require maintenance or repair; or for recycling in case computers are out of order. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd.

  • Page 7: Table Of Contents

    Table of Contents Disclaimers ......................ii Safety Precautions ....................iii Classification ......................iv General Cleaning Tips .................... v Scrap Computer Recycling ..................vi CHAPTER 1 INTRODUCTION ................ 1 General Description ................1 System Specifications ................ 2 1.2.1 CPU ........................2 1.2.2 I/O System ......................
  • Page 8 3.3.7 USB Connector ....................32 3.3.8 ATX Power On/OFF Button ................32 3.3.9 Audio Connector ..................... 32 3.3.10 Digital I/O Connector ..................33 3.3.11 SATA Connector ..................... 33 3.3.12 SATA Power Connector.................. 33 3.3.13 CFast™ slot ..................... 34 3.3.14 Half-Size PCI Express Mini card Slot (SCN1) ..........35 3.3.15 Full-Size PCI Express Mini Card Slot (SCN2) ..........

  • Page 9: Chapter 1 Introduction

    Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the eBOX620-841-FL. The Chapter 1 includes the following sections:  General Description  System Specification  Dimensions  I/O Outlets  Packing List ...

  • Page 10: System Specifications

    Series User’s Manual System Specifications 1.2.1 CPU  ®  Intel Atom quad core E3845 1.91GHz.  BIOS  American Megatrends Inc. UEFI BIOS. (Unified Extensible Firmware Interface)  16Mbit SPI Flash, DMI, Plug and Play.  PXE Ethernet Boot ROM.

  • Page 11: Driver Cd Content

    Series User’s Manual 1.2.4 Driver CD Content  Driver  Audio  Chipset  Ethernet  Graphic   Manual  User Manual  Quick Manual NOTE: All specifications and images are subject to change without notice. Introduction...

  • Page 12: Dimensions

    Series User’s Manual Dimensions The following diagrams show you dimensions and outlines of the eBOX620-841-FL. 1.3.1 System Dimension Introduction...

  • Page 13: Wall Mount Bracket Dimension

    Series User’s Manual 1.3.2 Wall mount Bracket Dimension Introduction...

  • Page 14: I/O Outlets

    Series User’s Manual I/O Outlets The following figures show you I/O outlets on front view of the eBOX620-841-FL. Front View  Front View drawing  Introduction...
  • Page 15 Series User’s Manual  Rear View  Rear View drawing Introduction...

  • Page 16: Packing List

    2.5” SATA Storage (optional)  CFast™ / mSATA card (optional)  DDR3 SODIMM (optional) If you cannot find this package or any items are missing, please contact Axiomtek distributors immediately. Model List Fanless embedded system with Intel ® ATOM® E3845 eBOX620-841-FL-E3845-1.91G-US single chip design 1.91GHz quad core...

  • Page 17: Chapter 2 Hardware Installation

    Series User’s Manual CHAPTER 2 HARDWARE INSTALLATION The eBOX620-841-FL is convenient for your various hardware configurations, such as Memory Module, HDD (Hard Disk Drive), SSD (Solid State Drive) , mSATA and CFast card. The chapter 2 will show you how to install the hardware.
  • Page 18 Series User’s Manual Step 5 Locate the memory module, insert the gold colored contact into the socket. Step 6 Push the module down, until it is firmly seated by locking two latches on the sides. Step 7 Fasten screws of HDD bracket.

  • Page 19: Installing The 2.5" Sata Hdd/Ssd

    Series User’s Manual Step 8 Close the cover to the chassis, and fasten all screws. Installing the 2.5” SATA HDD/SSD Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system upside down to locate screws at the bottom, loosen screws.
  • Page 20 Series User’s Manual Step 4 Remove the HDD bracket. Step 5 Assembly the HDD bracket together with the SATA HDD . Step 6 Fasten total four screws. Hardware Installation...
  • Page 21 Series User’s Manual Step 7 Connect SATA cable and power cable to SATA HDD. Step 8 Fasten screws of HDD bracket. Step 9 Close the cover to the chassis and fasten all screws to finish installation. Hardware Installation...

  • Page 22: Installing The Cfast Card

    Series User’s Manual Installing the CFast Card Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system upside down to locate screws at the Bottom, loosen screws. Step 3 Loosen screws to remove the CFast cover.

  • Page 23: Installing The Express Mini Card

    Series User’s Manual Step 7 Close the cover to the chassis, and fasten all screws. Installing the Express Mini Card Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system upside down to locate screws at the Bottom, loosen screws.

  • Page 24: Installing The Wall Mount (Optional)

    Series User’s Manual Step 4 Slide Mini card into Mini Card slot with caution and Fasten screw of Express Mini Card. Step 5 Assembly the Top Cover back and fasten all screws to finish installation. Installing the Wall Mount (Optional)
  • Page 25 Series User’s Manual Step 2 Loose the screw of four footpads at the bottom of eBOX620-841-FL and remove footpad. Step 3 Fix the wall mount to the correct location, and fasten all screws. Hardware Installation...

  • Page 26: Installing The Vesa Mount (Optional)

    Series User’s Manual Installing the VESA Mount (optional) The eBOX620-841-FL provides VESA Mount that customers can install as below: Step 1 Prepare VESA Mount assembling components (screws and VESA mount bracket) ready. Step 2 Loose the screw of four footpads at the bottom of eBOX620-841-FL, and remove footpad.
  • Page 27 Series User’s Manual Step 3 Decide correct mounting direction.eBOX620-841-FL supports both 100x100mm and 75x75mm VESA mount. The 100x100mm type has special direction. 100x100mm 75x75mm Step 4 Fix the VESA mount to the correct location, and fast en all screws.

  • Page 28: Installing The Din-Rail Mount (Optional)

    Series User’s Manual Installing the Din-Rail Mount (optional) The eBOX620-841-FL provides Din-Rail Mount that customers can install as below: Step 1 Prepare Din-Rail Mount assembling components (screws, Din-rail and VESA mount bracket) ready. Step 2 Loose the screw of four footpads at the bottom of eBOX620-841-FL and remove footpad.
  • Page 29 Series User’s Manual Step 4 Fix the Din-rail mount bracket to the correct location, and fasten all screws. Hardware Installation...
  • Page 30 Series User’s Manual This page is intentionally left blank. Hardware Installation...

  • Page 31: Chapter 3 Jumper Setting & Connector

    Series User’s Manual CHAPTER 3 JUMPER SETTING & CONNECTOR Proper jumper settings configure the eBOX620-841-FL to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively. SBC layout...
  • Page 32 Series User’s Manual NOTE: We strongly recommended that you should not modify any unmentioned jumper setting without Axiomtek FAE’s instruction. Any modification without instruction might cause system to become damage. Jumper Setting & Connector...

  • Page 33: Jumper Setting Summary

    Series User’s Manual Jumper Setting Summary Proper jumper settings configure the eBOX620-84-FL to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively. Jumper Description Jumper Setting Restore BIOS Optimal Defaults...

  • Page 34: Com4 Data/Power Selection (Jp7)

    Series User’s Manual 3.2.2 COM4 Data/Power Selection (JP7) The COM4 port has +5V level power capability on DCD and +12V level on RI by setting this jumper. Function Setting Power: Set CN11 pin 11 to +5V level 1-3 close...

  • Page 35: Com2 Data/Power Selection (Jp11)

    Series User’s Manual 3.2.5 COM2 Data/Power Selection (JP11) The COM2 port has +5V level power capability on DCD and +12V level on RI by setting this jumper. When this port is set to +5V or +12V level, please make sure its communication mode is RS-232.

  • Page 36: Connectors

    Series User’s Manual Connectors Connectors connect the board with other parts of the system. Loose or improper connection might cause problems. Make sure all connectors are properl y and firmly connected. Here is a summary table shows you all connectors and button on the eBOX620-841-FL Series.

  • Page 37: Ac-Dc Jack Power In Connector

    Series User’s Manual 3.3.1 AC-DC Jack Power In Connector The system supports a DC12V DC-in Jack connector for system power input. Connect it to the power AC-DC 60W Adapter Signal +12V 3.3.2 COM1~COM2 Serial Port Connector The system has four serial ports. COM1~COM2 are RS-232/422/485 ports.

  • Page 38: Com3~Com4 Serial Port Connector

    Series User’s Manual 3.3.3 COM3~COM4 Serial Port Connector The system has four serial ports. COM3~COM4 are RS-232 ports. Description DCD, Data Carrier Detect COM3 RXD, Receive Data TXD, Transmit Data DTR, Data Terminal Ready GND, Ground DSR, Data Set Ready...

  • Page 39: Hdmi Connector

    Series User’s Manual 3.3.5 HDMI Connector The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of transmitting high-definition video and high-resolution audio over a single cable. Its interface is available through connector CN10. Signal Signal...

  • Page 40: Usb Connector

    Series User’s Manual 3.3.7 USB Connector The Universal Serial Bus connectors are compliant with USB 2.0 (480Mbps), and ideally for installing USB peripherals such as keyboard, mouse, scanner, etc. Pin Signal USB Port 0 Signal USB Port 1 USB VCC...

  • Page 41: Digital I/O Connector

    Series User’s Manual 3.3.10 Digital I/O Connector The onboard digital I/O has 8 bits (DIO0~7). Each bit can be set to function as input or output by software programming. The BIOS default settings are 3 inputs and 5 outputs...

  • Page 42: Cfast™ Slot

    Series User’s Manual 3.3.13 CFast™ slot The board is equipped with a CFast socket on the bottom side to support a CFast card which is based on the SATA bus. The socket is specially designed to avoid incorrect installation of the CFast card.

  • Page 43: Half-Size Pci Express Mini Card Slot (Scn1)

    Series User’s Manual 3.3.14 Half-Size PCI Express Mini card Slot (SCN1) The SCN1 is a half-size PCI-Express Mini Card connector. It supports the PCI- Express Mini Cards which are applied to either PCI-Express x1 or USB. It complies with PCI-Express Mini Card Spec. V1.2.

  • Page 44: Full-Size Pci Express Mini Card Slot (Scn2)

    Series User’s Manual 3.3.15 Full-Size PCI Express Mini Card Slot (SCN2) This is a PCI-Express Mini Card connector on the bottom side applying to either PCI- Express or USB 2.0 or SATA (mSATA). It complies with PCI-Express Mini Card Spec.

  • Page 45: Sim Card Slot (Scn3)

    Series User’s Manual 3.3.16 SIM Card Slot (SCN3) This board has SCN3 socket on the bottom side for inserting SIM Card. In order to work properly, the SIM Card must be used together with 3G module which is inserted to SCN1 or SCN2. It is mainly used in 3G wireless network application.
  • Page 46 Series User’s Manual This page is intentionally left blank. Jumper Setting & Connector...

  • Page 47: Chapter 4 Bios Setup Utility

    Series User’s Manual CHAPTER 4 BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del> key immediately.

  • Page 48: Main Menu

    Series User’s Manual Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 49: Advanced Menu

    Series User’s Manual Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 50 Series User’s Manual  ACPI Settings ACPI Sleep State When the sleep button is pressed, the system will be in the ACPI sleep state. The default is S3 (Suspend to RAM). BIOS Setup Utility...
  • Page 51 Series User’s Manual  NCT6106D Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 52 Series User’s Manual  Serial Port 1 (COM1) Configuration Serial Port Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for interrupt request address is IRQ4. COM Port Type Use this option to set RS-232/RS-422/RS-485 mode.
  • Page 53 Series User’s Manual  Serial Port 2 (COM2) Configuration Serial Port Enable or disable serial port 2. The optimal setting for base I/O address is 2F8h and for interrupt request address is IRQ3. COM Port Type Use this option to set RS-232/RS-422/RS-485 mode.
  • Page 54 Series User’s Manual  NCT6106D HW Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fan speed in RPM and system voltages (VCORE, +3.3V, +12V and +5V). BIOS Setup Utility...
  • Page 55 Series User’s Manual  CPU Configuration This screen shows the CPU Configuration. Socket 0 CPU Information This item is for socket specific CPU information . Intel Virtualization Technology Allow a hardware platform to run multiple operating systems separately and simultaneously, enabling one system to virtually function as several systems.
  • Page 56 Series User’s Manual  IDE Configuration In the IDE Configuration menu, you can see the currently installed hardware in the SATA ports. During system boot up, the BIOS automatically detects the presence of SATA devices. Serial-ATA (SATA) Enable or disable the SATA Controller feature. The default is Enabled.
  • Page 57 Series User’s Manual Serial-ATA Port 1 Enable or disable the onboard SATA port 1. SATA Switch This option appears only after SATA Port 1 is enabled. The default is CFast. If you intend to insert mSATA card to SCN2, please change setting to mSATA.
  • Page 58 Series User’s Manual  Trusted Computing This screen provides function for specifying the TPM settings. Security Device Support Enable or disable BIOS support for security device. The default setting is Disabled. TPM State Once the Security Device Support is Enabled, TPM can be used by the operating system.
  • Page 59 Series User’s Manual  USB Configuration USB Devices Display all detected USB devices. Legacy USB Support Use this item to enable or disable support for USB device on legacy operating system. The default setting is Enabled. Auto option disables legacy support if no USB devices are connected.

  • Page 60: Chipset Menu

    Series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► North Bridge ►...
  • Page 61 Series User’s Manual  North Bridge BIOS Setup Utility...
  • Page 62 Series User’s Manual  South Bridge This screen allows users to configure parameters of South Bridge chipset. Audio Controller Control detection of the Azalia device. Disabled - Azalia will be unconditionally disabled. Enabled - Azalia will be unconditionally enabled.

  • Page 63: Boot Menu

    Series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock.

  • Page 64: Security Menu

    Series User’s Manual Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled). User Password This item indicates whether an user password has been set (installed or uninstalled).

  • Page 65: Save & Exit Menu

    Series User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 66 Series User’s Manual Save Changes When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes. Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration.

  • Page 67: Appendix Awatchdog Timer

    Series User’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer After the system stops working for a while, it can be auto-reset by the watchdog timer. The integrated watchdog timer can be set up in the system reset mode by program.
  • Page 68 Series User’s Manual Disable WDT  Enable configuration: O 2E 87 ; Un-lock super I/O O 2E 87  Select logic device: O 2E 07 O 2F 08  WDT device disable: O 2E 30 O 2F 00 Watchdog Timer...

  • Page 69: Appendix Bdigital I/O

    Series User’s Manual APPENDIX B DIGITAL I/O About Digital I/O The onboard digital I/O has 8 bits (DIO0~7). Each bit can be set to function as input or output by software programming. In default, all pins are pulled high with +5V level (according to main power).
  • Page 70 Series User’s Manual Digital Input: ; Read digital input data O 2E E9 i 2F ; FF: Digital input data is high (default state) Digital I/O...
