Mount The Smartrax Valve - Raven SmarTrax Installation Manual

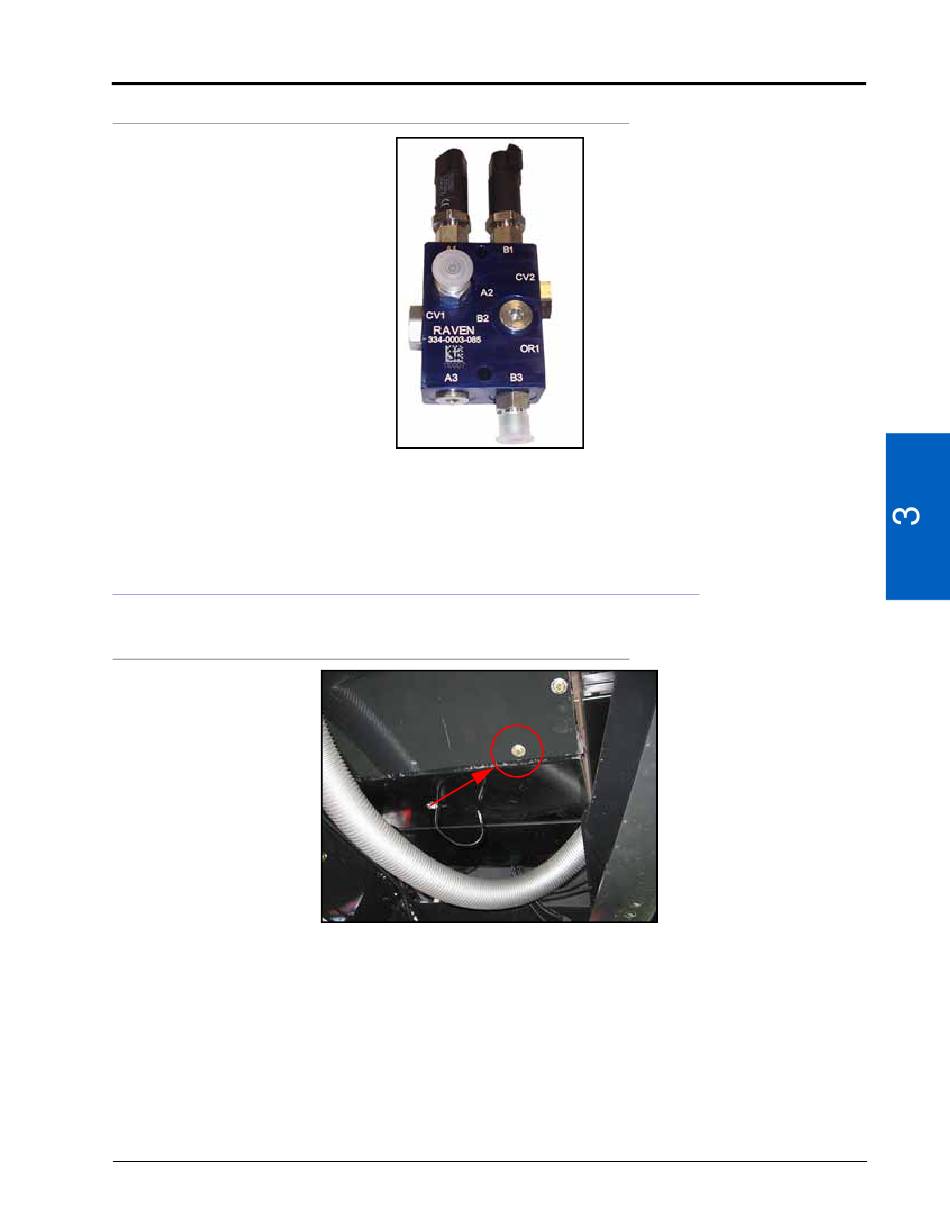

FIGURE 2. Fittings Installed on the Flow Switch
1. Install a -6 ORFS (M) to -6 SAE O-ring (M) straight adapter fitting (P/N 333-0012-084) in Ports A2 and B3 of the
flow switch (P/N 334-003-085).
2. Install the pressure transducers in Ports A1 and B1 of the flow switch.

MOUNT THE SMARTRAX VALVE

FIGURE 3. New Air Cleaner Hose Mounting Clamp Location
1. Remove the air cleaner hose from the mounting clamp.
2. Remove clamp from the current mounting location.
3. Install the mounting clamp on the middle bolt to the right of the factory-installed location as shown in Figure 3
above.
4. Remove the bolts used to secure the machine's radar bracket.
NOTE: The radar bracket is located beneath the cab, beside the step.
