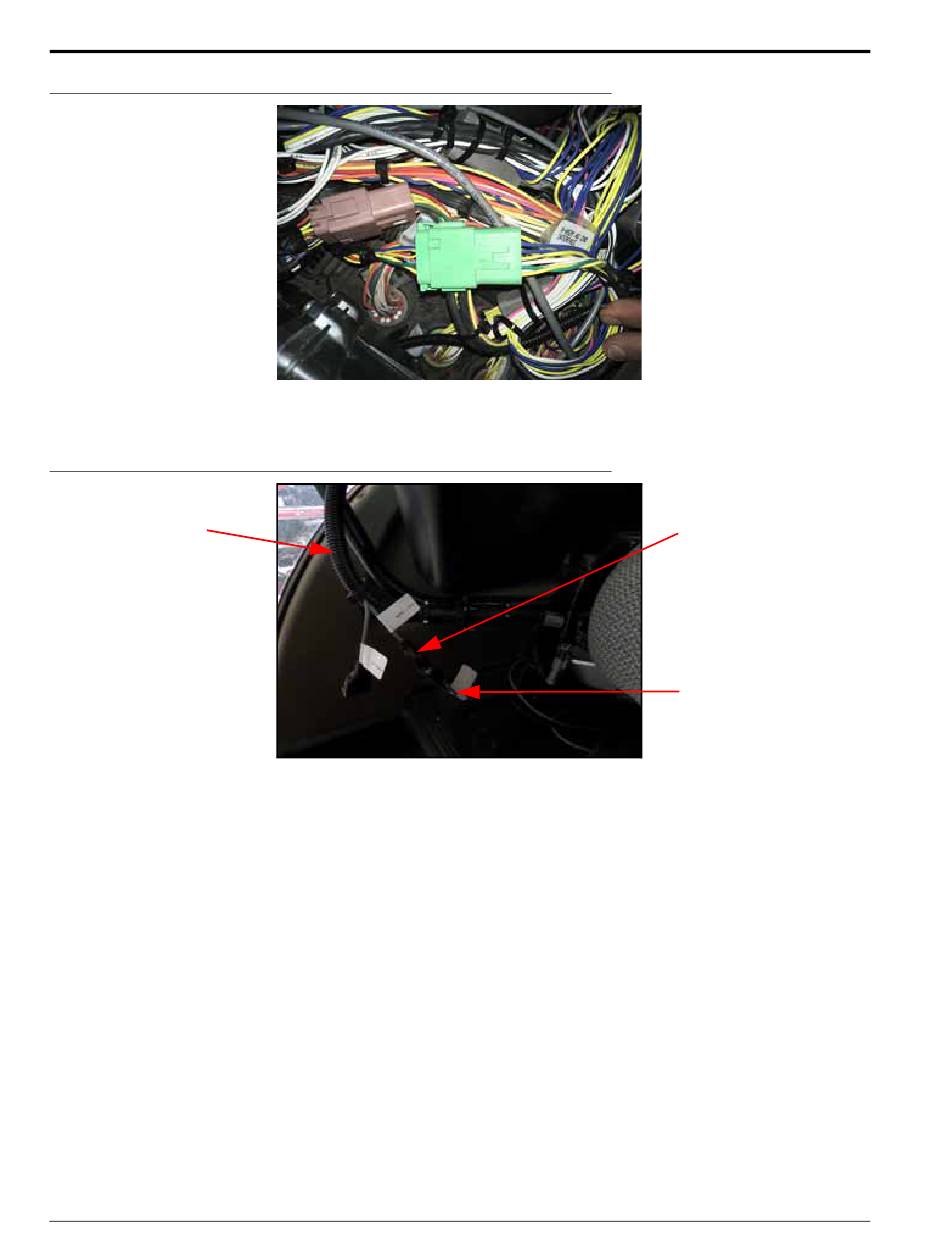

FIGURE 6. CAN Connector
3. Connect the node cable's CAN connector to the CAN adapter cable (P/N 115-4001-252).
FIGURE 7. DGPS OUT Connected to Console Receiver Connection
Console
Cable
4. Locate and disconnect the machine's green 12-pin CAN connection under the fuse panel.
5. Install the CAN adapter between the machine's green 12-pin CAN connection.
6. Install the CAN adapter between the machine's green 12-pin CAN connection.
7. Route and connect the DGPS OUT connector to the console's DGPS connector.
8. Connect the DGPS connector to the GPS receiver cable.
26 SmarTrax, Case IH Patriot 2250, Non-Steer Ready, MY17 and Newer Installation Manual
Console Receiver
DGPS Connection
DGPS OUT (Node
Harness Connection)
